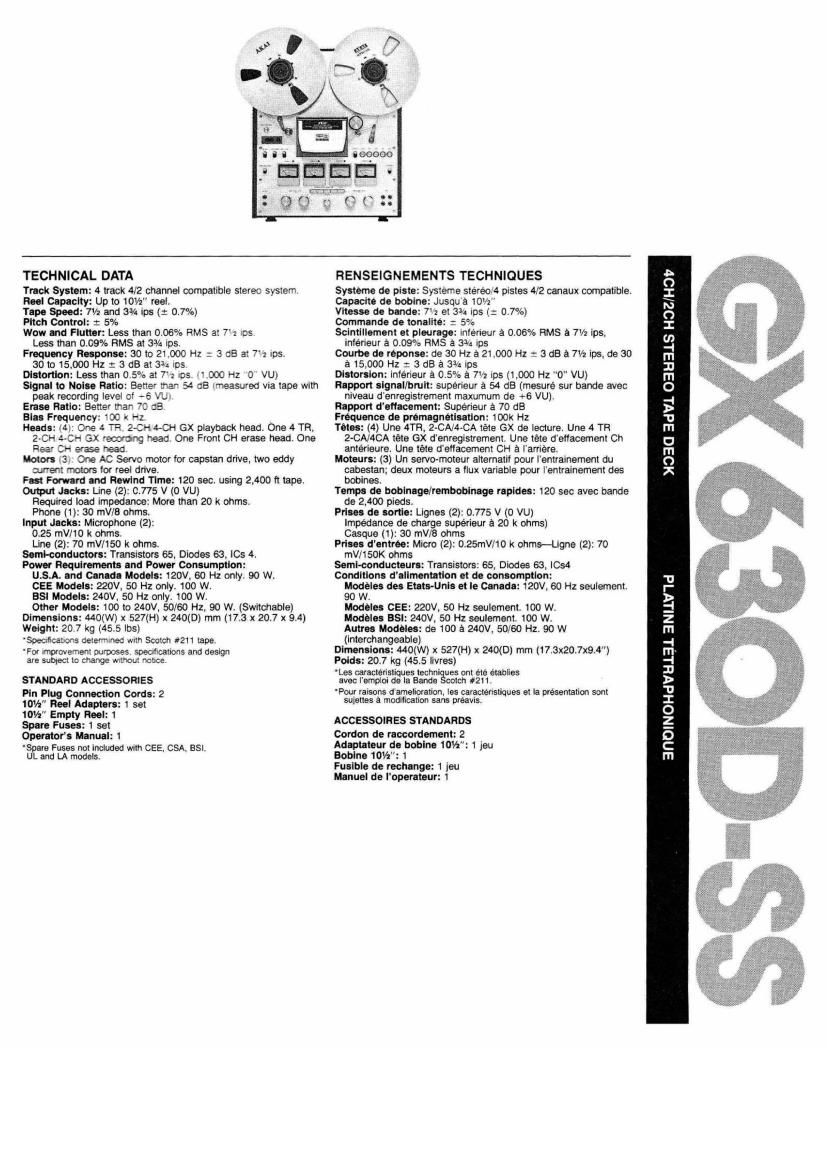

Akai GX 630 DSS Brochure 2

This is the 1 pages manual for Akai GX 630 DSS Brochure 2.
Read or download the pdf for free. If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.

Page: 1 / 1
left
Akai GX 630 DSS Brochure 2

Extracted text from Akai GX 630 DSS Brochure 2 (Ocr-read)


Page 1

TECHNICAL DATA

Track System: 4 track 4/2 channel compatible stereo system.

Heel Capacity: Up to 101/1" reel.

Tape Speed: 7% and 3% Ips (: 0.7%)

Pitch Control: 1 5%

Wow and Flultor: Less than 0.06% RMS at 7‘ 2 105
Less than 0.09% RMS at 3% ips.

Frequency Ruponu: 30 to 21,000 Hz : 3 dB at 7‘2 nos,

30 to 15.000 Hz : 3 dB at 3:. nos,

Distortion: Less than 0.5% at 7'2 nos, 1‘ 000 Hz 0 VU)

Signal Io Noise Ratio: Better than 54 GE Measured Via tape with
peak recording level at ‘6 VUv

Erase Ratio: Better than 70 c8

Bias Frequency: 100 x H;

Heads: 1sz One 4 TR 2-CH 4431-1 GX playback head. One 4 TR,
2-CH 4-CH GX 'ewang head. One Front CH erase head. One
Rea! CH erase head.

Motor: 13 One AC Servo motor for capstan drive. two eddy
We'll motors for reel drive.

Fad Forward m Rewind Time: 120 sec. using 2,400 ft tape.

Output Jocks: Line (2): 0.775 V (0 VU)

Required load impedance: More than 20 k ohms.

Phone (1): 30 mV/B ohms.

Input Jncks: Microphone (2):

0.25 mV/lO k ohms.

Line (2): 7o mV/150 k ohms.

Semi-conductors: Transistors 65. Diodes 63. [CS 4,

Power Requirements and Power Consumption:

U.S.A. and Census Models: 120V, 60 Hz onty. 90 W,

CEE Models: 220V. 50 Hz only. 100 W.

BSI Models: 240V. 50 Hz only. 100 W.

Other Models: 100 to 240V. 50/60 HZ, 90 W. (Switchable)
Dimensions: 440(W) x 527(H) x 240(D) mm (17.3 x 20.7 x 9.4)
Weight: 20 7 kg (45.5 lbs)

‘Speaflcabons aeterr-uned with Scotch #211 tape.

'For improvement purposes spealvcations and design

are subtect to change Mthout notice,

STANDARD ACCESSORIES

Pln Plug Connection Cords: 2

1o ” Reel Adlptors: 1 set

10‘6" Empty Heel: 1

Spare Fuses: 1 set

Operator’s Manual: 1

‘Spare Fuses not included with GEE, CSA, Bel,
UL and LA models.

RENSEIGNEMENTS TECHNIQUES

Systéme de piste: Systems ste‘réoM pistes 4/2 canaux compatible.

Capacité de boblne: Jusqu a 10W"

Vitesse de bmde: 7‘ z 9131': Ips (: 0.7%)

Commande de lonallie: °"e

Scintillement et pleurag . niérteur a 0.06% HMS a 7V2 ips.
inlerieur a 0.09% RMS 3 3% ms

Caurbe de reponse: de 30 Hz ‘a 21,000 Hz = 3 dB a 71/: ips, de 30
a 15,000 Hz : 3 dB a 3% I135

Distorsion: interieur a 0.5% a 7": lps (1000 Hz "0" VU)

Rapport signal/limit: supe‘rieur 'a 54 dB (mesuré sur bande ave:
niveau d'enregistrement maxurnum de +6 VU).

Rapport d'oil‘acement: Superieur a 70 dB

Frequenca da premngnetisaflan: 100k Hz

T9195: (4) Une 4TH. 2-CA/4-CA téte GX de lecture. Une 4 TR
2-CA/4CA téte GX d'enregistrement. Une téte d'eflacement Ch
aniérieure. Une téte d’eliacement CH 3 I'arriere.

Moreurs: (3) Un servo~moteur alternalit pour I'entrainement du
cabeslan; deux moteurs a llux variable pour l'enlrainement des
bobines.

Temp! de bablnagelremboblnaga rapldes: 120 sec avec bande
de 2.400 pieds.

Prim! de sortie: Lignes (2): 0.775 V (D VU)

Impedance de charge supérieur a 20 k ohms)
Casque (1): 30 mV/B ohms

Frises d'antreo: Micro (2): 0.25mV/10 k ohms—ngne (2): 7O
mV/150K ohms

Semi—conductaurs: Transistors: 65, Diodes 63, |Cs4

Conditions d’allmentatlon ei de connomptlon:

Models: des Eats-Unis e1 Ie Canada: 120V, 60 Hz seulement.
90 W.

Modéles CEE: 220V. 50 H1 seulement. 100 W.

Models: BSI: 240V, 50 Hz seulement. 100 W.

Autrae Modéies: de 100 a 240V. 50/60 Hz. 90 W
(interchangeable)

Dimensions: 440(W) x 527(H) x 240(0) mm (17.3x20.7x9.4”)

Folds: 20.7 kg (45.5 Iivres)

‘Les naraclérisliques lechn' ues Dnl été établies

evec I'emploi de la Bands Dolch #211.

'Pour ratsons d‘ameiioretion. les camctenstiques et la presentation sent

sujehes a madifination sans préavis.

ACCESSOIRES STANDARDS

Cordon de raccordemenl: 2
Adaptateur do boblne 10%": 1 jeu
Bobina 10%”: 1

Fuslble de rechange: 1 jeu
Manuel de l'operateur: 1
