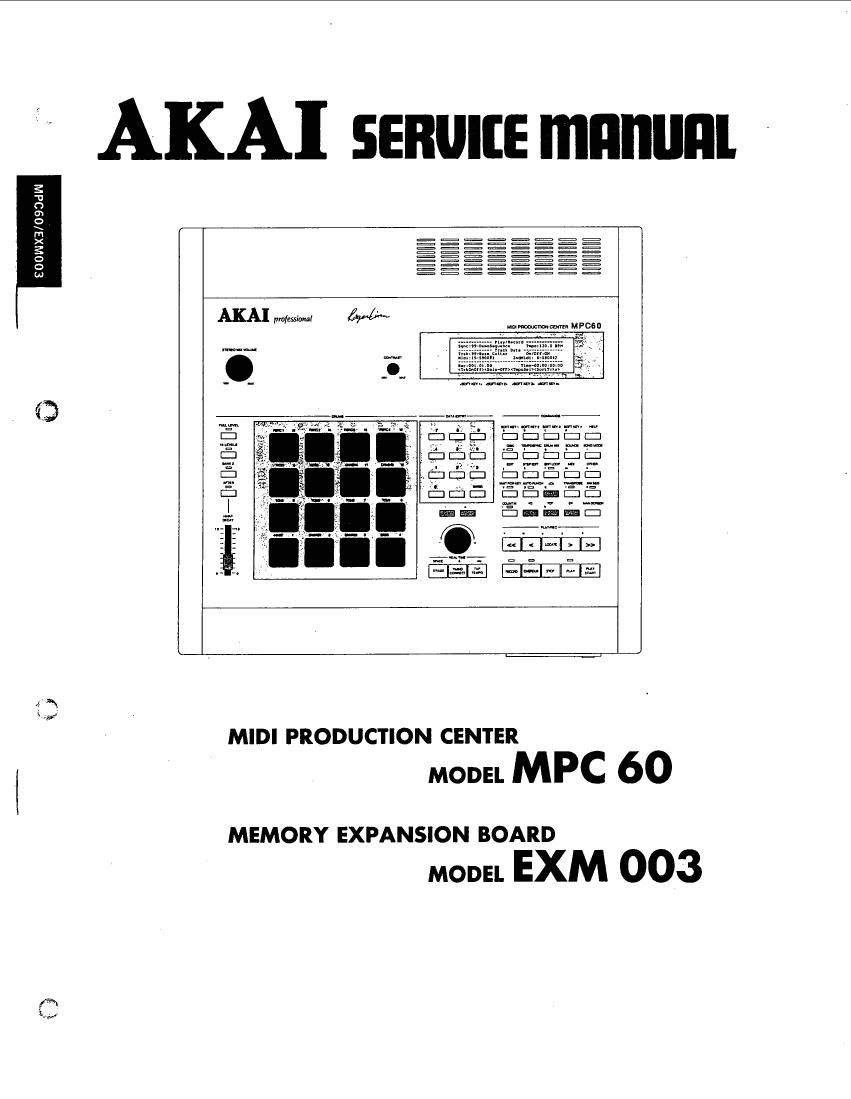

Akai EXM 003 Service Manual

This is the 65 pages manual for Akai EXM 003 Service Manual.
Read or download the pdf for free. If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.

Page: 1 / 65
left right
Akai EXM 003 Service Manual

Extracted text from Akai EXM 003 Service Manual (Ocr-read)


Page 2

PRECAUTIONS DURING SERVIDING

l, Pans identified by the [5 symbols are critical for safety.
Replace only with pans number specified.

2. In addition to safety, other parts and assemblies are
specified for conformance with such regulations as those
applying to spurious radiation.

These must also be replaced only with specified
replacements.

Examples: RF converters, tuner units, antenna selector
switches, RF cables, noise blocking capacitors, noise
blocking filters, etc.

3. Use specified internal wiring. Note especially:

1) Wires covered with PVC tubing
2) Double insulated wires
3) High voltage leads

4-. Use specified insulating materials for hazardous live parts.

Note. especially:

1) Insulation Tape

2) PVC tubing

3) Spacers (Insulating Barriers)

4) Insulation sheets for transistors

5) Plastic screws for fixing microswitch (especially in
turntable) '

5. When replacing AC primary side components (transform-
ers, power cords, noise blocking capacitors, etc), wrap
ends of wires securely about the terminals before soldering

assist”

6. Observe that wires do not contact heat producing parts
(heatsinks, oxide metal film resistors, fusible resistors,
etc.).

* INFORMATION

SYMBOLS FOR PRIMARY DESTINATION
Alphabet indicates the destination of the units as listed below.

Symbols Principal Destinations

USA

UK

Canada

Europe (except UK)

Japan

Australia

W. Germany only

Universal Area

Custom version

SERVICE MANUAL

7. Check that replaced wires do not contact sharp edged or
pointed parts.

8. Also check areas surrounding repaired locations

9. Use care that foreign objects (screws, solder droplets, etc.)
do not remain inside the set.

SAFETY CHECK AFTER SERVICING

Confirm the specified insulation resistance between power
cord plug prongs and externally exposed pans of the set is
greater than 10 M ohms, but for equipment with external
antenna terminals (tuner, receiver, etc.) and is intended for
or , specified insulation resistance should be head-
phone jacks, line-in—out jacks, etc. more than 2.2 M ohms
(ground terminals, microphone jacks).

PRECAUTIONS FOR LITHIUM BATTERY

The lithium battery may explode when heated excessively
[OBSERVE THE FOLLOWING WHEN REPLACING]
0 Replace with the same make and type only.

0 Use soldering iron in "recommended way" only.

0 Place battery in correct polarity.

0 Do not short the terminals.

0 Do not recharge battery.

0 Do not dispose of battery in fire.

[DANGER] [RECOMMENDED WAY]

VOLTAGE CONVERSION
( V E B S Model only)

Before connecting the power cord, set the VOLTAGE
SELECTOR located on the bottom plate with a screw-driver
so that the correct voltage is indicated.

VOLTAGE
SELECTOR

220v [11:] 240v

.L.
