Akai CSF 14 CSF 21 Service Manual

This is the 44 pages manual for Akai CSF 14 CSF 21 Service Manual.
Read or download the pdf for free. If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.

Page: 1 / 44
left right
Akai CSF 14 CSF 21 Service Manual

Extracted text from Akai CSF 14 CSF 21 Service Manual (Ocr-read)

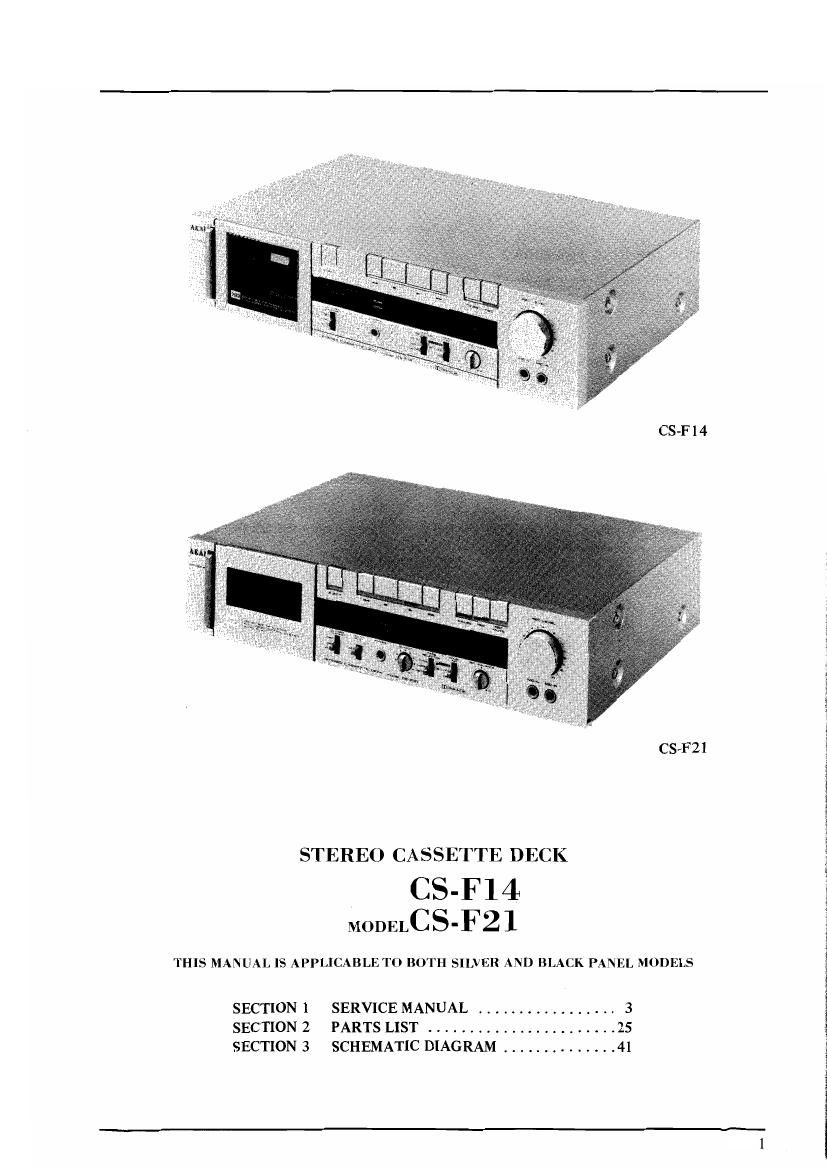

Page 1

CS—F l 4

CS-F21

STEREO CASSETTE DECK

CS-F14
MODELCS'F2 1

THIS MANUAL IS APPLICABLE TO BOTH SILVER AND BLACK PANEL MODELS

SECTION] SERVICEMANUAL ..... 3
SECTION2 PARTSLIST.......................25
SECTION3 SCHEMATIC DIAGRAM ...... ..41

Page 2

SAFETY INSTRUCTIONS

SAFETY CHECK AFTER SERVICING

Confirm the specified insulation resistance between power cord plug prongs and externally exposed parts of the set is
greater than 10 Mohrns, but for equipment with external antenna terminals (tuner, receiver, etc.) and is intended for
or I, specified insulation resistance should be more than‘2.2 Mohms (ground terminals, microphone jacks,
headphone jacks. line-in-out jacks etc.)

PRECAUTIONS DURING SERVICING

l.

\OOOQO‘

Parts identified by the A symbol parts are critical for safety.

Replace only with parts number specified.

In addition to safety, other parts and assemblies are specified for conformance with such regulations as those

applying to spurious radiation. These must also be replaced only with specified replacements.

Examples: RF converters, tuner units, antenna selector switches, RF cables, noise blocking capacitors, noise
blocking filters, etc.

Use specified internal wiring. Note especially:

1) Wires covered with PVC tubing

2) Double insulated wires

3) High voltage leads

Use specified insulating materials for hazardous live parts. Note especially:

1) Insulation Tape

2) PVC tubing

3) Spacers (Insulating Barriers)

4) Insulation sheets for transistors

When replacing AC primary side components (transformers, power cords, noise blocking capacitors, etc), wrap

ends of wires securely about the terminals before soldering.

D C)

Observe that wires do not contact heat producing parts (heatsinks, oxide metal film resistors, fusible resistors, etc.).
Check that replaced wires do not contact sharp edged or pointed parts.

Also check areas surrounding repaired locations.

Use care that foreign objects (screws, solder droplets, etc.) do not remain inside the set.
