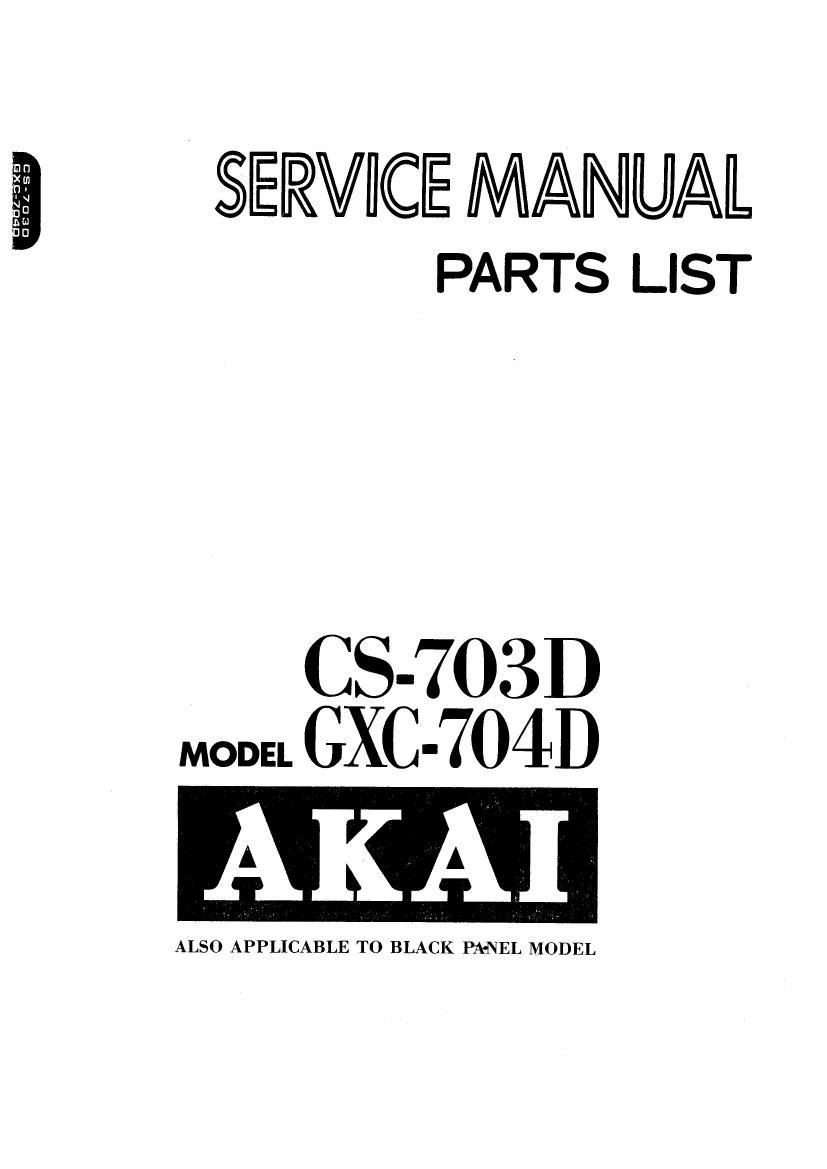

Akai CS 703 D Service Manual

This is the 67 pages manual for Akai CS 703 D Service Manual.
Read or download the pdf for free. If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.

Page: 1 / 67
left right
Akai CS 703 D Service Manual

Extracted text from Akai CS 703 D Service Manual (Ocr-read)


Page 8

III. CONTROLS

1. MODEL CS—703D

Pr‘a’P‘PWM"

. POWER SWITCH
. CASSETTE RECEPTACLE
. RECORDING INDICATOR LAMP

INDEX COUNTER AND RESET BUTTON
DOLBY NR INDICATOR LAMP

. LEFT VU METER

RIGHT VU METER
STOP/EJECT KEY
RECORDING (REC) KEY
REWIND («I KEY

. PLAY I b) KEY
. FAST FORWARD (»l KEY

" JPN and AAL modeIs are not equipped with this facility

13‘
14.
15.
16.
17.
18.
19.

20

21.
22.
23‘

Fig. 1 Controls

PAUSE KEY
HEADPHONE JACK
TAPE SELECTOR
DOLBY NR SWITCH
LEFT RECORDING LEVEL CONTROL
RIGHT RECORDING LEVEL CONTROL
MICROPHONE JACKS
.'LlNE/D|N INPUT SELECTOR
LINE INPUT JACKS
"DIN JACK
LINE OUTPUT JACKS
