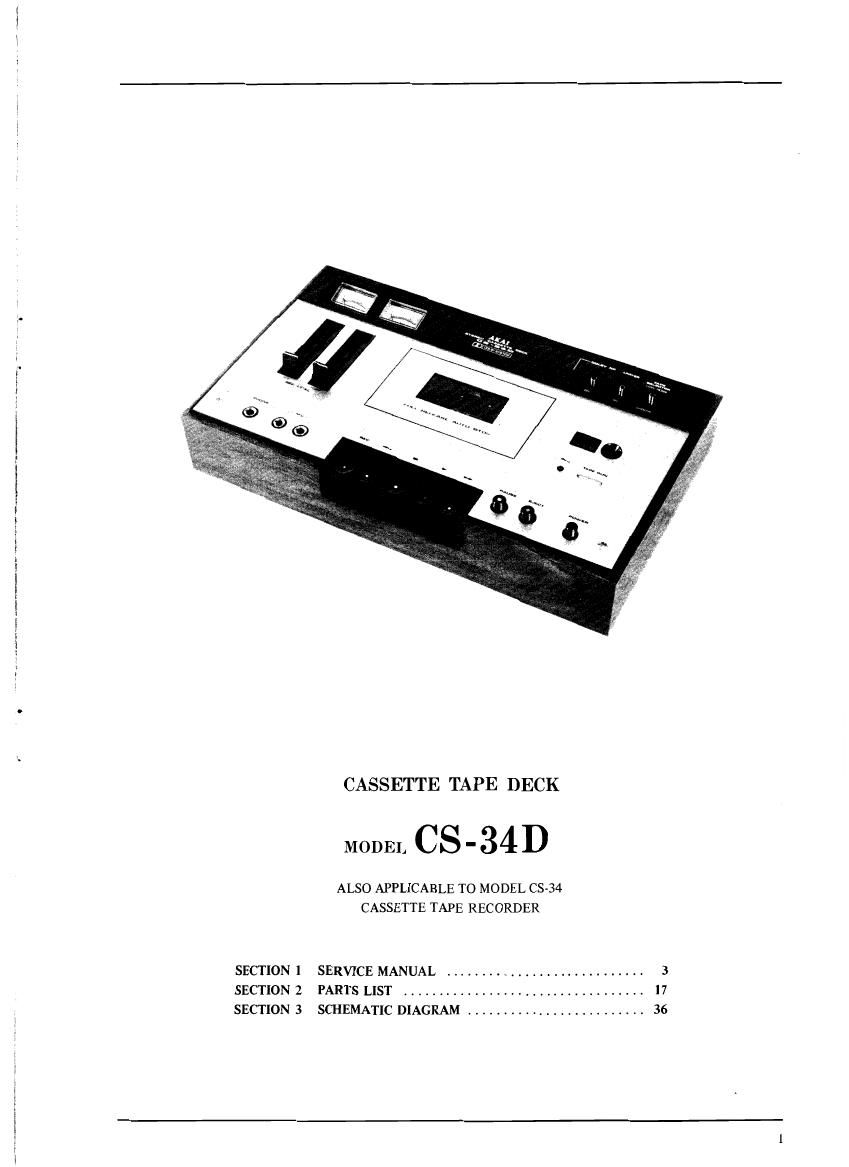

Page 1

CASSETTE TAPE DECK

MODEL CS '34D

ALSO APPLICABLE TO MODEL CS-34
CASSETTE TAPE RECORDER

SECTION I SERVICE MANUAL ............................ 3
SECTION 2 PARTS LIST .................................. 17
SECTION 3 SCHEMATIC DIAGRAM ......................... 36

Page 27

7) MECH. FRAME BLOCK (1) 8) MECH. FRAME BLOCK (2)

fig Parts No. Description S°h§’3_‘"° Q'ly Eff Parts No. Description “firm Qty
TAKE-UP LEVER BLOCK 8-1 MZ630854 Panel Table A 01-1032 1
7-1 ML456693 Take-up Lever (1), w/pin 00-1024 1 82 25325495 Tapping Screw #2 3x6 15
7-2 ML630448 Take-up Lever (2), w/metal 01-2031 1 8-3 TC456928 Brake Shoe 00-1039 1
7-3 M1456750 Take-up Wheel. w/shaft CG-1031 1 8-4 26456930 Brake Spring C010“! 1
7-4x 2W474581 Washer (Teflon) 8-5 T0613236 Brake Slide cw-lo43 l
D2.05x3.5x0.2t 1 8-6 M2630696 Rec. Slide 01-1005 1
7-5 MR456761 Take-up Pulley 00-1032 I 8-7 26456186 Lock Lever Spring 00-1110 1
7-6 2W290283 ‘U' Ring 2.85M 5-1-1 8 8-8 ZW290283 ‘U’ Ring 2485M 6-11 23
7-7 26469315 Take-up Lever Spring 00-1091 1 3-9 M2630630 Rewind Slide 01-1007 1
7-8x 2w461248 Washer (PBP)D4.3x11x0.351 1 8-10 M2630652 RF. Slide 01-1009 1
7-9x 2W530504 on Cut Washer CG-1102 1 8-11 M26306“ Play Slider W/pin 01-1003 1
8-12 M2630534 Eject Slide 01-1010 1
WIN) IDLER BLOCK 8-13 M5630573 Shaft A 01-1017 1
7-10 ML456783 w1nd Lever (1), w/shaft 00-2009 1 8-14 M2630562 Slider A-W/Pin 0-1-1016 1
7-11 26392804 Auto. Change Lever E 8-15 M2630527 Slide Collar 01-1019 1
Return Spring 05-2566 1 8-16 Z0542204 Spring A 02-1010 1
7-12 B2592154 Wind Pulley Block Comp. CG.CT,CJ 1 8-17 ML630595 Safety Lever 01-1011 1
7-13 2w270123 ‘E' Ring 4M 6-1-9 1 8-18 26630606 Safety Lever Return Spring 01-1012 1
7-14 TC461878 Wheel Collar 00-2020 1 8-19 M2630617 Pause Slide B 01-1013 1
7-15 M1461891 Wind Wheel (2) 0T-2024 1 8-20 TC630742 Slider B 91.1021 1
7-16 26459224 Clutch Spring 00-2021 1 3-21x 2W270101 ‘E'Ring 3M 5-1-9 1
7-17 2W259795 Washer (SUP) D4.3x11x0.13t 1 8-22 26366794 Cassette Return Spring RCC-lZlZ 1
7-18 2w421007 Washer (SUP) D4.3x11x0,25t 1 8-23 M2630551 Eject Slide B 01-1015 1
7-19 Ml638820 Wind Wheel 01-2039 1 8-24 ML630538 Connection Lever A 01-1020 1
7-20 2W391397 ‘E‘ Ring 1.2M 6-1-9 1 8-25 ML630540 Stop Release Lever 01-1014 l
7-21 ZW474581 Washer (Teflon) 8-26 26392826 REC. Lever B Return Spring 05-1147 1
D2.05x3.5x0.2t 1 8-27 ML457110 Pause Lever CG-1060 1
7-22 2w474592 Washer (Teflon) 8-28x ZG290384 UN Spring D 1630103 1
D2.05x7xo.2t 1 8-29 ML457132 Eject Lever 00-1062 1
7-23 M13456395 Wind Belt D40xl.4x1.4 00-1035 1 8-30x TC630011 Release Plate 01-1043 1
7-24 ZW474603 Washer (Teflon) S-Jlx ZS432674 Screw, pan head 3x3 2
D4.1x13x0.21 1 8-32 E2630821 Power SW. Table 01-1029 1
8-33 ES469541 Push SW. Tv-3 11352 25-5-60 1
MECH. FRAME BLOCK 8-3411 ES499972 Push SW. JS-09 (CEE) 25-5-67 1
7.25 M2630753 Mech. Frame Base CJ71022 2 8-3511 Z860827S Screw, pan head 3x5.

7-26 M2631271 Wind Slide, w/pin 01-1033 1 w/washer (CEE) 2
7-27 26639718 Wind Pull Spring 01-1049 1 8-36x 2S422o76 Screw. pan head 3x5 2

7-28 M2595675 Wind Plate 011-1049 1 8-3711 EC551160 Ceramic/C.N13821 Y2
7-29 26456985 Wind Spring 00-1045 l 0.01uF(Z) 1.4 kWV 24-5-55 1
7-30 26460484 Wind Plate Spring comes 1 8-38 58614428 Power Button B 115-5021 1
7-31 2S417161 Screw. pan head 2.3x4 2 8-39 EZ629572 Lamp P.C. Board Table 01-1037 1
7-32 M26452B7 Warp Stopper Angle CJ 1053 1 8-40 EA629583 Lamp P.C- Board 01038 |
7-33 ZS325495 Tapping Screw #2 3x6 4 8-41 EL295312 Lamp (No. 2) 8v 0.2A 28-2-8 1
7-34 T019889: SW. Holder 00-3304 1 8-42 ED522887 Luminous Diode SL-103 45-152 1

7-35 E5539043 Push SW. SPJ-10108 25-5-92 1 3-43x ER324641 Carbon/R. (lnsu. Type)
7-36 58499195 SW, Button 00-3305 1 RDl/4 lk(J) 35-9-5 1

7-37 25460440 Screw. pan head 2x4 2 8-44 MC629730 Counter MP-390-138,

7-J8x 23467526 Screw. truss head 2,6)(5 2 W/Pulley 9139 l
739 E2630764 Leaf SW. Table 01-1023 1 8-45 M2630775 Counter Base 01-1024 1
7-40 P25630494 Leaf SW1BSW-53 25-10-22 1 23-4611 25417216 Screw, pan head 3x4 2
7-41 2w422076 Screw. pan head 3x5 5 8-47 E2630808 Leaf SW. Table B 01-1027 1
7-42 M2630810 Eject Arm 01-1023 1 8-48 155629741 Leaf SW. BSW-310 25-10-23 1
7-43 M2630628 REC. Bracket CJ1006 1 8-49 25590804 Screw, pan head 2.3x6 1
7-44x H2372l61 Hollow Rivet 3x4.5 1 8-50 TC457075 SW. Plate 00-1056 1
7-45 26655817 REC Spring C 06-1052 1 8-51 ES494|88 Micro SW.SS-5GL-13 25-1-25 1
7-46 ZG494381 REC. Cramp Spring B 03-1218 2 8-52 ZS487091 Screw: pan head 2.3x8 2
7-47 25478697 Graduated Screw, C6 00-1093 2 8-53 ML483906 REC. Safety Lever CT-1003 l
7-48 BK620583 Keyboard SW. CW cw-3003 1 8-54 26387821 Rewind Spring 05-2033 1

When ordering parts, Please describe Pans Number. Serial Number, and Model Number in detail.
