Akai CR 80 SS Owners Manual

This is the 20 pages manual for Akai CR 80 SS Owners Manual.
Read or download the pdf for free. If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.

Page: 1 / 20
left right
Akai CR 80 SS Owners Manual

Extracted text from Akai CR 80 SS Owners Manual (Ocr-read)

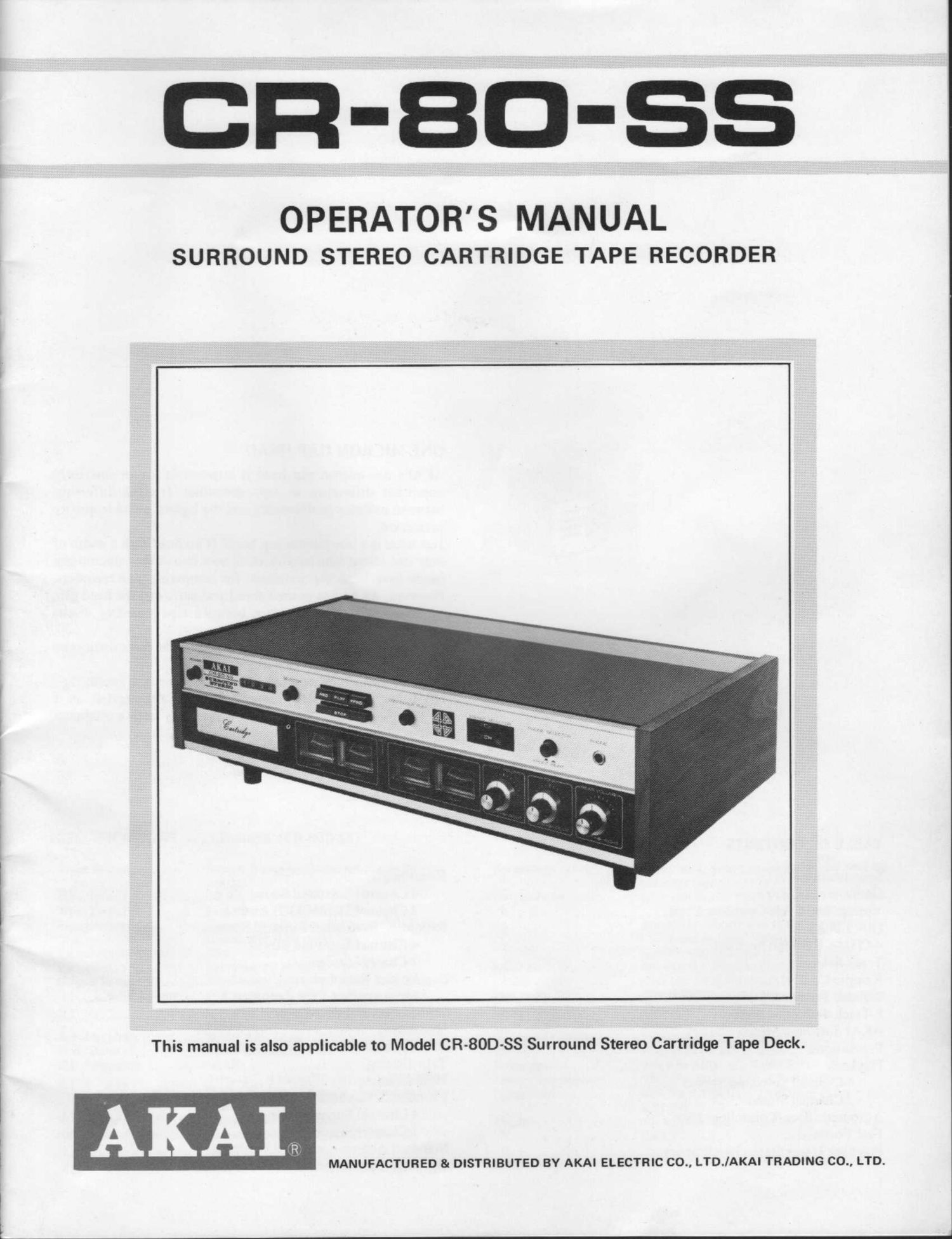

Page 1

CH-BI-SS

OPERATOR'S MANUAL

SURROUND STEREO CARTRIDGE TAPE RECORDER

This manual is also applicable to Model CR-BOD-SS Surround Stereo Cartridge Tape Deck.

MANUFACTURED 8: DISTRIBUTED BY AKAI ELECTRIC 00., LTD./AKAI TRADING CO., LTD.

Page 2

TABLE OF CONTENTS

Specifications .................................. 1
Controls ...................................... 2
Voltage and Cycle Conversion ...................... 4
DIN JACKS .................................... 5
4-CH/2-CH Stereo Selector ........................ 5
Track Selector .................................. 5
Remote Control ................................ 5
8-Track 2-channel Stereo ......................... 6
8-Track 4-Channel Stereo ......................... 6
AKA] Surround Stereo ........................... 6
Precautions .................................... 7
Playback

4-Channel Surround Stereo .................... 8

2-Channel Stereo ............................ 9
Automatic Stop/Continuous Play ................... 9
Fast Forward ................................... 9
Playback Using Stereo Headphones .................. 9

ON E-MICRON GAP HEAD

AKAl-s one-micron gap head is responsible for an amazingly

important difference in tape recording It-s the difference

between ordinary performance and the highest possible quality

perfection

Just what is a one-micron gap head? It-s a head with a width of

only one astounding micronr Until now two or four micron gap

heads have been the standards for comparing tape recorders.

However, AKAl has pushed ahead and narrowed the head gap;

thus narrowing the difference between tape recording results

and actual sound

The AKAI perfected one-micron gap head has these distinctive

advantages over heads with wider gaps:

(A) Excellent frequency response even at low tape speedi

(B) Clear, high pitched sound can be regenerated as a
frequency tone and recorded smoothly with a minimum
of distortion.

Recording

4-Channel Surround Stereo .................... l0

2-Channel Stereo ............................ 10
Recording from other External Sources

4-Channe1 Surround Stereo .................... l l

2-Channel Stereo ............................ l I

From a record player ......................... 1 1

From another Tape Recorder ................... l 1
Input Selector Switch ............................ l ]
Monitoring .................................... 12
PA. System ................................... 12
Tape Erasing ................................... 13
Head Cleaning .................................. 13
CR-80D~SS Playback

4-Channel Surround Stereo .................... 14

2-Channel Stereo ............................ 14
Standard Accessories ............................. 15

Optional Accessories ............................. 15

Page 19

"Surround Stereo" used with permission of Vangard Records.
