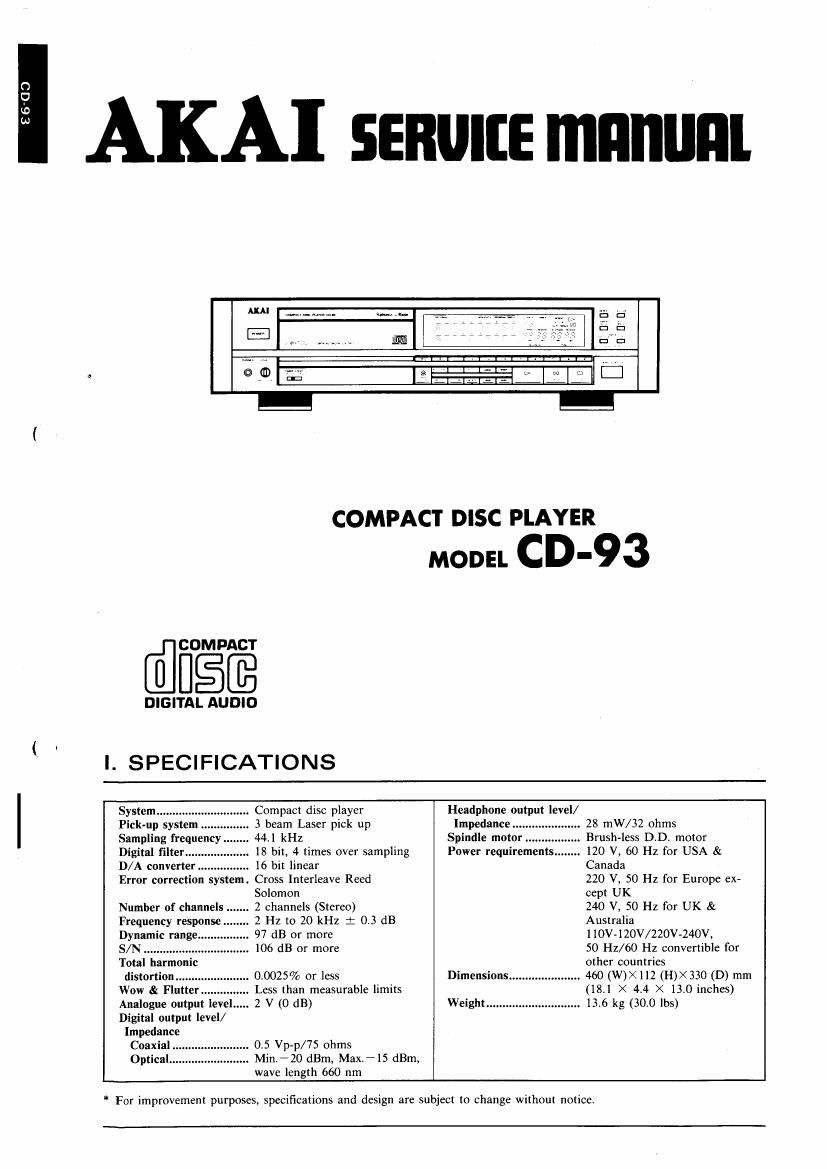

Page 1

£6113

AKA] 5153qu manual

@fig‘fi

COMPACT DISC PLAYER

DIGITAL AUDIO

I. SPECIFICATIONS

MODEL CD'93

System .............
Pick-up system
Sampling frequency
Digital filter....
D/ A converter ..
Error correction system.

Number of channels .
Frequency response

Total harmonic
distortion .......
Wow & Flutter ..
Analogue output eve
Digital output level/
Impedance
Coaxial ,
0ptical..


.. Compact disc player

3 beam Laser pick up

44.1 kHz

is bit, 4 times over sampling
16 bit linear

Cross Interleave Reed
Solomon

.‘ 2 channels (Stereo)

2 Hz to 20 kHz : 0.3 dB
97 dB or more

.. 106 dB or more

.. 040025% or less

Less than measurable limits

.. 2V(0dB)

0,5 Vp—p/75 ohms

.. Min—20 dBm, Max.* 15 dBm,

Wave length 660 nm

Headphone output level/
Impedance ..................... 28 mW/32 ohms

Spindle motor ........ Brush

Power requirements . 120 V, 60 Hz for USA &
Canada
220 V, 50 Hz for Europe ex-
cept UK
240 V, 50 Hz for UK &
Australia
1 lOV-IZOV/220V»24OV,
50 I'll/60 Hz convertible for
other countries

Dimensions ...................... 460 (W)>< 112 (H)><330 (D) mm
(18.1 X 4.4 X 130 inches)
Weight ............................. 13.6 kg (300 lbs)

* For improvement purposes, specifications and design are subject to change without notice.

Page 2

* SAFETY INSTRUCTIONS

PRECAUTIONS DURING SERVIDING

1. Parts identified by the A symbols are critical for safety
Replace only with parts number specified.

1 In addition to safety, other parts and assemblies are
specified for conformance with such regulations as those
applying to spurious radiation.

These must also be replaced only with specified
replacements.

Examples: RF converters, tuner units, antenna selector
switches, RF cables, noise blocking capacitors, noise
blocking filters, etc.

3. Use specified internal wiring. Note especially:

1) Wires covered with PVC tubing
2) Double insulated wires
3) High voltage leads

4. Use specified insulating materials for hazardous live parts.

Note. especially:

1) Insulation Tape

2) PVC tubing

3) Spacers (Insulating Barriers)

4) Insulation sheets for transistors

5) Plastic screws for fixing microswitch (especially in
turntable)

5. When replacing AC primary side components (transform-
ers, power cords, noise blocking capacitors, etc), wrap
ends of wires securely about the terminals before soldering.

stem fl“

6. Observe that wires do not contact heat producing parts
(heatsinks, oxide metal film resistors, fusible resistors,
etc.)

C)

fir INFORMATION

7. Check that replaced wires do not contact sharp edged or
pointed parts.

8. Also check areas surrounding repaired locations.

9. Use care that foreign objects (screws, solder droplets, etc.)
do not remain inside the set.

SAFETY CHECK AFTER SERVICING

Confirm the specified insulation resistance between power
cord plug prongs and externally exposed parts of the set is
greater than 10 M ohms, but for equipment with external
antenna terminals (tuner, receiver, etc.) and is intended for
or - , specified insulation resistance should be head-
phone jacks, line-in-out jacks, etc. more than 2.2 M ohms
(ground terminals, microphone jacks).

BEFORE USING THE CD PLAYER

Q03)

v :7

mm xoomn

On the Transport Locking Lever

This CD player has a Transport Locking Lever located on
the bottom panel. This lever locks the laser pick up
mechanism to prevent vibration during transportation. Make
sure to set this lever to the UNLOCK position before
playback.

Raise the CD player as shown in the illustration (Front panel
facing up), and then turn the Transport Locking Lever to the
UNLOCK position.

When transporting the CD player
Make sure to remove the compact disc from the CD player,
and reset the Transport Locking Lever to the LOCK position.

SYMBOLS FOR PRIMARY DESTINATION

Alphabet indicates the destination of the units as listed below.

Symbols Principal Destinations

USA
UK

Canada

Europe (except UK)

Japan
Australia
W. Germany only

Universal Area

Custom version

SERVICE MANUAL

VOLTAGE CONVERSION Model only)

Before connecting the power cord, SET the VOLTAGE
SELECTOR located on the rear panel with a screwdriver so
that the correct voltage is indicated.

220v-2A0v

HOV-120V

Page 22

T0 ANALOG PCB F2

H.P PCB P2026A5038

VOLTAGE SELECTOR

IE

A

”av-.723“ 3
1


To vowza YKAusmuLoGuE)

POWER SUPPLY PCB
P2026C50|O

WARNING'AINDICATES SAFETY CRITICAL COMPONENTS FOR CONTINUED SAFETY,
REPLACE SAFETY CRITICAL COMPONENTS ONLY WITH MANUFACTURER‘S
RECOMMENDED PARTS

AVERTISSEMENT' AIL INDIQUE LES CQMPOSANTS CRITIQUES DE SECURITE.

POUR MAINTENIR LE DEGRE DE SECURITE DE L APPAREIL
NE REMPLACER QUE DES PIECES RECOMMANDEES PAR LE FABRICANT
