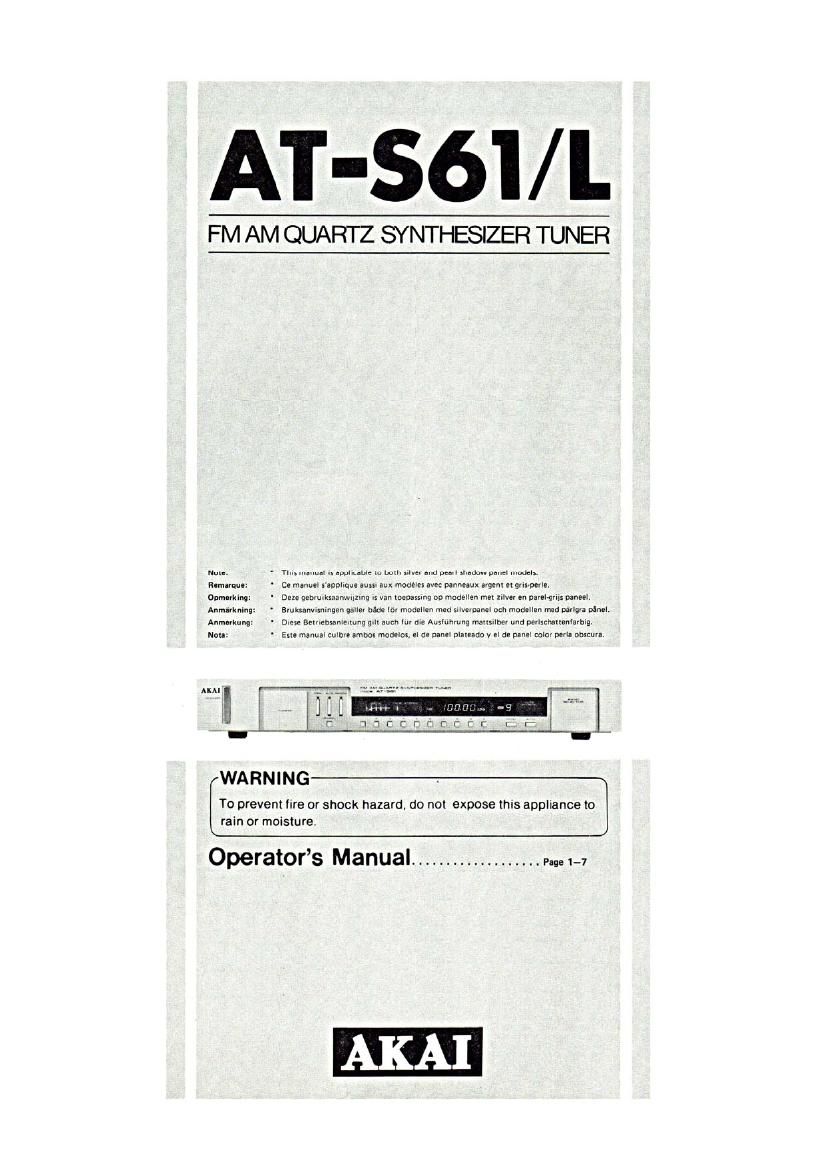

Akai AT S61 Owners Manual

This is the 9 pages manual for Akai AT S61 Owners Manual.
Read or download the pdf for free. If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.

Page: 1 / 9
left right
Akai AT S61 Owners Manual

Extracted text from Akai AT S61 Owners Manual (Ocr-read)


Page 2

Operator’ 5 Manua

WARNING

POWER REQUIREMENTS

Power requirements for electrical equipment differ
from area to area.

Please ensure that your machine meets the power
requirements in your area.

If in doubt, consult a qualified electrician.

120V, 60 Hz for USA and Canada

220V, 50 Hz for Europe except UK

240V, 50 Hz for UK and Australia
110V/220V/240V, 50/60 Hz internally switchable
for other countries.

VOLTAGE CONVERSION

Do not attempt this conversion yourself.

Models for Canada, USA, Europe, UK and Australia

are not equipped with this facility.

Each machine is preset at the factory according to

destination, but some machines can be set to 110V,

220V or 240V as required. If your machine’s voltage

can be converted, refer the following voltage conver-

sion to a qualified Service Repair Shop or profes-

sional service personnel.

1. Disconnect the power cord.

2. Loosen the holding screws and remove the top
paneL

3. Remove the Line Voltage Fuse and insert the re-
quired Line Voltage Fuse onto the proper Fuse
Holder, explicitly following the printed instruc-
tions.

Front

RISK OF ELECTRIC SHOCK
DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELEC-
TRIC SHOCK, DO NOT REMOVE
COVER (OR BACK).

NO USERSERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE

PERSONNEL.

1 10V 1 20V 240V

| | l

Power
Switch

F1 F2 F3

W

The lightning flash with arrowhead symbol super-
imposed across agraphical representation of a per-
son, within an equilateral triangle, is intended to
alert the user of the presence of uninsulated ”dan-
gerous voltage". within the product's encloure:
that may be of sufficient magnitude to constitute
a risk of electric shock to persons.

. The exclamation point within an equilateral trian-
gle is intended to alert the user of the presence of
. important operating and maintenance ( servicing )
instructions in the literature accompanying the ap-
pliance.

PRECAUTIONS

1.
2.

GNU)

F1 :400mA
F2 :200mA
F3 :ZOOmA

11.
. Please read this manual in its entirety and keep it

Use only household AC power sources.

Never use DC power sources.

Touching the plug with wet hands risks dangerous elec-
tric shocks.

Always pull out by the plug and never the cord.

. Make sure the power consumption of each audio com

ponent does not exceed wattage specified on the rear
panel. Only connect other audio components.

. Only let a qualified professional repair or reassemble

the equipment. An unauthorized person might touch
the internal parts and receive a serious electric shock.

. Never allow a child to put anything, especially metal

into this equipment. A serious shock or malfunction
may occur.

. If water is spilled on this equipment, disconnect and

call your dealer.

. Make sure the equipment is well ventilated and away

from direct sunlight.

. Keep away from heat (stoves, etc.) to avoid damage to

the external surface and internal circuits.

. Avoid spray-type insecticides which will damage the

10.

equipment and may ignite suddenly.

To avoid damaging the finish never use alcohol, paint
thinner or other similar chemicals.

Always place the equipment on a flat and solid surface.

handy for further reference.
