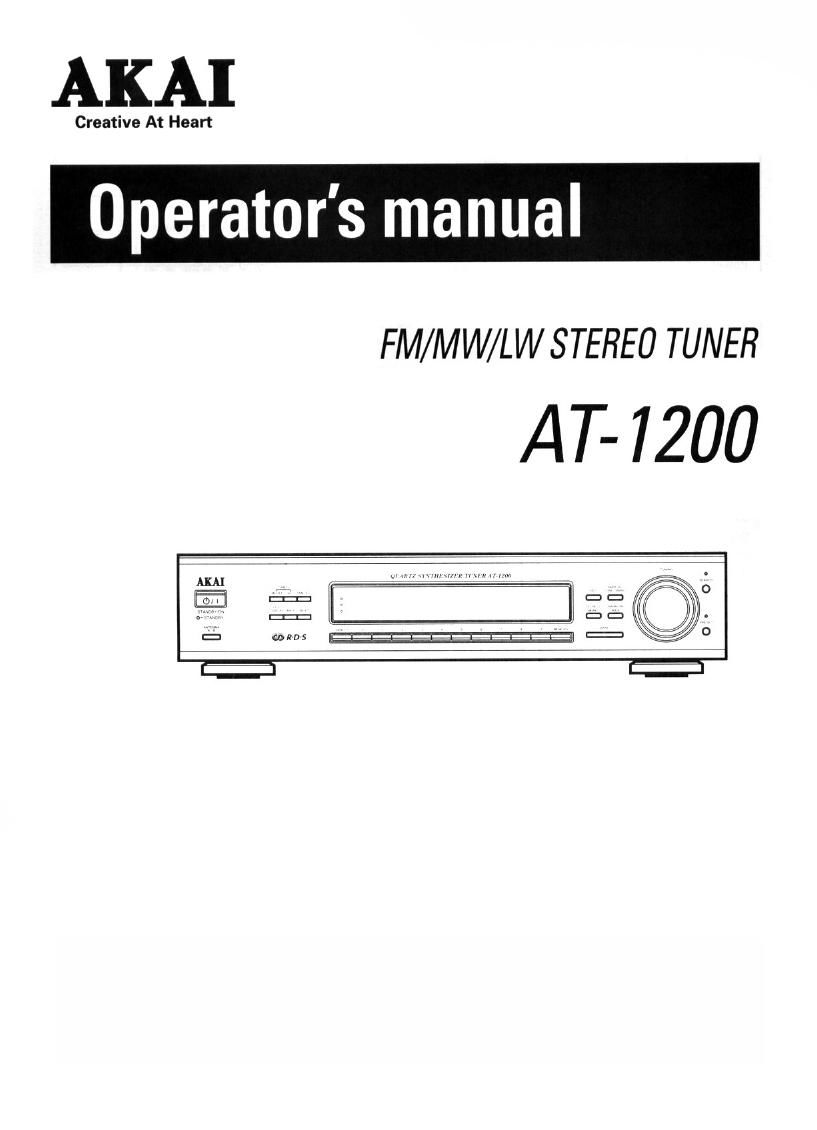

Akai AT 1200 Owners Manual

Extracted text from Akai AT 1200 Owners Manual (Ocr-read)


Page 2

Precautions and contents

WARNING
To prevent fire or shock hazard, do
not expose this appliance to rain or
moisture.

l-En

Power requirements
Power requirements for electrical
equipment differ from area to area.
Please ensure that your unit meets
the power equirements in your area.
If in doubt, consult a qualified
electrician.
230V. 50Hz for Europe.

2-En

About the POWER switch
This unit is equipped with a primary
power switch. Even when the units
on STANDBY/0N button is set to
STANDBY (off), the power supply to
this unit is not completely turned
off. If you wish to completely turn
the power off, disconnect the
power cord from the household AC
outlet, or release the STANDABY
mode by pressing the primery
power switch (OFF).

4-En

PRDDOTTO CONFORME AL D.M.
28/8/95 N°548.

IMPORTANT

This equipment is fitted with an
approved non-rewireable UK mains

plug.

To change the fuse in this type of plug
proceed as follows:

1) Remove the fuse cover and old fuse.

2) Fit a new fuse which should be a
381362 5 Amp A.S.T.A. or BSI
approved type.

3) Refitthe fuse cover.

If the fitted plug is not suitable for your
type of outlet sockets, it should be cut
off and an appropriate plug fitted in its
place. If the mains plug contains a
fuse. this should have a rating of 5
Amp.
If a plug without a fuse is used, the
fuse at the distribution board should
not be greaterthan 5 Amp.
PLEASE NOTE:
THE SEVERED PLUG MUST BE
DESTROYED TO AVOID A POSSI-
BLE SHOCK HAZARD SHOULD IT
BE INSERTED INTO A 13 AMP
SOCKET ELSEWHERE

The wires in this mains lead are
coloured in accordance with the
following code:

BLUE -NEUTRAL

BROWN - LIVE

As the colours of the wires in the
mains lead of this apparatus may not
correspond with the coloured
markings identifying the terminals in
your plug, please proceed as follows:

The wire which is coloured BLUE must
be connected to the terminal which is
marked with the letter N or coloured
BLACK.

The wire which is coloured BROWN
must be connected to the terminal
which is marked with the letter L or
coloured RED.

DO NOT CONNECT ANY WIRE TO THE
PIN MARKED E OR é- OR COLOURED
GREEN OR YELLOW & GREEN WHEN
WIRING THE PLUG.

Ensure that all the terminals are
securely tightened and no loose
strands of wire exist.
Before replacing the plug cover,make
certain the cord grip is clamped over
the outer sheath of the lead and not
simply over the wires.

tic-En

CONTENTS

Connections........................................,......... 2
Antenna Connections ................................. 3
Controls and Functions ............................... 4
Display ............................................................ 4
Manual Memory presetting....................... 5
Automatic Memory presetting .................. 5
Listening to radio broadcasts..........,......... 5
FINE/MANUAL Tuning...

DIRECT Tuning 6
SEARCH Tuning 6
Adjusting Current Time 7
Daily Time...

Filing ................................................................ 7
R08 (Radio Data System) 8

Major Reception Symbols of ROS Data .. 8

RDS Display 9
PTY Search ................................................... 9
Troubleshooting Guide ............................. 10
Specifications ............................................. 10
