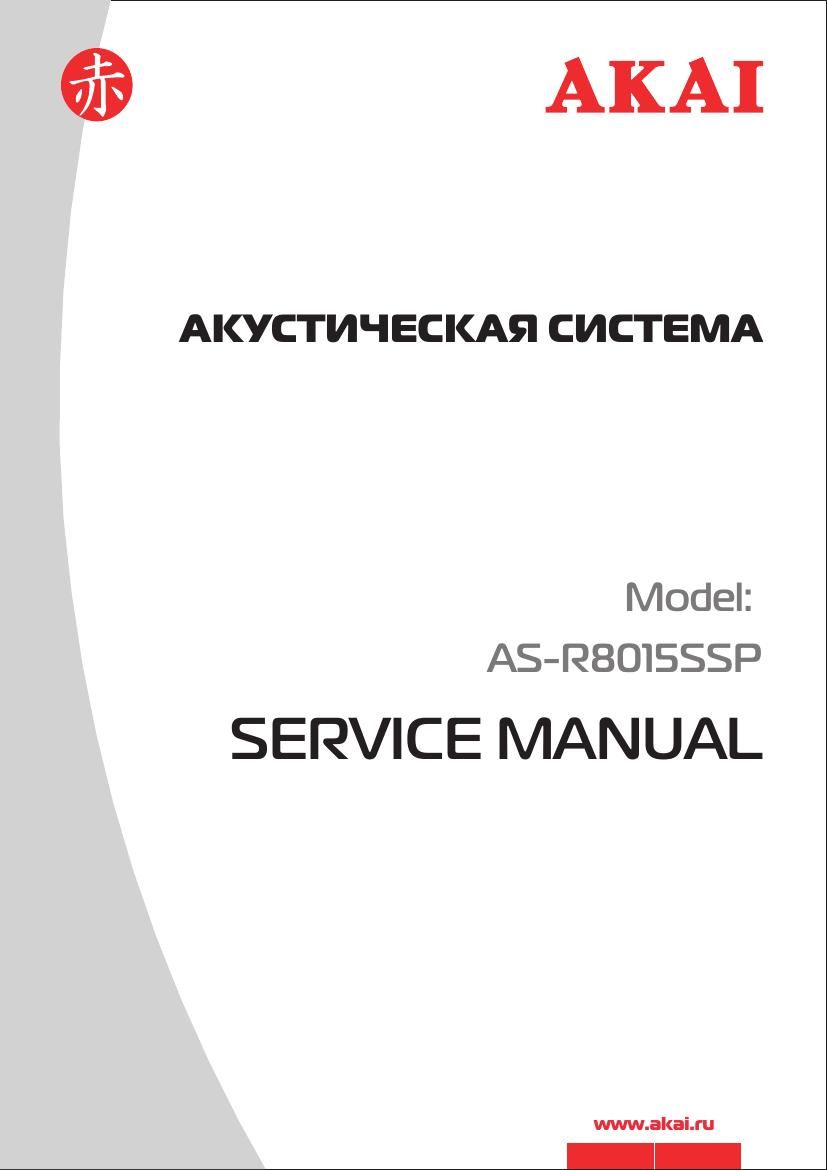

Akai ASR 8015 SSP Service Manual

Extracted text from Akai ASR 8015 SSP Service Manual (Ocr-read)


Page 1

General safety instructions To avoid the risk of an electronic shock, you should not expose the device to rain or moisture. Consequently, do not use the device in the immediate vicinity of water, for example near a bath tub, a swimming pool or in a damp cellar. Use the device only for the intended purpose. Only connect the device at a pro perly installed plug socket. Pay attention that the specified voltage corresponds to the voltage of plug socket. When using external mains supply, pay attention to the correct polarity and voltage. Always place the batteries in the correct direction. Assemble the device in such a way that the available ventilation openings are not covered. Never open the housing of the device. Incorrect rep airs can constitute a considerable risk of the user. Should the device become damaged, in particular the mains supply cable, do not operate the device any longer, but rather have it repaired by an expert. Check the mains supply cable regularly for damage. For safety reasons a broken or damaged mains lead may only be replaced by an equivalent lead from the manufacturer, our customer service department or a similarly qualified person. These symbols may be found on the unit and are in tended to indicate the following: Contents Cover------------ --------------------------- P1 General safety instruction --------P2 Exploded view of the Subwoofer— P3 Exploded view of the sa tellite-- P4 Schematic diagram -------------------- P5 Drawing of PCB board- -------- P6-P9 Part l i s t ------------ -----------P10 Familiar malfunction analysis----- P11 Specification Data: RMS output: 110W(35W+15W*5) Speaker Unit: subwoofer: 5. 25" satellite: 3" *5 Distortion :0. 3%1w 1kHz S/N Ratio: >=60dB Separation: >-45dB The lightning symbol should advise the user of parts in the inside of the device which carry dangerously high voltage level. The symbol with an exclamation mark should advise the user of important operation or maintenance instructions in the accompanying documentation.
