Akai AS 1070 1080 1080 DB Service Manual

This is the 54 pages manual for Akai AS 1070 1080 1080 DB Service Manual.
Read or download the pdf for free. If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.

Page: 1 / 54
left right
Akai AS 1070 1080 1080 DB Service Manual

Extracted text from Akai AS 1070 1080 1080 DB Service Manual (Ocr-read)


Page 1

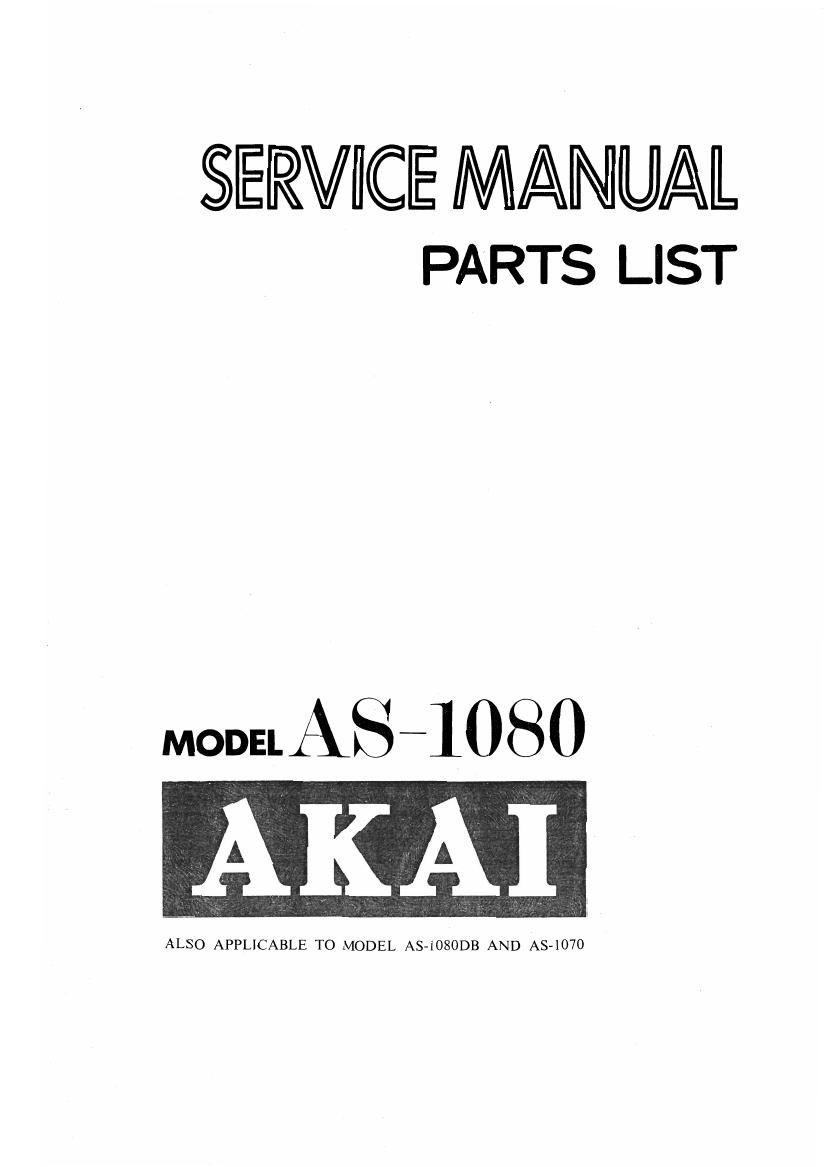

SERVHCE MANUAL

PARTS LIST

MODELAS-108O

A SO APPLICABLE TO MODEL AS-IOSODB AND AS-1070

Page 2

STEREO RECEIVER

MODEL AS - 1080

ALSO APPLICABLE TO MODEL AS-1080DB AND AS4070

SECTION 1 SERVICE MANUAL .................... . . . 1
SECTION 2 PARTS LIST .................................. 29
SECTION 3 SCHEMATIC DIAGRAM ......................... 41

Page 13

V. AM TUNER SECTION ADJUSTMENTS

BAR ANTENNA COREfi #

V

BAR ANTENNA

A

REAR PANEL
Fig. 6 Bar Antenna
Step Adjustment Item I Adjustment Point Result Remarks
Low Range ,
Frequency T-3 (RED) error: , s
1 Coverage (IF P.C Board) Less than 2% 520 kHz Optloml input.
adjustment
Bar Antenna core
2 Sensitivity I T-? (VLW, BLK) Maximum 2 / KHZ U ml , t
adjustment T-4 (WHT) sensitivity )-U Op 0 inpu '
(IF P.C Board)
High Range
Frequency AM TCo error: . ,
3 Coverage (Front End) Less than 2% 1-400 kHz optional inpm.
- adjustment
Sensitivity AM TCA Maximum . .
4 .
adjustment (Front End) sensitivity 1-400 kHz Optlonal input

NOTE: Repeat procedures in STEPS 1 through 4 two or three times.

Chart»3

II
