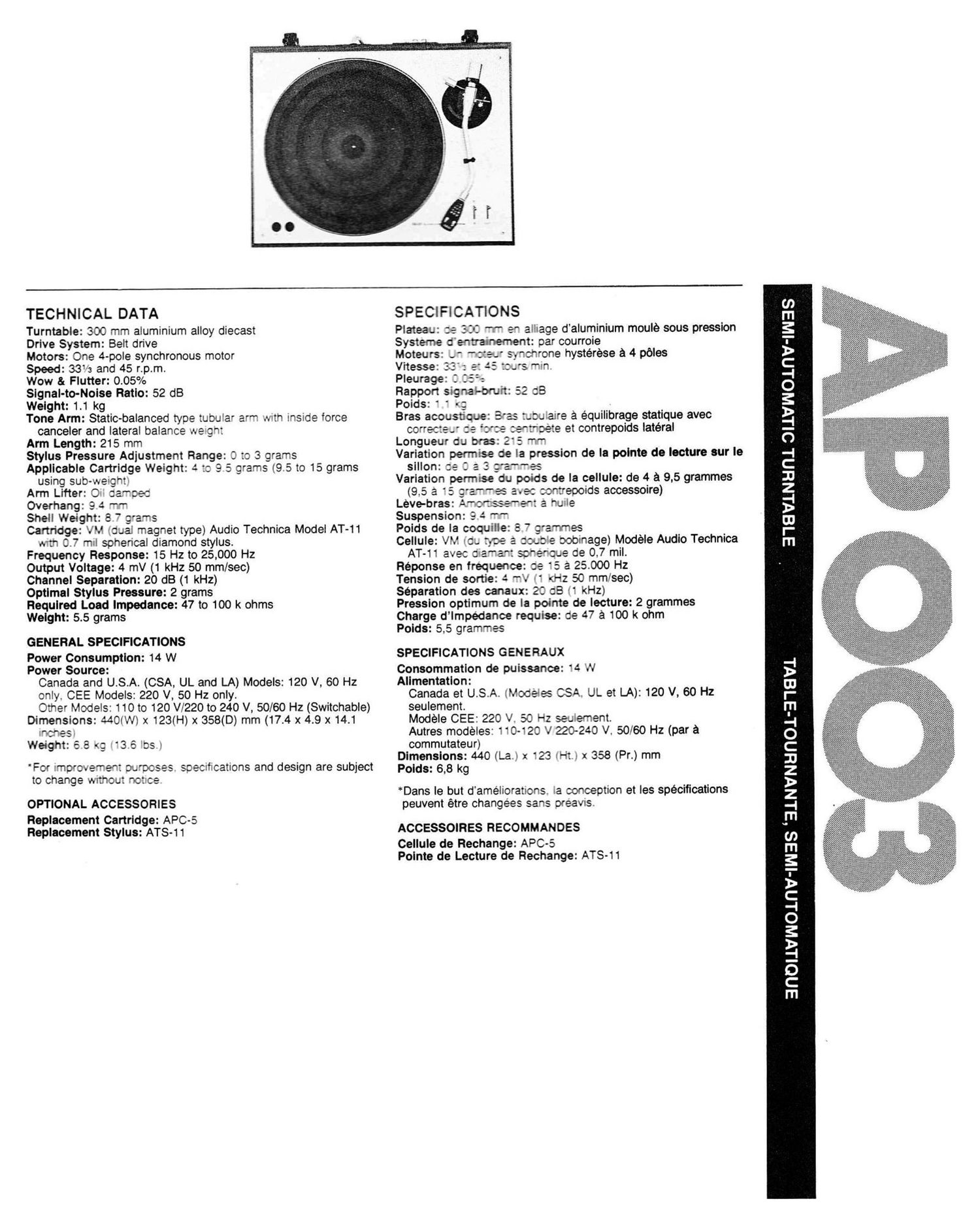

Extracted text from Akai ap 003 brochure (Ocr-read)


Page 1

TECHNICAL DATA

Turntable: 300 mm aluminium alloy diecast

Drive System: Belt drive

Motors: One 4-pole synchronous motor

Speed: 33": and 45 rpm.

Wow & Flutter: 0.05%

Signal-to-Noise Ratio: 52 dB

Weight: 1.1 kg

Tone Arm: Static-balanced type tubular arm :th inside force
canceler and lateral balance wegh:

Arm Length: 215 mm

Stylus Pressure Adjustment Range: 0 to 3 grams

Applicable Cartridge Weight: 4 t: 9 5 grams (9.5 to 15 grams
using sub-weights

Arm Lifter: Oi :‘mpec

Overhang: 9 4 ......

Shell Weight: 8 7’ g'ams

Cartridge: VM :dual magnet type) Audio Technica Model AT-11
mm 0.7 ”1H spherical diamond stylus.

Frequency Response: 15 Hz to 25,000 Hz

Output Voltage: 4 mV (1 kHz 50 mm/sec)

Channel Separation: 20 dB (1 kHz)

Optimal Stylus Pressure: 2 grams

Required Load Impedance: 47 to 100 k ohms

Weight: 5.5 grams

GENERAL SPECIFICATIONS

Power Consumption: 14 W
Power Source:
Canada and USA. (CSA, UL and LA) Models: 120 V, 60 Hz
only. CEE Models: 220 V, 50 Hz only.
Other Models: 110 to 120 V/220 to 240 V, 50/60 Hz (Switchable)
Dimensions: 440(W) x 123(H) x 358(D) mm (17.4 x 4.9 x 14.1
Inches:

Weight: 6 E (g ‘36 lbs)

'Fcr improvement 005005-35: specifications and design are subject
to change Without nctce:

OPTIONAL ACCESSORIES

Replacement Cartridge: APC-5
Replacement Stylus: ATS-11

SPECIFICATIONS

Plateau: 3,5 32-: ~r~: e" alliage d'aluminium moule sous pression

Systeme d'entrainernent: par courroie

Moteurs: -- “-3-15‘.’ snohrone hysterese a 4 poles

V'rtesse: 33‘: e: 45 ::-..'s "‘ilf'l,

Pleurage: Z :51:

Rapport signal—bruit: 52 GB

Poids: ‘ ' r;

Bras acoustique: Eves Louiaire a equilibrage statique avec
corrects; :e ‘:-':‘e :Vertnpete et contrepoids lateral

Longueur du bras: 2‘ E ”rm

Variation permise de la pression de la pointe de lecture sur la
sillon: :e I a 3 2'3””35

Variation permise du poids de la cellule: de 4 a 9.5 grammes
(9.5 a *5 g'a""es 5.5-: contrepoids accessoire)

Levebras: A-:-ts:~e~ec: a nude

Suspension: 3 4 N“

Poids de la coquille: 5 7 gran-mes

Cellule: VM (CL. :0:— e :cc‘o‘e oobinage) Modele Audio Technica
AT-11 avec drama": spreccue de 0.7 mil.

Reponse en trequenoe: 3e ‘5 a 25.000 Hz

Tension de sortie: 4 ~\: i‘ (Hz 50 mm/sec)

separation dee canaux: 2: dB (1 kHz)

Pression optimum de la pointe de lecture: 2 grammes

Charge d'lmpedance requise: de 47 a 100 k ohm

Poids: 5.5 grammes

SPECIFICATIONS GENERAUX

Consommation de puissance: 14 W

Allmentation:
Canada et U.S.A. (Modeles CSA. UL et LA): 120 V, 60 Hz
seulement.
Modele CEE: 220 V. 50 Hz seulement.
Autres modeles: 110-120 V 220-240 V. 50/60 Hz (par a
commutateur)

Dimensions: 440 (Le) x 123 (Ht) x 358 (Pr.) mm

Polds: 6,8 kg

*Dans le but d‘améliorations. la conception et les specifications
peuvent étre changees sans preavis.

ACCESSOIRES RECOMMANDES

Cellule de Rechange: APC.5
Pointe de Lecture de Rechange: ATS-11
