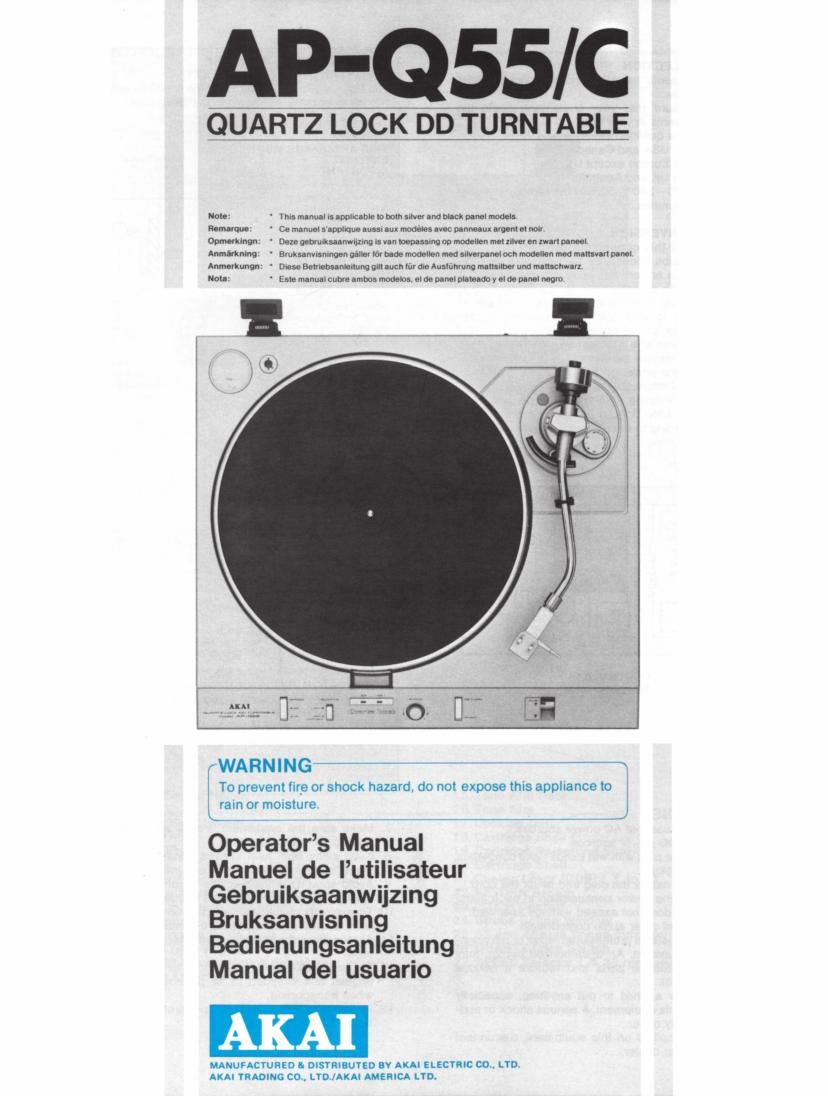

Akai AP Q55 AP Q55 C Owners Manual

This is the 9 pages manual for Akai AP Q55 AP Q55 C Owners Manual.
Read or download the pdf for free. If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.

Page: 1 / 9
left right
Akai AP Q55 AP Q55 C Owners Manual

Extracted text from Akai AP Q55 AP Q55 C Owners Manual (Ocr-read)


Page 2

WARNING

VOLTAGE SELECTION

Power requirements for electrical equipments diiler
from area to area.

Please make sure that your equipment meets the
power requirements in your area.

If in doubt, ask a qualified electrician.

120 V, 60 Hz in USA and Canada

220 V, 50 Hz in Europe except UK

240 V, 50 Hz in UK and Ausnalia

110-120 V/220-24O V, 50/60 Hz internally switcha-
ble for other countries.

VOLTAGE CONVERSION

Do not attempt this conversion yourself.

Voltage conversion (Models for Canada, USA, Europe,

UK and Australia are not equipped with this facility).

Each machine is preset at the iactory according to

destination, but some machines can be set to

110-120 V or to 220-240 V as required. It your

machine's voltage can be converted, reiar the iollowing

voltage conversion to a qualiiied Service Repair Shop

or protessional service personnel.

I. Disconnect the power cord.

2. Remove the bottom cover.

3. Remove the existing Line Voltage Fuse and insert
the required Line Voltage Fuse in the proper iuse
holder according to the printed instructions.

V? O
Zd
AOVZ-OZZ
A03 I. -OL l

110-120V: BAA
220-240V: 0.111

P REC A U T IO N S

1, Use only household AC power sources.
Never use DC power sources.

2. Touching the plug with wet hands risks dangerous
electric shocks.

Always pull out by the plug and never the cord.

3. Make sure the power consumption to each audio
component does not exceed wattage specified.
Only connect other audio components.

4, Only let a qualified proiessional repair or reassem-
ble the equipment. An unauthorized person may
touch the internal parts and receive a serious
electric shock.

5. Never allow a child to put anything, especially
metal into this equipment. A serious shock or mal-
iunction may occur.

6. Ii water is spilled on this equipment. disconnect
and call your dealer.

___fi
Goa CUSTOMERS IN THE UK

IMPORTANT FOR YOUR SAFETY
The Ilex supplied with your machine will have either
two wires or three as shown In the Illustrations.

THREE CORE FLEX

WARNING

THIS APPARATUS MUST BE

EARTHED Green/Yellow
IMPORTANT (5W0

The wires in this mains lead are col-
oured In accordance with the iollowlng
code: Green-and-yellow: Earth
Blue: Neutral.
Brown: Live
As the colours oi the wires In the mains
lead oi thla apparatua may not corre-
spond with the coloured markings
identiiylng the iermlnala In your plug.
proceed as iollowa:
The wire which la coloured green-and
yellow must be connected to the ter-
minal In the plug which la marked by
the letter E or by the aaIety earth ayrn- 3|". 3'0-!"
hot tr or coloured green or coloured (Neutral) (UV')
green-and-yellow.
The wire which Ia coloured blue rnuat be connected to the ter-
rlIihll which to marked with the letter N or coloured black.
Yhd wire which la coloured brown mutt he 60an b the Dr-
mlnal which ia marked with the Ietbr L of cobured rid.

TWO CORE FLEX
IMPORTANT
The wlrea In thla melna lead are col- L
cured in accordance with the ioilowihg
code: Blue: Neutral. N
Brown: Live
Mmeoiounoiflliwminmmm
lead of title apparel-! III-y meanes-
pohd with the eoioured mm Iden-
tliylng the Marina}. in your Dim. pro-
ceed aa ioIIowa:
The wire which II Wed Nu. muet
heoonnecbdbthehrrnihalwhlch la
mmuwunmuumm Blur
black. (Neutral)
The wire which heeletued Drown must
be connected b the hrrninal which is
markedwiththaletbrLorcoleured
M.
' Donotconnectanywirebthelargarpin markedEor 1,
when wiring a pita. Ensure that all terminate are aecuraiy
\ Wamlhetnolooeeetrandaoiwinexlst J
W

FOR CUSTOMERS IN AUSTRALIA W
Iiyourrnaehineoorneawith amueoorepowrcord. FOR YOUR

Brown
(Live)

I. Ina-rt thia plug only Into an aiiectively earthed three-pin plug
locket outiet.

2. ii any doubt axlata regarding the earthlng. consult a quaililed
eiecirician.

3. Extenaion oorda. It used. muat be three core correctiy

L wired. J

7. Make sure the equipment is well ventilated and
away from direct sunlight.

8. Keep away from heat (stoves, etc.) to avoid da-
mage to the external surface and internal circuits.

9. Avoid spray-type Insecticides which will damage
the equipment and may ignite suddenly.

10. To avoid damaging the finish never use alcohol,
paint thinner or other similar chemicals.

1 1. Always place the equipment on a flat and solid sur-
iace.

12. To avoid damages, place the turntable in its
original box wrapped in its protective wrappers
when transporting.

13. Please read this manual in its entirety and keep it
handy ior further reierence.
