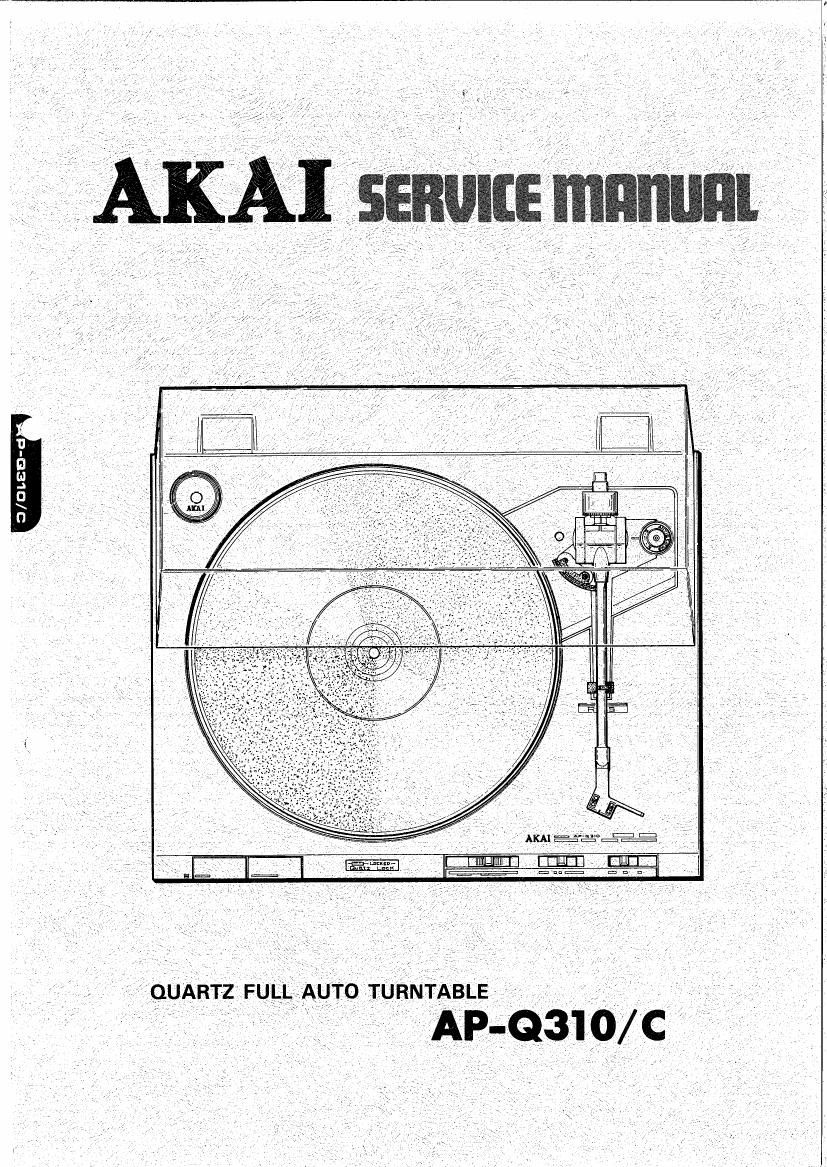

Akai AP Q310 Service Manual

This is the 53 pages manual for Akai AP Q310 Service Manual.
Read or download the pdf for free. If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.

Page: 1 / 53
left right
Akai AP Q310 Service Manual

Extracted text from Akai AP Q310 Service Manual (Ocr-read)


Page 2

\\/

\/

QUARTZ FULL AUTO TURNTABLE

MODEL AP'Q310/C

This manual is applicable to both silver and pearl shadow panel models.

TABLE OF CONTENTS

SECTION 1 SERVICE MANUAL
SECTION 2 PARTS LIST
SECTION 3 SCHEMATIC DIAGRAM ..

Page 6

II. DISMANTLING OF UNIT

In case of trouble, etc‘ necessitating dismantling, please
dismantle in the order shown in the photographs.
Reassemble in reverse order.

PLATTER

3%
$9137,

DUST COVER—>

SCREWS

Page 9

V. VOLTAGE AND CYCLE CONVERSION

)_'<- Fl F2
llO,l20V AREA 500mA 250v OPEN
220,24ov AREA OPEN 500mA 250v

Fig. 3 Voltage Conversion (U Model only)

1. VOLTAGE CONVERSION 2. CYCLE CONVERSION
Models for Japan, Canada, USA, Europe, UK and Aus- With DC servo motor, cycle conversion is not necessary.
tralia are not equipped with this facility
Each unit is preset at the factory depending on its destin-
ation, but some units can be converted to 110-120V or to
220-240V as required.
If voltage change is necessary, this can be accomplished
as follows:
1) Disconnect the power cord‘
2) Remove the bottom cover.
3) Remove the existing Line Voltage Fuse and insert the
required Line Voltage Fuse in the proper fuse holder
according to the printed instructions.
