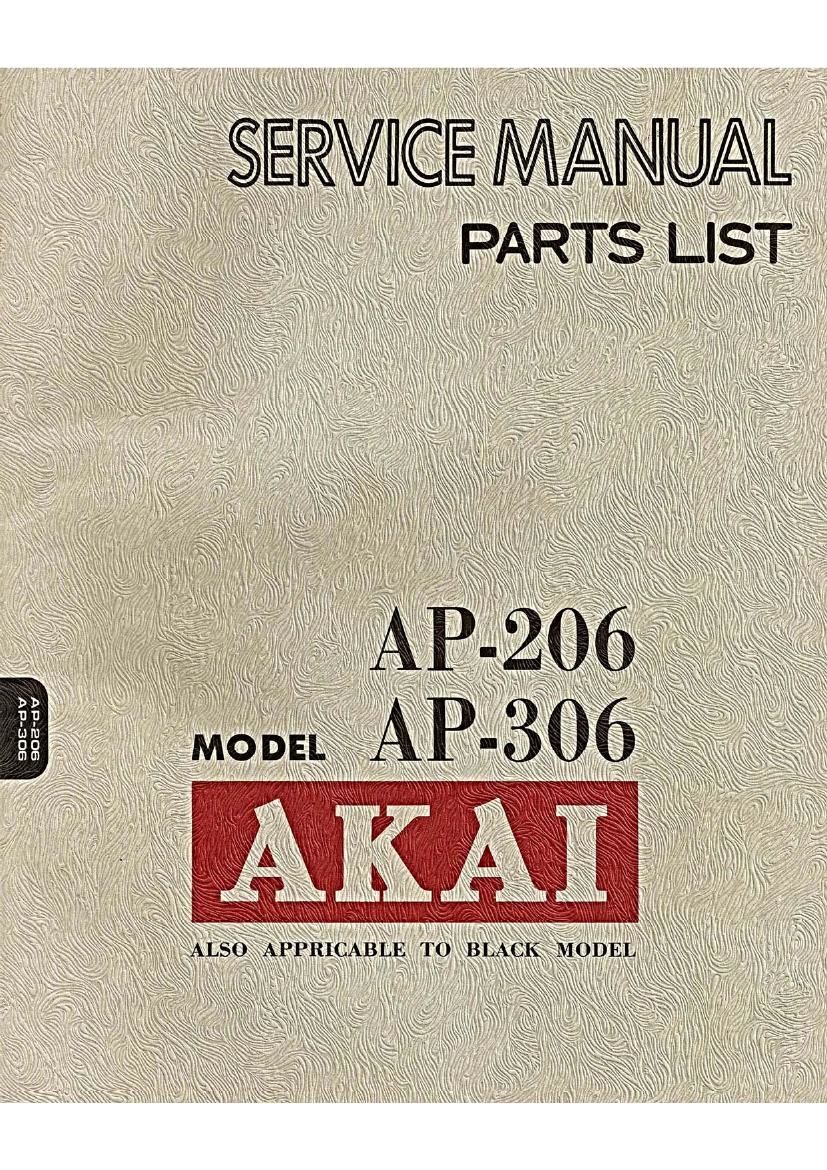

Akai AP 206 Service Manual

Extracted text from Akai AP 206 Service Manual (Ocr-read)


Page 2

AP-306

AKAI DIRECT DRIVE TURNTABLE
AND
AKAI DIRECT DRIVE QUARTZ LOCK TURNTABLE

MODEL AP-206
MODEL AP'306

ALSO APPLICABLE TO BLACK MODEL

SECTION 1 SERVICE MANUAL ........................ 3
SECTION 2 PARTS LIST ............................. 31
SECTION 3 SCHEMATIC DIAGRAM ..................... 48

Page 17

—W

CABINEY

Fig. 13


MICRO SWIYCH
(SWQOI)

‘ — SEESAW LEVER


AUTO LEVER

RETURN CAM

Fig. 12

3. SLEEVE POSITION ADJUSTMENT
(Refer to Fig. 13)

The sleeve position adjusts antiskating feature.

1) Put the tone arm in the “stop" state, or on the
arm rest.

2) Set the sleeve, located between the PU Plate and
the chassis, to approximately 45° position as
shown in Fig. 13.

4. PU PLATE ADJUSTMENT (Refer to Fig. 12)

1) Put the tone arm in the “stop" state.

2) Loosen the screws (b) and (c).

3) Adjust the PU plate (A) so that it may actuate the
micruswitch to turn on or off properly.

4) Tighten the screws (b) and (c).

5) Temporarily set the screw (8) in a half screwed
position.

16
