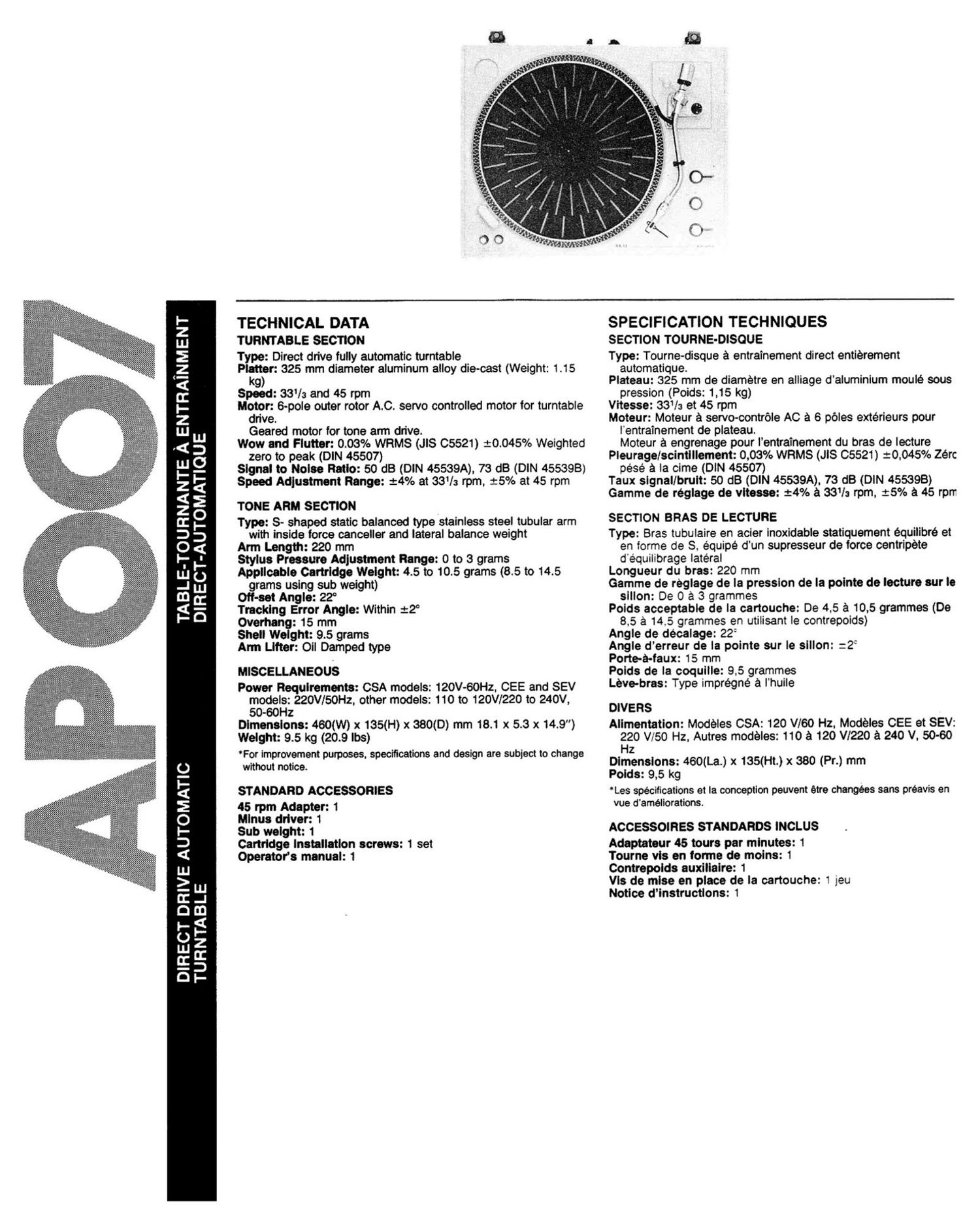

Akai AP 007 Brochure

Extracted text from Akai AP 007 Brochure (Ocr-read)


Page 1

I'-
Z
LIJ
E
Z
<
O:
)-
2
LIJ

'<
LIJ
I-
Z
<
Z
I
D
O
-™7
LLI
.J
2
[-

DIRECT DRIVE AUTOMATIC

TURNTABLE

DIRECT-AUTOMATIQUE

TECHNICAL DATA
TURNTABLE SECTION

Type: Direct drive fully automatic turntable

Platter: 325 mm diameter aluminum alloy die-cast (Weight: 1.15
kg)

Speed: 33-˜/3 and 45 rpm

Motor: 6-pole outer rotor A.C. servo controlled motor for turntable
dnve.
Geared motor for tone arm drive.

Wow and Flutter: 0.03% WRMS (JIS 05521) :0.045% Weighted
zero to peak (DIN 45507)

Signal to Noise Ratio: 50 dB (DIN 45539A). 73 dB (DIN 45539B)

Speed Adlustment Range: 14% at 331/3 rpm, 25% at 45 rpm

TONE ARM SECTION

Type: S- shaped static balanced type stainless steel tubular arm
with inside force canceller and lateral balance weight

Arm Length: 220 mm

Stylus Pressure Adlustrnent Range: 0 to 3 grams

Applicable Cartridge Weight: 4.5 to 10.5 grams (8.5 to 14.5
grams using sub weight)

OïŹ‚-set Angle: 22°

Tracking Error Angle: Within :1?

Overhang: 15 mm

Shell Weight: 9.5 grams

Arm Lifter: Oil Damped type

MISCELLANEOUS

Power Requirements: CSA models: 120V-60Hz. CEE and SEV
models: 220V/50Hz, other models: 110 to 120V/220 to 240V,
50-60Hz

Dimensions: 460(W) x 135(H) x 380(0) mm 18.1 x 5.3 x 14.9-)

Weight: 9.5 kg (20.9 lbs)

-™For improvement purposes. specifications and design are subject to change
without notice.

STANDARD ACCESSORIES

45 rpm Adapter: 1

Minus driver: 1

Sub weight: 1

Cartridge Installation screws: 1 set

Operator-™s manual: 1

SPECIFICATION TECHNIQUES
SECTION TOURNE-DISOUE

Type: Tourne-disque a entrainement direct entierement
automatique.

Plateau: 325 mm de diametre en alliage d'aluminium moulé sous
pression (Poids: 1.15 kg)

Vitesse: 331/: et 45 rpm

Moteur: Moteur a servo-controle AC a 6 poles extérieurs pour
I'entrainement de plateau.
Moteur a engrenage pour l-™entrainement du bras de lecture

PIeurage/scintlliement: 0,03% WRMS (JlS 05521) :0.045% ZĂ©rc
pésé a la cime (DIN 45507)

Taux signal/bruit: 50 dB (DIN 45539A), 73 dB (DIN 455398)

Gamme de reglage de vitesse: 24% a 33-˜]: rpm, 15% a 45 rprr

SECTION BRAS DE LECTURE

Type: Bras tubulaire en acier inoxidable statiquement équiiibré et
en forme de 8. Ă©quipĂ© d-˜un supresseur de force centripete
d'equilibrage lateral

Longueur du bras: 220 mm

Gamme de r-˜eglage de la pression de la pointe de lecture sur le
sillon: De 0 -˜a 3 grammes

Poids acceptable de la cartouche: De 4.5 a 10,5 grammes (De
8,5 a 14.5 grammes en utilisant Ie contrepoids)

Angle de decalage: 22:

Angie d-™erreur de la pointe sur Ie sillon: :2:

Porte-a-faux: 15 mm

Poids de la coquilie: 9.5 grammes

Leve-bras: Type impregnĂ© a l-˜huile

DIVERS

Allmentation: Modeles CSA: 120 V/60 Hz. Modeles CEE et SEV:
220 V/50 Hz, Autres modeles: 110 a 120 V/220 a 240 V, 50-60
Hz

Dimensions: 460(La.) x 135(Ht.) x 380 (PL) mm

Poids: 9.5 kg

*Les speciïŹcations et la conception peuvent etre changees sans preavis en
vue d'améliorations.

ACCESSOIRES STANDARDS INCLUS

Adaptateur 45 tours par minutes: 1

Tourne vis en forme de moins: 1
Contrepoids auxiliaire: 1

Vls de mise en place de la cartouche: 1 )eu
Notice d-™instructlons: 1
