Akai AM V1200 Service Manual

Extracted text from Akai AM V1200 Service Manual (Ocr-read)

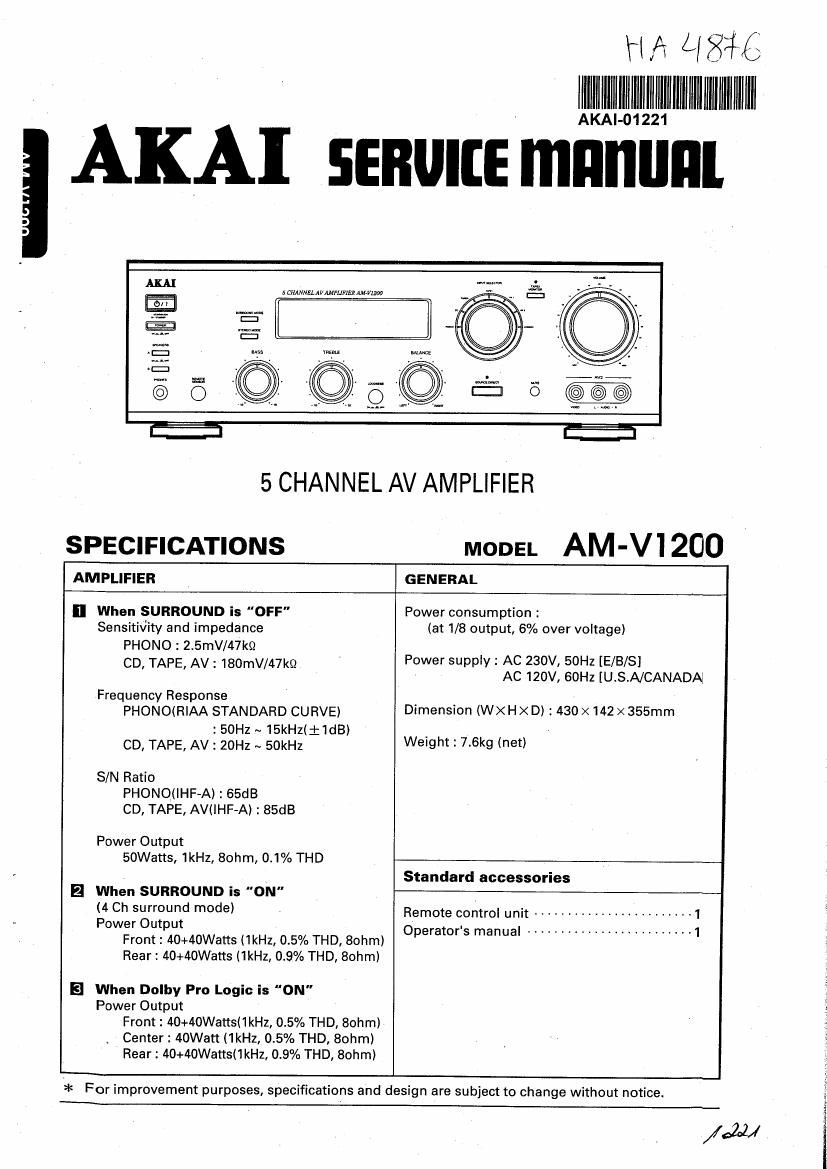

Page 1

lllllililllllllilllllll

AKAI-01221

83%

illllllllliillillllilllflllllll

AKAI SEIWItEmllnlllll

5 WNELAVAMHIFIEK AIM-VIM

E-
5 CHANNEL AV AMPLIFIER
SPECIFICATIONS MODEL AM-Vi 200
AMPLIFIER GENERAL

When SURROUND is -OFF"
Sensitivity and impedance
PHONO : 2.5mV/47ks2
CD, TAPE, AV: 180mV/47k0

Frequency Response
PHONOiRIAA STANDARD CURVE)
:50Hz ~ 15kHzii1dB)
CD, TAPE, AV : ZOHz ~ 50kHz

S/N Ratio
PHONO(|HF-A) : 65dB
CD, TAPE, AV(IHF-A) : 85dB

Power Output
50Watts, 1kHz, 8ohm, 0.1% THD

When SURROUND is "ON"
(4 Ch surround mode)
Power Output
Front: 40+40Watts (1kHZ, 0.5% THD, 80hm)
Rear: 40+40Watts (1kHz, 0.9% THD, 80hm)

When Dolby Pro Logic is "ON"
Power Output
Front : 40+40Watts(1kHz, 0.5% THD, 80hm)
Center: 40Watt (1kHz, 0.5% THD, 80hm)
Rear : 40+40Watts(1kHz, 0.9% THD, 80hm)

Power consumption :
(at 1/8 output, 6% over voltage)

Power supply: AC 230V, 50Hz [E/B/S]
AC 120V, GOHZ [USA/CANADAi

Dimension (WXHXD) : 430x 142 X355mm

Weight : 7.6kg (net)

Standard accessories

Remote control unit ------------------------ 1
Operator-s manua' ......................... 1

* For improvement purposes, specifications and design are subject to change without notice.

/¢2°2,/

Page 2

CONTENTS

SAFETY INSTRUCTIONS ..................... , .................................. 3
DISASSEMBLY ................................................................ 4
PRINCIPAL PARTS LOCATION ................................................... 5 .
IC PIN FUNCTION .............................................................. 5
WIRING DIAGRAM .......................... . ................................... 3
BLOCK DIAGRAM .............................................................. 9
ACTIVEDEVICESVOLTAGE-~v--~~~~'~~-~--~~~-~---~----~--- ................. 11
SCHEMATIC DIAGRAM ...................................... .' ................. 13
PRINTED CIRCUIT BOARDS ................................................... 21
EXPLODEDVIEW--------------------------j .................................. 27
PARTS LIST ..................................................... » ............. 29
