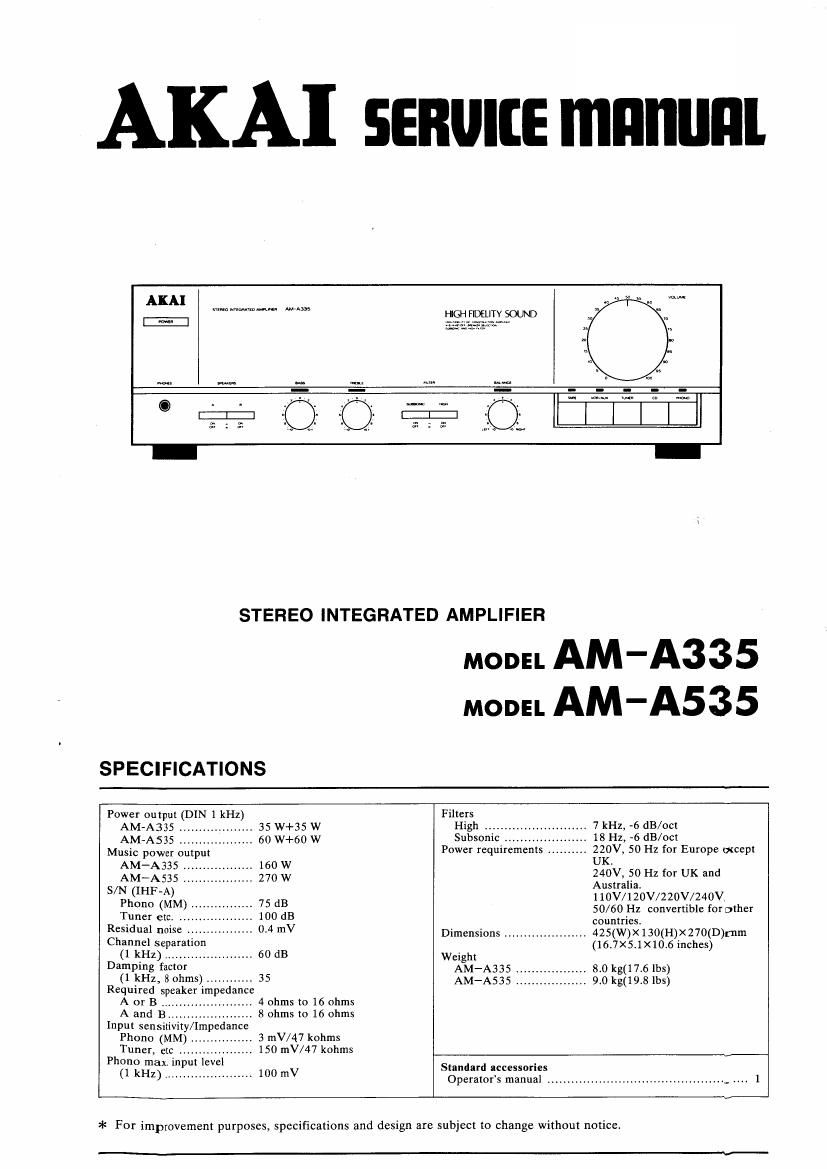

Akai AM A335 Service Manual

This is the 16 pages manual for Akai AM A335 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 16
Akai AM A335 Service Manual

Extracted text from Akai AM A335 Service Manual (Ocr-read)


Page 2

*SAFETY INSTRUCTIONS

PRECAUTIONS DURING SERVICING

1. Parts identified by the a(*) symbol parts are critical
for safety. Replace only with parts number specified.

2. In addition to safety, other parts and assemblies are
specified for conformance with such regulations as
those applying to spurious radiation.

These must also be replaced only with specified re<
placements.

Examples: RF converters, tuner units, antenna selec-
tor switches, RF cables, noise blocking capacitors,
noise blocking filters, etc.

3. Use specified internal wiring. Note especially:

1) Wires covered with PVC tubing
2) Double insulated wires
3) High voltage leads

4. Use specified insulating materials for hazardous live

parts. Note especially:

1) Insulation Tape

2) PVC tubing

3) Spacers (Insulating Barriers)

4) Insulation sheets for transistors

5) Plastic screws for fixing microswitch (especially in
turntable)

5. When replacing AC primary side components (trans-
formers, power cords, noise blocking capacitors,
etc.), wrap ends of wires securely about the terminals
before soldering.

strain?

6. Observe that wires do not contact heat producing
parts (heatsinks, oxide metal film resistors, fusible
resistors, etc.).

*INFORMATION

7. Check that replaced wires do not contact sharp edged
or pointed parts.

8. Also check areas surrounding repaired locations.

9. Use care that foreign objects (screws, solder dro-
plets, etc.) do not remain inside the set.

SAFETY CHECK AFTER SERVICING

After servicing, make measurements of leakage-current
or resistance in order to determine that exposed parts
are acceptably insulated from the supply circuit.

The leakage-current measurement should be done be-
tween accessible metal parts (such as chassis, ground
terminal, microphone jacks, signal-input/output con-
nectors, etc.) and the earth ground through a resister of
1500 ohms paralleled with a 0.15 uF capacitor, under
the units normal working conditions. The leakage-cur-
rent should be less than 0.5 mA rms AC.

The resistance measurement should be done between
accessible exposed metal parts and power cord plug
prongs with the power switch (if included) ON. The
resistance should be more than 2.2 Mohms.

SYMBOLS FOR PRIMARY DESTINATION

Alphabet indicates the destination of the units as listed
below.

Symbols Principal Destinations
USA
UK
Canada
Europe (except UK)
Japan
[1| Australia
W. Germany only
Universal Area
Custom version

SERVICE MANUAL

VOLTAGE CONVERSION
(El Model only)

Before connecting the power cord. Set the VOLTAGE
SELECTOR located on the rear panel with a screw-
driver so that the correct voltage is indicated.

220v / X 240v
nov 1 av

VOLTAGE SELECTOR
