Akai AM A2 Schematic

Extracted text from Akai AM A2 Schematic (Ocr-read)

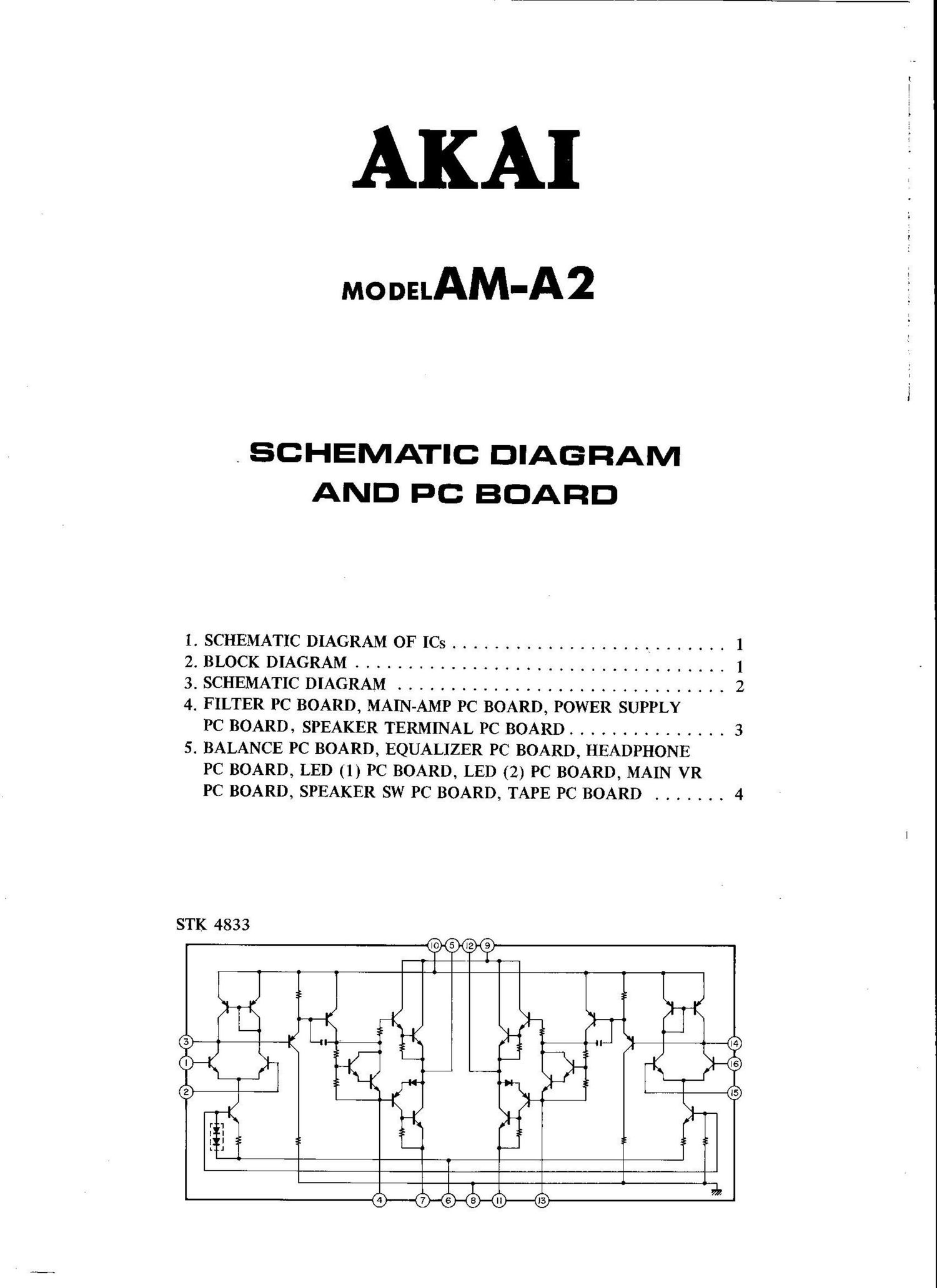

Page 1

AKA]

MODELAM-A2

_ SCHEMATIC DIAGRAM
AND PC BOARD

1. SCHEMATIC DIAGRAM OF ICs ................... , ....... 1
2. BLOCK DIAGRAM ................................... 1
3. SCHEMATIC DIAGRAM ............................... 2
4. FILTER PC BOARD, MAIN-AMP PC BOARD, POWER SUPPLY

PC BOARD, SPEAKER TERMINAL PC BOARD ............... 3

5. BALANCE PC BOARD, EQUALIZER PC BOARD, HEADPHONE
PC BOARD, LED (1) PC BOARD, LED (2) PC BOARD, MAIN VR
PC BOARD, SPEAKER SW PC BOARD, TAPE PC BOARD ....... 4

STK 4833
