Akai AM 73 Service Manual

This is the 34 pages manual for Akai AM 73 Service Manual.
Read or download the pdf for free. If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.

Page: 1 / 34
left right

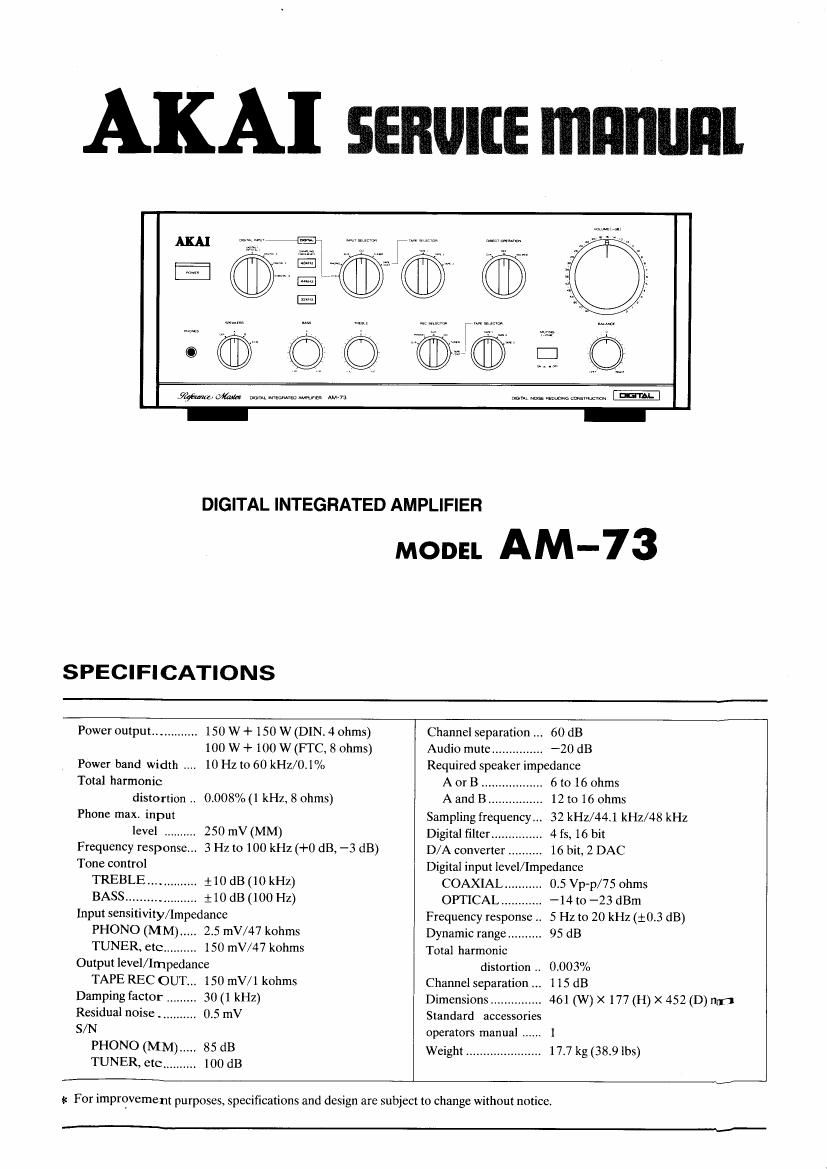

Akai AM 73 Service Manual

Extracted text from Akai AM 73 Service Manual (Ocr-read)


Page 2

* SAFETY INSTRUCTIONS

PRECAUTIONS DURING SERVICING

1. Parts identified by theA(*) symbol parts are critical for

safety. Replace only with parts number specified.

2. In addition to safety, other parts and assemblies are speci-
fied for conformance with such regulations as those apply-

ing to spurious radiation.

These must also be replaced only with specified replace-

merits.

Examples: RF converters, tuner units. antenna selector
switches, RF cables, noise blocking capacitors, noise block»

ing filters, etc.
3. Use specified internal wiring. Note especially:
1) Wires covered with PVC tubing
2) Double insulated wires
3) High voltage leads

4. Use specified insulating materials for hazardous live parts.

Note especially:

1) Insulation Tape

2) PVC tubing

3) Spacers (Insulating Barriers)
4) Insulation sheets for transistors

5) Plastic screws for fixing microswitch (especially in turn—

table)

5. When replacing AC primary side components (trans-
formers, power cords, noise blocking capacitors, etc.), wrap

ends of wires securely about the terminals before soldering.

§fifco c> /é®k

6. Observe that wires do not contact heat producing parts

(heatsinks, oxide metal film resistors, fusible resistors, etc).

* INFORMATION

7. Check that replaced wires do not contact sharp edged or
pointed parts.

8. Also check areas surrounding repaired locations.

9. Use care that foreign objects (screws, solder droplets, etc.)
do not remain inside the set.

SAFETY CHECK AFTER SERVICING

Confirm the specified insulation resistance between power
cord plug prongs and externally exposed parts of the set is
greater than 10 M ohms. but for equipment with external an-
tenna terminals (tuner, receiver, etc.) and is intended for C or
A , specified insulation resistance should be headphone jacks
line-in-out jacks etc. more than 2.2 M ohms (ground terminals,
microphone jacks).

SYMBOLS FOR PRIMARY DESTINATION

Alphabet indicates the destination of the units as listed below.

Symbols Principal Destinations

>

USA

UK

Canada

Europe (except UK)

Japan

Australia

W. Germany only

Universal Area

EEBEIHBEI

Custom version

SERVICE MANUAL

VOLTAGE CONVERSION (I Model only)

Before connecting the power cord. SET the VOLTAGE SE7
LECTOR located on the rear panel with a screwdriver so that
the correct voltage is indicated


120V 110V
240V 220V

VOLTAGE SELECTOR
