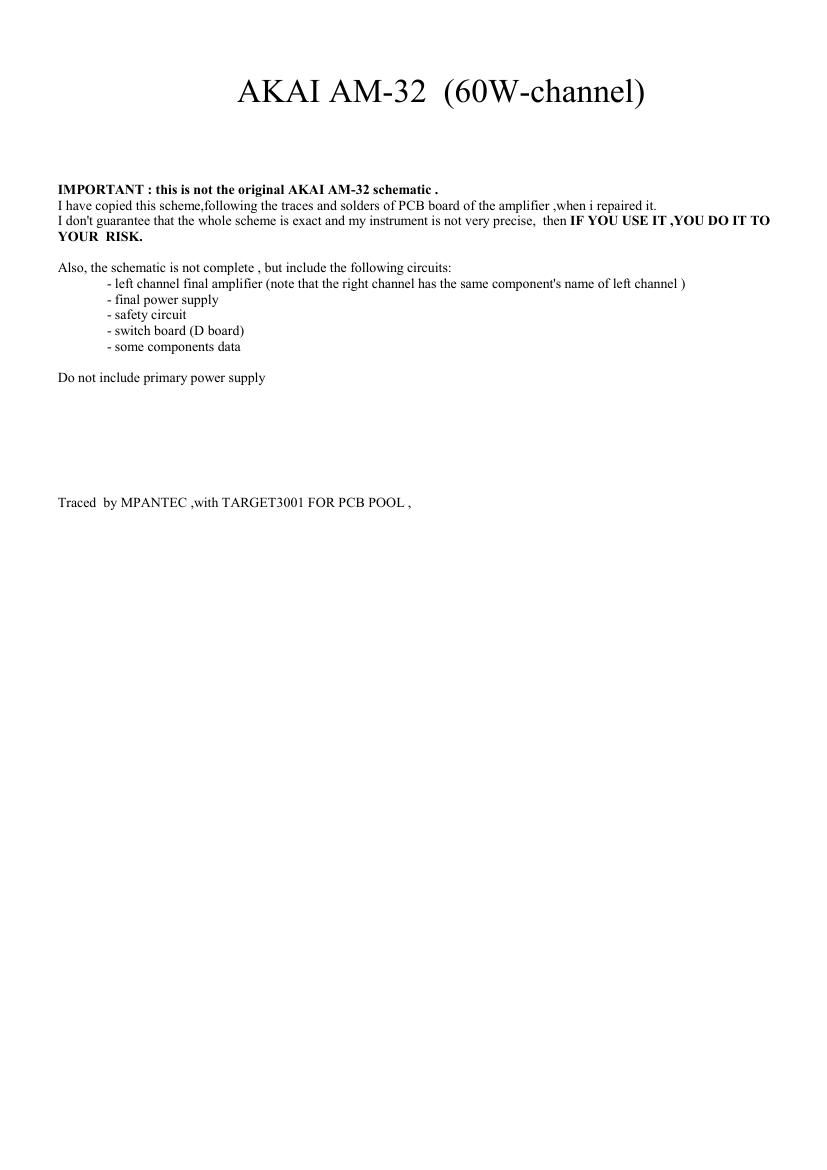

AKAI AM-32 (6OW-channel)

IMPORTANT : this is not the original AKAl AM-32 schematic .

l have copied this scheme,following the traces and solders of PCB board of the amplifier ,when i repaired it‘

I don't guarantee that the whole scheme is exact and my instrument is not very precise, then IF YOU USE IT ,YOU DO IT TO
YOUR RISK.

Also, the schematic is not complete , but include the following circuits:
- left channel final amplifier (note that the right channel has the same component's name of left channel )
- final power supply
- safety circuit
- switch board (D board)
- some components data

Do not include primary power supply

Traced by MPANTEC ,with TARGET3001 FOR PCB POOL ,
