Akai AC 3800 Service Manual
This is the 70 pages manual for Akai AC 3800 Service Manual.
Read or download the pdf for free.
If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.
Extracted text from Akai AC 3800 Service Manual (Ocr-read)
Page 1

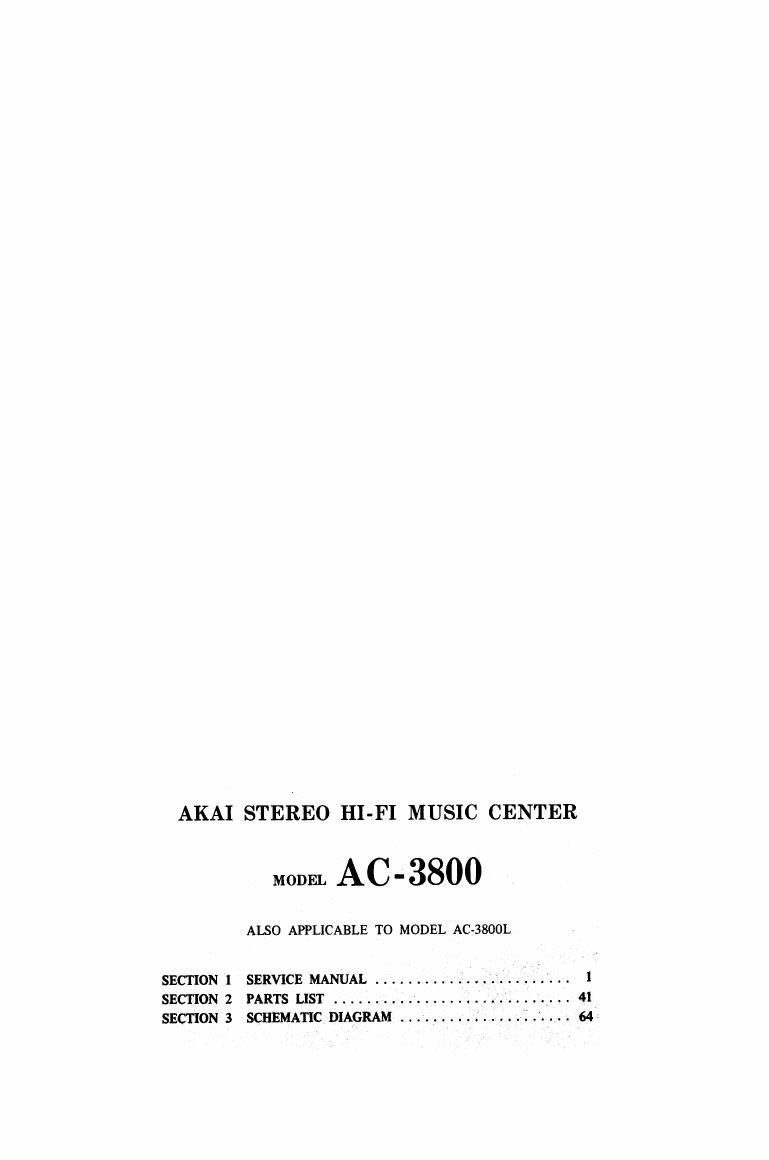

AKAI STEREO HI-FI MUSIC CENTER
MODEL AC-3800
A150 APPLICABLE TO MODEL AC-3800L
SECTION 1 SERVICE MANUAL ....... ..... .. 1
SECTION 2 PARTS LIST .................... 41,
SECTION 3 SCHEMATIC DIAGRAM ...... 64'»
Page 2
SECTION 1
SERVICE MANUAL
TABLE OF CONTENTS
I. TECHNICAL DATA ..................................... 2
II. DISMANTLING 0F UNIT ................................. 4
III. CONTROLS .......................................... 6
IV PRINCIPAL PARTS LOCATIONS ........................... 10
V OPERATING PRINCIPLES OF VARIOUS CIRCUITS .............. 12
1, DIFFERENTIAL PEAK DETECTOR ....................... l2
2. VARACTOR TUNER AND PRESET TUNING SYSTEM .......... 13
VI. LEVEL DIAGRAM ..................................... 16
VII. TUNER ADJUSTMENT .................................. 17
1. FM TUNER SECTION ADJUSTMENT FOR
MODEL ACA3800 AND AC-3800L ........... 18
2. MW TUNER SECTION ADJUSTMENT FOR
MODEL AC-3800 ....................... 19
3. LW, MW TUNER SECTION ADJUSTMENT FOR
MODEL AC-3800L ...................... 20
VIII. TUNING CORD THREADING .............................. 21
IX. CASSETTE RECORDER MECHANISM ADJUSTMENT ............. 22
1. TAKE-UP TORQUE AT VARIOUS MODES AND
TORQUE MEASURING METHOD ........... 22
2. TAPE SPEED ADJUSTMENT ............................ 22
3. PINCH ROLLER PRESSURE MEASUREMENT ................ 22
4. ADJUSTMENT OF GAP BETWEEN THE PINCH ROLLER ARM
AND STOPPER ........................ 22
5. FLYWHEEL THRUST LOOSE PLAY ADJUSTMENT ............ 23
X. CASSETTE RECORDER HEAD ADJUSTMENT .................. 24
XI. CASSETTE RECORDER'AMPLIFIER ADJUSTMENT ............. 25
XII. TURN TABLE SECTION ADJUSTMENT ...................... 27
1. RETURN POSITION ADJUSTMENT ....................... 27
2. OVERHANG ADJUSTMENT ............................. 27
3, STYLUS PRESSURE ADJUSTMENT ....................... 27
XIII. DC RESISTANCE OF VARIOUS COILS ....................... 28
XIV. CLASSIFICATION OF VARIOUS P.C BOARDS ................. 28
For basic adjustments measuring methods. and operating principles. refer to GENERAL
OPERATING PRINCIPLES AND ADJUSTMENTS.
Page 29
XIII. DC RESISTANCE OF
VARIOUS COILS
Part Designation DC Resistance
Recording/Playback Head HN424522 7 160 ohms
i777 77777 I; also Head BF168-3o 4.7 ohms
PlungerNSolenoid I P-14W 47 ohms
Chart 5
XIV. CLASSIFICATION OF VARIOUS P.C BOARDS
14 RELATION OF P.C BOARD TITLE AND IDENTIFICATION NUMBER
PIC Board Number of P.C Board
Tone Control, Rec/PB Amp P.C Board AC»3501A
LED P.C Board AC-3SOIB
Lamp BC Board (A) AC-3501C
riamp P.C Board (B) AC-3501D
I-Ieadphone-™ PrC Board AC-3501E
Beat Switch Pic Board AC-350lF
Multi Function P.C Board AC-3801A
Power Supply, Sys. Con and OSC P.C Board AC-3503
Main Amp P.C Board AC-3SO4
Touch SW P.C Board AC-3802
IC PIC Board AC-3803
Volume PrC Board AC-3804
Vari Con P.C Board . AC-3801B
Mme Switch P.C Board T4-8938
Chart 6
Page 49
9. ILLUSTRATION 0F TURN TABLE BLOCK (1)
36
31
