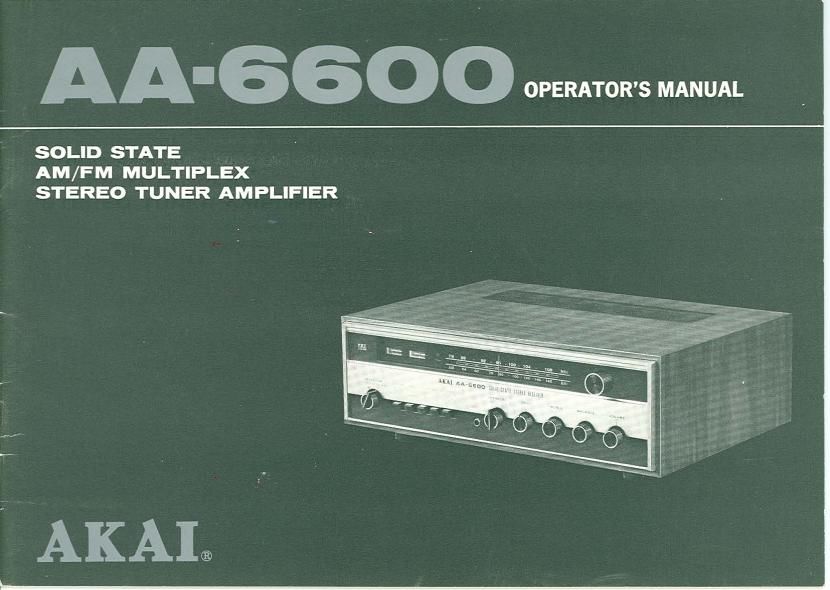

Akai AA 6600 Owners Manual

This is the 19 pages manual for Akai AA 6600 Owners Manual.
Read or download the pdf for free. If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.

Page: 1 / 19
left right
Akai AA 6600 Owners Manual

Extracted text from Akai AA 6600 Owners Manual (Ocr-read)


Page 2

SPECIFICATIONS

AMPLIFIER SECTION
POWER OUTPUT
MUSIC POWER (IHFI : 120 W (60 W/60 W) at 49
100 W (50 W/50 W) at 8:1
CONTINOUS POWER (each channeII:
75 W (37.5 W/37.5 W) atBn
HARMONIC DISTORTION: Less than 0.8% at rated output
POWER BANDWIDTH IIHFI: 20 ~30,000 Hz at an
FREQUENCY RESPONSE
(at NORMAL LISTENING LEVEL)
POWER AMPLIFIER SECTION:
20 ~ 50,000 Hz -3 dB

AUX : 20~50,000 Hz-3dB
INPUT SENSITIVITY (for rated outputI

PHONO : 3 mV

AUX : 200 mV

TAPE MONITOR IPin Jack):

200 mV

TAPE MONITOR (DIN): 200 mV
RECORDING OUTPUT

(Pin Jack) : 200 mV
(DIN) : 30 mV
HUM AND NOISE (below rated output)
VOLUME MINIMUM : better than 80dB
PHONO : better than 65 dB
AUX : better than 70 dB
CHANNEL SEPARATION (at rated output)
PHONO : better than 50 dB
AUX : better than 50 dB
OUTPUT IMPEDANCE : 4~16$2
EQUALIZER
PHONO : RIAA

CONTROLS AN D SWITCHES

BASS CONTROL +IOdB~-10d8 at 50 Hz

TREBLE CONTROL : +10dB~710dBat10KHz
LOUDNESS CONTROL: 100 Hz +6 dB

10 KHz +3 dB

(Volume control at -30 dB)
LOW FILTER 1 78 dB at 50 HZ

HIGH FILTER : *8dB at 10 KHz
MODE SWITCH ' STEREO/MONO.

SELECTOR SWITCH : 1.PHONO 2AM 3.FM

4.FM MUTE 5.AUX

1.0FF 2.5YSTEM A
3.SYSTEM B 4-SYSTEM A + B

SPEAKER SWITCH

TUNNER SECTION

FM
FREQUENCY RANGE : 887108 MHz
SENSITIVITY 2 11V (II-IF)

HARMONIC DISTORTION: Less than 08%
SIGNAL TO NOISE RATIO: Better than 60 dB
SELECTIVITY Better than 50 dB at 98 MHz
CAPTURE RATIO ' 2dB (IHF)
IMAGE FREQUENCY REJECTION:

Better than 60 dB at 98 MHz
IF REJECTION : Better than 90 dB at 98 MHz
FM STEREO SEPARATION: Better than 35 dB at 1 KHz
SPURIOUS RESPONSE REJECTION:

Better than 60 dB at 98 MHz
SPURIOUS RADIATION : Less than 34 dB
ANTENNA INPUT IMPEDANCE:

300 a balanced and 75 n unbalanced

AM
FREQUENCY RANGE : 535 ~ 1,605 KHz
SENSITIVITY (IHF) . 20 mV at1 MHz
IMAGE FREQUENCY REJECTION:

Better than 50 dB at 1 MHz
IF FREQUENCY REJECTION:

Better than 50 dB at 1 MHz
SELECTIVITY : Better than 20 dB at 1 MHz

SEMICONDUCTORS
TRANSISTORS, FET & IC:
Tr. 33, FET 1, IC 1,
DIODES : 20 1, Di 22
VARISTORS 2
POWER REQUIREMENTS

POWER VOLTAGE 100~240 volts

50 s. 60 Hz
POWER CONSUMPTION: 250 VA (rnax.]
DIMENSIONS 5-1/4- x 17-1/2" x 13-3/8"

(I33x 445x 340 mmI
WEIGHT : 24.4IbSI11.1kg)
