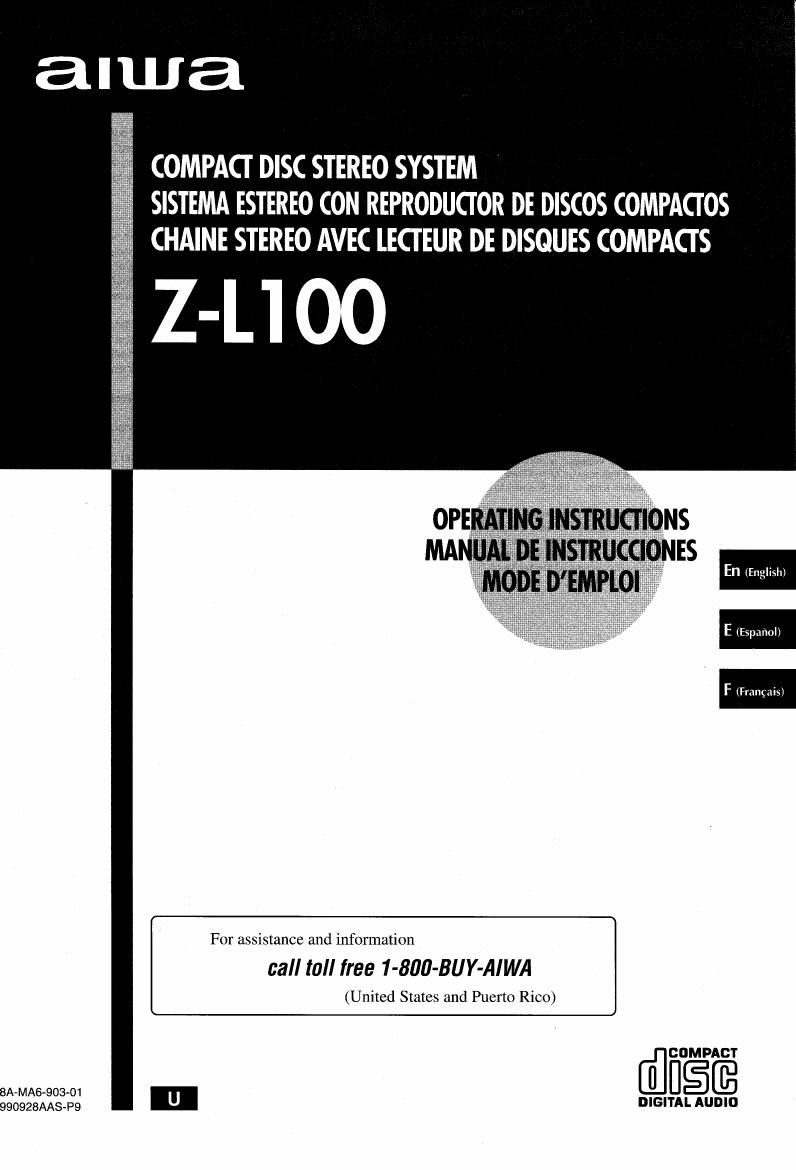

COMPACT DISC STEREO SYSTEM
SISTEMA ESTEREO CON REPRODUCIOR DE DISCOS COMPACIOS
CHAINE STEREO AVEC I.ECT EUR DE DISQUES COMPACT S

En (English)

E (Espanul)

I: (Frangaisi

For assistance and information

call toll free 1-800-BUY-AIW/I

(United Statas and Puerto Rico)

n @053

DIGITAL AUDIO

8A~MA6-903-O1
990928AAS-P9

Page 2

- ENGLISH -

RISK OF ELECTRIC SHOCK
DO NOT OPEN

-CAI.IT|ON:TO REDUCE THE RISK OF
ELECTRIC SHOCK,
DO NOT REMOVE COVER (0R BACK).

NO'USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL}?

Explanation of Graphical Symbols: -
The lightning flash with arrowhead symbol,
within an equilateral triangle, is intended to alert
the user to the presence of uninsulated
-dangerous voltage- within the product-s
enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to persons,

The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the appliance.

NOTE
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules.These limits are designed to provide reasonable protection
against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference
by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on circuit different from

that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician
for help.

CAUTION

Modifications or adjustments to this product, which are not
expressly approved by the manufacturer, may void the user's
right or authority to operate this product.

1 ENGLISH

PRECAUTIONS .

Read the Operating Instructions carefully and completely before

operating the unit. Be sure to keep the Operating Instructions
for future reference. All warnings and cautions in the Operating
Instructions and on the unit should be strictly followed, as well

as the safety suggestions below.

In I i n

1 Water and moisture - Do not use this unit near water, such
as near a bathtub, washbowl, swimming pool, or the like.

2 Heat - Do not use this unit near sources of heat, including
heating vents, stoves, or other appliances that generate heat.
It also should not be placed in temperatures less than 5°C
(41°F) or greater than 35°C (95°F). ,

3 Mounting surface - Place the unit on a flat, even surface.

4 Ventilation =- The unit should be situated with adequate
space around it so that proper heat ventilation is assured.
Allow 10 cm (4 in.) clearance from the rear and the top of the
unit, and 5 cm (2 in.) from each side;

- Do not place the unit on a bed, rug, or similar surface that
may block the ventilation openings.

- Do not install the unit in a bookcase, cabinet, or airtight rack
where ventilation may be impeded,

5 Objects and liquid entry 4Take care that objects or liquid
do not get inside the unit through the ventilation openings.

6 Carts and stands - When placed or
mounted on a stand or cart, the unit should
be moved with care. ' ,
Quick stops, excessive force, and uneven
surfaces may cause the unit or cart to
overturn or fall.

7 Condensation - Moisture may form on the CD pickup lens
when:

- The unit is moved from a cold spot to a warm spot

- The heating system has just been turned on

- The unit is used in a very humid room

- The unit is cooled by an air conditioner

When this unit has condensation inside, it may not function
normally. Should this occur, leave the unit for a few hours,
then try to operate again.

8 Wall or ceiling mounting -The unit should not be mounted
on a wall or ceiling, unless specified in the Operating
Instructions.

Electric Pgwgr

1 Power sources - Connect this unit only to power sources
specified in the Operating Instructions, and as marked on the
unit.

2 Polarization - As a safety feature, someunits are equipped
with polarized AC power plugs which can only be inserted
one way into a power outlet. If it is difficult or impossible to
insert the AC power plug into an outlet, turn the plug over and
try again. If it is not still inserted easily into the outlet, please
call a qualified service technician to service or replace the
outlet. To avoid defeating the safety feature of the polarized
plug. do not force it into a power outlet.

Page 9

PRESETTING STATIONS

FPRESET
1 _ g
0-9, +10
ICLEAFI BAND
SHIFT
2
1

The unit can store a total of 32 preset stations. When a station is
stored, a preset number is assigned to the station. Use the preset
number to tune in to a preset station directly

1 Press TUNER/BAND to select a band, and press
« DOWN or »UP to select a station.

2 Press IISET to store the station.
A preset number beginning from 1 in consecutive order for
each band is assigned to the station.

Preset number

3 Repeat steps 1 and 2.
No more stations will be stored if a total of 32 preset stations
have already been stored.

-FULL- is displayed if you attempt to store more than 32 preset
stations. '

PRESET NUMBER TUNING

Use the remote control to select the preset number directly.

1 Press BAND while pressing SHIFT to select a
band.

2 Press numbered buttons 0-9 and +10 to select a
preset number.
Example:
To select preset number 20, press +10, +10 and 0.
To select preset number 15, press +10 and 5.

Selecting a preset number on the main unit

Press TUNER/BAND to select a band. Then, press >PRESET
repeatedly.

Each time >PRESET is pressed, the next ascending number is
selected.

To clear a preset station

Select the preset number of the station to be cleared. Then, press
ICLEAR, and press IISET within 4 seconds.

The preset numbers of all other stations in the band with higher
numbers are decreased by'one.

BASIC OPERATIONS

Use Type I (normal) tapes only.

1 PressTAPE, then press II: to open the cassette
holder.

Deck 1 Deck 2

Insert a tape with the exposed side down. Push the cassette a
holder to close.

2 Press > to start play.
Only the side facing out from the unit can be played back.

To stop play, press I A.

To pause play, press II. To resume play, press again.

To fast forward or rewind, press « or » in stop mode.
Then press l/A to stop the tape.

When both deck 1 and deck 2 are set in the playback

mode
Deck 2 is heard.

ENGLISH 8
