Aiwa Z L200 Service Manual

Extracted text from Aiwa Z L200 Service Manual (Ocr-read)

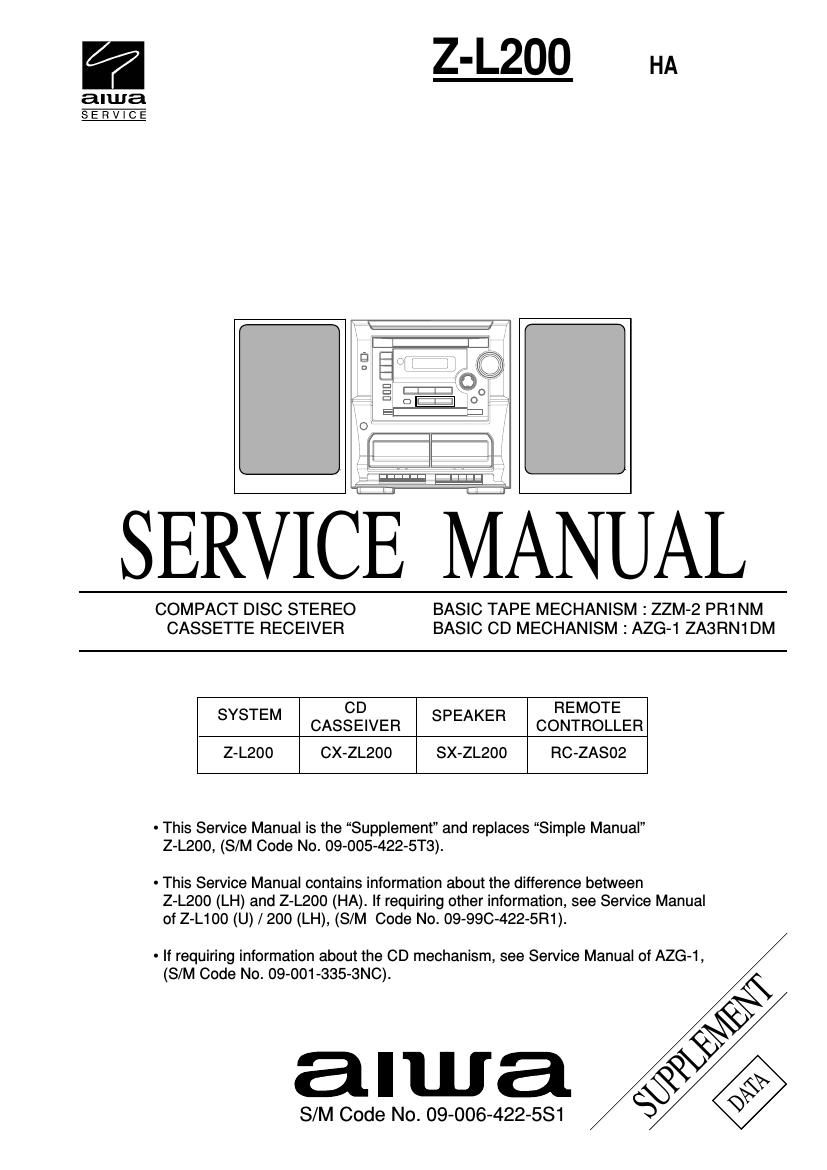

Page 1

a Z-L200 HA

alwa
SERVICE

COMPACT DISC STEREO BASIC TAPE MECHANISM : ZZM-2 PR1NM
CASSETTE RECEIVER BASIC CD MECHANISM : AZG-1 ZA3RN1DM
CD REMOTE
SYSTEM CASSEIVER SPEAKER CONTROLLER
Z-L200 CX-ZL200 sx-ZLzoo RC-ZASO2

- This Service Manual is the “Supplement” and replaces “Simple Manual”
Z-L200, (S/M Code No. 09-005—422-5T3).

- This Service Manual contains information about the difference between
Z-L200 (LH) and Z-L200 (HA). If requiring other information, see Service Manual
of Z-L1OO (U) / 200 (LH), (S/M Code No. 09-990-422-5R1).

- If requiring information about the CD mechanism, see Service Manual of AZG-l,
(S/M Code No. 09-001-335-3NC).

Page 2


Tuning range

Usable sensitivity (IHF)
Antenna terminals


Tuning range

Usable sensitivity
Antenna


Power output

Total harmonic distortion

Inputs
Outputs


Track formal

Frequency response
Recording system
Heads

SPECIFICATIONS

87.5 MHZ to 108 MHZ
13.2 dBt
75 ohms (unbalanced)

530 kHz to 1710 kHz (10 kHz step)
531 kHz to 1602 kHz (9 kHz step)
350 uV/m

Loop antenna

Rated 33 W + 33 W (1 kHz,
T.H.D.1%, 6 ohms)

Reference :40 W + 40 W (6 ohms,
T.H.D.10%, 1 kHz)

0.1% (17 W, 1 kHz, 6 ohms, DIN
AUDIO)

VIDEO/AUX/PHONO IN: 500 mV
CD DIGITAL OUT (OPTICAL)
SPEAKERS : accept speakers of 6
ohms or more

PHONES (stereo jack) : accepts
headphones of 32 ohms or more

4 tracks, 2 channels stereo

50 HZ — 10000 HZ

AC bias

Deck 1 : Recording/Playback head x 1,
erase head x 1

Deck 2 : Playback head x 1

Laser

D-A converter
Signal-to-noise ratio
Harmonic distortion
Wow and flutter

Semiconductor laser (A =780 nm)
1 bit dual

85 dB (1 kHz, 0 dB)

0.05 % (1 kHz, 0 dB)
Unmeasurable

Cabinet type
Speakers

Impedance
Output sound pressure level
Dimensions (W x H x D)

Weight


Power requirements

Power consumption
Dimensions of main unit
(W x H x D)

Weight of main unit

Standby power consumption

3 way, bass reflex

Woofer :

130 mm (5‘/s in.) cone type
Tweeter :

60 mm (23/5 in.) cone type
Super tweeter:

20 mm (”/15 in.) ceramic type
6 ohms

87 dBNV/m

260 x 496 x 220 mm

(10‘/¢ X 195/3 X 83/4 in.)

3.7 kg (8 lbs 3 oz.)

120 V/220-230 V/240 V AC
(switchable), 50/60 Hz

70 W

360 X 393 x 342 mm

(14‘/4 X 15’/2 X 13‘/2 in.)
7.7 kg (17le)

It the power-economizing mode is OFF : 17 W
It the power-economizing mode is AUTO or ON : 0.9 W

- Design and specifications are subject to change without

notice.
