Aiwa XD AX10 Owners Manual

Extracted text from Aiwa XD AX10 Owners Manual (Ocr-read)

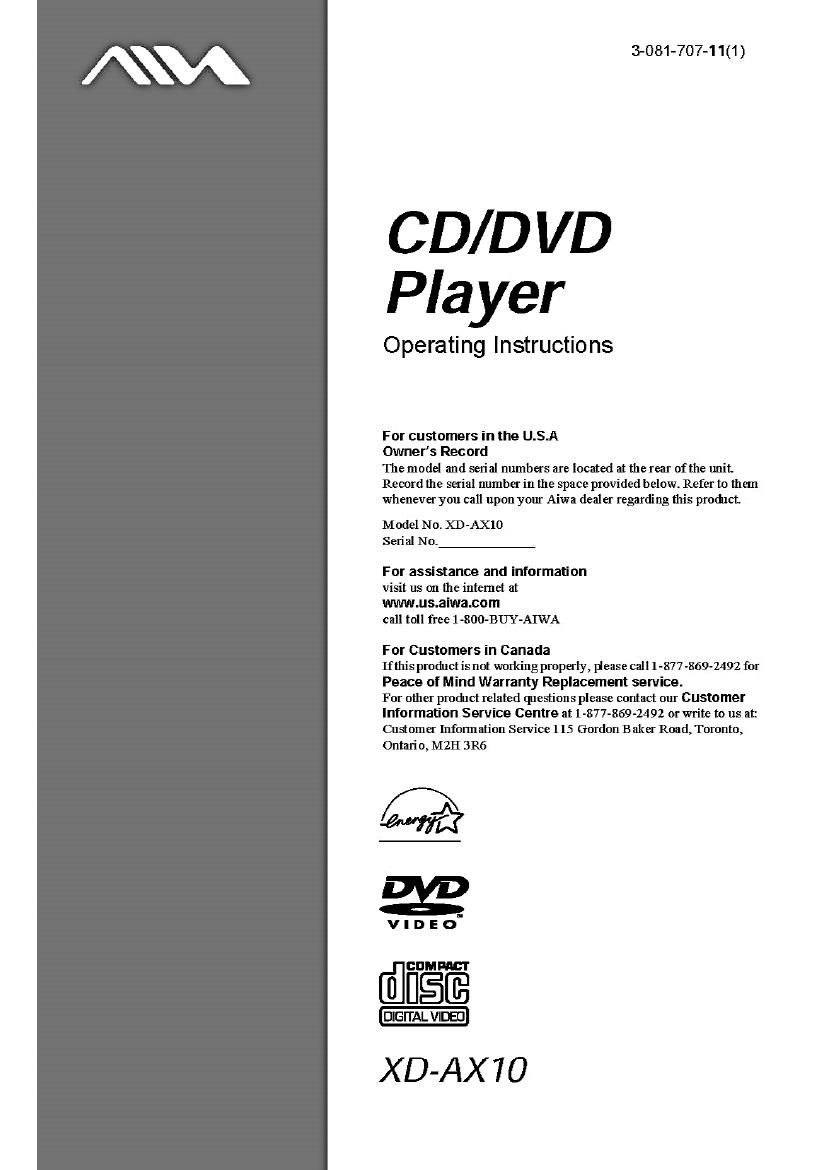

Page 1

3-081-707-11(1)

CD/D VD
Player

Operating Instructions

For customers In the U.S.A

Owner’s Record

The model and serial numbers are located at the rear ofthe unit.
Record the serial mrmber in the space provided below. Refer to them
whenever you call upon your Aiwa dealer regarding this product.

Model No. XD-AXIO
Serial No.

F0! assistance and information
visit us on the intemet at
www.us.aiwa.com

call toll free 1-800-BUY-AIWA

For Customers in Canada

Ifthis prodrct is not working properly, Iiease call 1 -877-869-2492 for
Peace of Mind Warranty Replacement service.

For other prodlct related questions please contact our Customer
Information Service Centre at 1 -877-869-2492 or write to us at:
Cuiomer Information Service 1 15 Gordon Baker Road, Toronto,
Ontario, M211 3R6

@
2V2

VIDEO

[fl_fi°§"®'

_GH'AL VIED

XD-AX 10

Page 2

WARNING

To prevent fire or shock
hazard. do not expose the
unit to rain or moisture.

To avoid electrical shock, do
not open the cabinet. Refer
servicing to qualified
personnel only.

CAUTION

The use of optical instrurn ents with
this product will increase eye
hazard. As the laser beam used in
this CD/DVD player is harmful to
eyes, do not attemptto disassemble
the cabinet

Refer servicing to qualified
personnel only.

This symbol is
intended to alert the
user to the presence
of uninsulated
“dangerous voltage”
within the product’s enclosure that
may be of sufficient magnitude to
constitute a risk of electric mock to
persons.
This symbol is
intended to alert the
user to the presence
of important
operating and
maintenance (servicing)
instructions in the literature
accompanying the appliance.

CAUTION:

TO PREVENT ELECTRIC
SHOCK, MATCH WIDE BLADE
OF PLUG TO WlDE SLOT,
FULLY INSERT.

CAUTION

You are cautioned that any change
or modifications not expressly
approvedin this manual couldvoid
your authority to operate this
equipment.

This equipment has been tested
and found to comply with the
limits for a Class B digital device,
pursuant to Part 15 of the FCC
Rules These limits are designed to
provide reasonable protection
against harmful interference in a
residential installati on. Thi 5
equipment generatesuses, and can
radiate radio frequency energy
and, if not installed and usedin
accordance with the instructions,
may cause harmful interference to
radio communications However,
there is no guarantee that
interference will not ocwr in a
particular installation. Ifthis
equipment does cause harmful
interference to radio or television
reception, which can be
determined by turning the
equipment off and on, the user is
encouraged to try to correct the
interference by one or more of the
following measures:

— Reorient or relocate the
receiving antenna.

7 Increase the separation
between the equipment and
receiver.

7 Connect the equipment into an
outlet on a circuit different
from that to which the receiver
is connected

— Consult the dealer or an
experienced radio/'1' V
technician for help.

Welcome!

Thank you for purchasing this CD/
DVD Player. Before operating this
player, please read this manual
thoroughly and retain it for future
reference.

Page 41

Sound Adjustments

Changing the Sound m
m an

When playing a DVD recorded in multiple
audio formats (PCM, Dolby Digital, or DTS),
you can change the audio format If the DVD
is recorded with multilingual tracks, you can
also change the language.

With CDs, DATA CDs, or VIDEO CDs, you
can select the sound from the right or left
channel and listento the sound of the selected
channel through both the right and lefi
speakers. For example, when playing a disc
containing a song with the vocals on the right
channel and the instruments on the left
channel, you can hear the instruments from
both speakers by selecting the left channel.

O

doeee (9

AUDIO —

@000

®®O@@®®
(900093669

/

go)

DISPLAY — «C96;

1 Press AUDIO during playback.

The following display appears.
The number in parentheses indicates the
total number of available audio signals.

[Ed 1 4 :ENGLISH

2 Press AUDIO repeatedly to select
the desired audio signal.

0 When playing a DVD

Depending on the DVD, the choice of
language varies.

When 4 digits are displayed, they
indicate a language code. Refer to
“Language Code List” on page 60 to see
which language the code represents.
When the same larguage is displayed two
or more times, the DVD is recorded in
multiple audio formats.

0 When playing a VIDEO CD, CD, or

DATA CD (MP3 audio)

The default setting is lmderlined.

- STEREO: The standard stereo sound

- 1/L: The sound of the lefi channel
(monaural)

- Z/R: The sound of the right channel
(monaural)

6 When playing a Super VCD

The default setting is underlined.

- 1:STEREO: The stereo sound of the
audio track 1

- 1:1/L: The sound of the left channel of
the audio track 1 (monaural)

- 1:2/IC The sound of the rightchannel of
the audio track 1 (monaural)

- 2:STEREO: The stereo sound of the
audio track 2

- 2:1/L: The sound of the lefl channel of
the audio track 2 (monaural)

- 2:2/IC The sound of the Iightchannel of
the audio track 2 (monaural)

Checking the audio signal
format m

If you press DISPLAY repeanedly during
playback, the format of the current audio
signal (Dolby Digital, DTS, PCM, etc.)
appears as shown below.

Example:
Dolby Digiml 5.1 ch

Rear (L/R)

DOLBY DIGITAL Quill-1

Front (LIR) LFE (Low Frequency
+ Center Effect)

siuaunsnlpv punos I

#cominued 41
