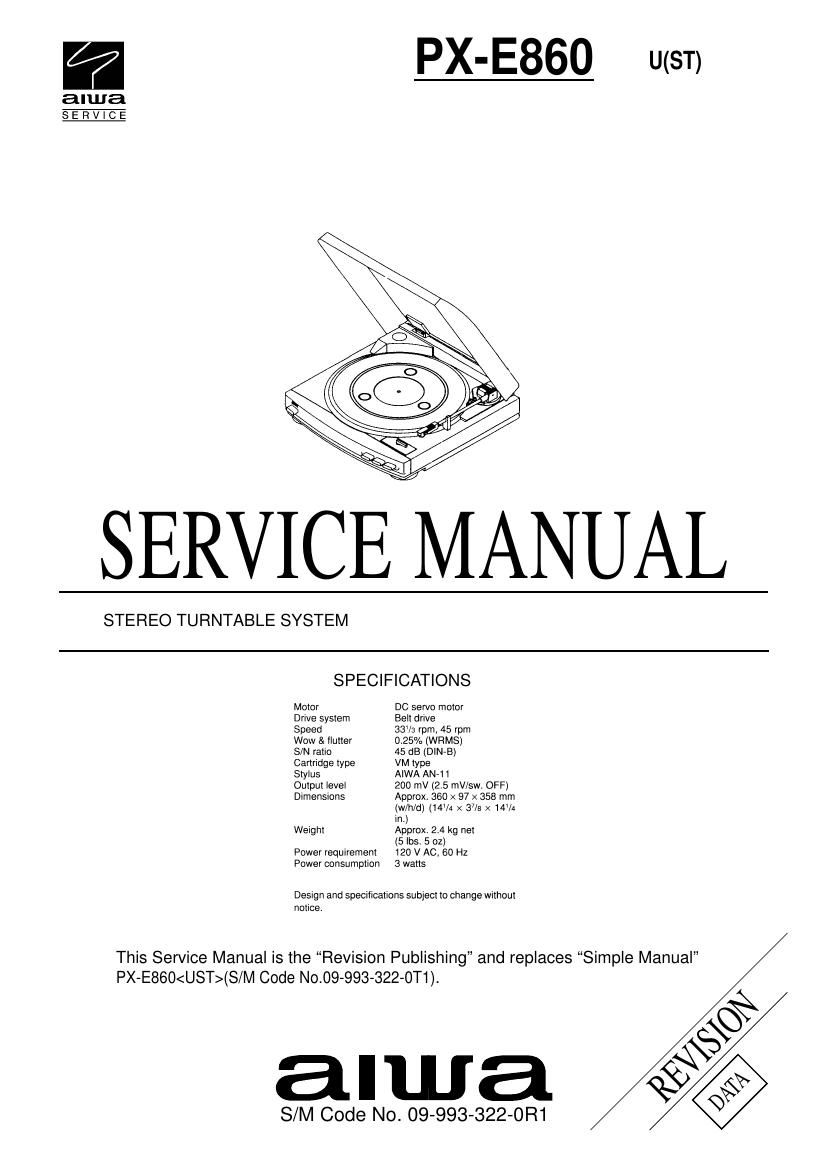

Aiwa PX E860 Service Manual

Extracted text from Aiwa PX E860 Service Manual (Ocr-read)


Page 2

3 REF. NO PART NO. KANRI DESCRIPTION NO. ELECTRICAL MAIN PARTS LIST IC 87-027-683-010 IC,TA7325 DIODE 87-001-783-080 DIODE,1N4002 PRE AMP C.B S8-E27-BK0-190 SIGNAL WIRE C102 87-015-995-810 CAP,E 4.7-50V C104 87-010-412-010 CAP,E 10-25V C107 87-015-995-810 CAP,E 4.7-50V C202 87-015-995-810 CAP,E 4.7-50V C204 87-010-412-010 CAP,E 10-25V C207 87-015-995-810 CAP,E 4.7-50V C301 87-010-564-010 CAP,E 100-16V C302 87-010-564-010 CAP,E 100-16V SW101 S3-PXE-900-280 SLIDE SWITCH POWER C.B C1 87-010-237-010 CAP,E 1000UF/16V M REF. NO PART NO. KANRI DESCRIPTION NO. ACCESSORIES LIST 1 S0-0H2-000-160 ADAPTOR 45RPM 2 S8-60E-1C7-500 INSTRUCTION BOOK(PXE860EZ) 2 SE-860-KC7-530 INSTRUCTION BOOK(PXE860K) 2 SE-860-UC7-520 INSTRUCTION BOOK(PXE860U) 3 SX-E85-5E6-050 INSTRUCTION BOOK

Page 7

931196Printed in Singapore 2Ð11, IKENOHATA 1ÐCHOME, TAITO-KU, TOKYO 110, JAPAN TEL:03 (3827) 3111 Basic color symbol Color Basic color symbol Color Basic color symbol Color B Black C Cream D Orange G Green H Gray L Blue N Gold P Pink R Red S Silver ST Titan Silver T Brown V Violet W White Y Yellow COLOR NAME TABLE
