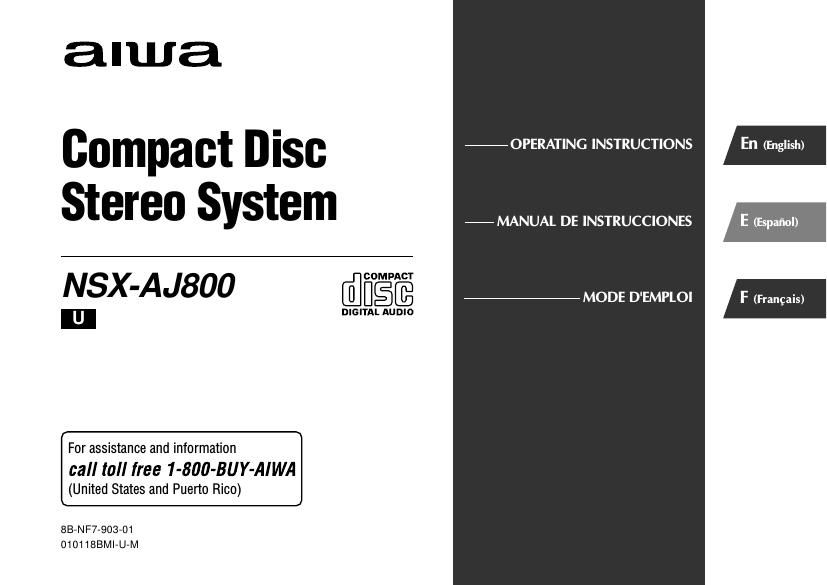

Aiwa NSX AJ800 Owners Manual

This is the 23 pages manual for Aiwa NSX AJ800 Owners Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 23
Aiwa NSX AJ800 Owners Manual

Extracted text from Aiwa NSX AJ800 Owners Manual (Ocr-read)


Page 1

2 En PRECAUTIONS WARNING To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture. CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN Explanation of Graphical Symbols: The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated dangerous voltage within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. Installation 1 Water and moisture - Do not use this unit near water, such as near a bathtub, washbowl, swimming pool, or the like. 2 Heat - Do not use this unit near sources of heat, including heating vents, stoves, or other appliances that generate heat. It also should not be placed in temperatures less than 5°C (41°F) or greater than 35°C (95°F). 3 Mounting surface - Place the unit on a flat, even surface. 4 Ventilation - The unit should be situated with adequate space around it so that proper heat ventilation is assured. Allow 10 cm (4 in.) clearance from the rear and the top of the unit, and 5 cm (2 in.) from each side. - Do not place the unit on a bed, rug, or similar surface that may block the ventilation openings. - Do not install the unit in a bookcase, cabinet, or airtight rack where ventilation may be impeded. 5 Objects and liquid entry - Take care that objects or liquids do not get inside the unit through the ventilation openings. 6 Carts and stands - When placed or mounted on a stand or cart, the unit should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the unit or cart to overturn or fall. 7 Condensation - Moisture may form on the CD pickup lens when: - The unit is moved from a cold spot to a warm spot - The heating system has just been turned on - The unit is used in a very humid room - The unit is cooled by an air conditioner When this unit has condensation inside, it may not function normally. Should this occur, leave the unit for a few hours, then try to operate again. 8 Wall or ceiling mounting - The unit should not be mounted on a wall or ceiling, unless specified in the Operating Instructions. Read these Operating Instructions carefully and completely before operating the unit. All precautions on this booklet and on the unit should be strictly followed. Keep the Operating Instructions for future reference. Electric Power 1 Power sources - Connect this unit only to power sources specified in the Operating Instructions, and as marked on the unit. 2 Polarization - As a safety feature, some units are equipped with polarized AC power plugs which can only be inserted one way into a power outlet. If it is difficult or impossible to insert the AC power plug into an outlet, turn the plug over and try again. If it still does not easily insert into the outlet, please call a qualified service technician to service or replace the outlet. To avoid defeating the safety feature of the polarized plug, do not force it into a power outlet. 3 AC power cord - When disconnecting the AC power cord, pull it out by the AC power plug. Do not pull the cord itself. - Never handle the AC power plug with wet hands, as this could result in fire or shock. - Power cords should be firmly secured to avoid being severely bent, pinched, or walked upon. Pay particular attention to the cord from the unit to the power outlet. - Avoid overloading AC outlets and extension cords beyond their capacity, as this could result in fire or shock. 4 Extension cord - To help prevent electric shock, do not use a polarized AC power plug with an extension cord, receptacle, or other outlet unless the polarized plug can be completely inserted to prevent exposure of the blades of the plug. 5 When not in use - Unplug the AC power cord from the power outlet if the unit will not be used for several months or more. When the cord is plugged in, a small amount of current continues to flow to the unit, even when the power is turned off.

Page 2

3 En TABLE OF CONTENTS PRECAUTIONS .................................... 2 PREPARATIONS ................................... 4 PARTS AND CONTROLS ......................... 5 ADJUSTMENTS BEFORE OPERATIONS ........ 8 CD OPERATIONS ................................ 10 RADIO OPERATIONS ........................... 12 TAPE OPERATIONS ............................. 14 SOUND ADJUSTMENTS ........................ 17 TIMER OPERATIONS ........................... 19 REFERENCE ..................................... 21 OWNER'S RECORD Record the model number and serial number of your set (found at the rear of your set) below. Refer to them when contacting your Aiwa dealer. Model No. _____________________________ Serial No. _____________________________ Outdoor Antenna 1 Power lines - When connecting an outdoor antenna, make sure it is located away from power lines. 2 Outdoor antenna grounding - Be sure the antenna system is properly grounded to provide protection against unexpected voltage surges or static electricity build-up. Article 810 of the National Electrical Code, ANSI/NFPA 70, provides information on proper grounding of the mast, supporting structure, and the lead-in wire to the antenna discharge unit, as well as the size of the grounding unit, connection to grounding terminals, and requirements for grounding terminals themselves. Antenna Grounding According to the National Electrical Code GROUND CLAMP GROUND CLAMPSANTENNA DISCHARGE UNIT (NEC SECTION 810-20) GROUNDING CONDUCTORS (NEC SECTION 810-21) ELECTRIC SERVICE EQUIPMENTANTENNA LEAD IN WIRE POWER SERVICE GROUNDING ELECTRODE SYSTEM (NEC ART 250 PART H) NEC-NATIONAL ELECTRICAL CODE Maintenance Clean the unit only as recommended in the Operating Instructions. Damage Requiring Service Have the units serviced by a qualified service technician if: - The AC power cord or plug has been damaged - Foreign objects or liquid have gotten inside the unit - The unit has been exposed to rain or water - The unit does not seem to operate normally - The unit exhibits a marked change in performance - The unit has been dropped, or the cabinet has been damaged DO NOT ATTEMPT TO SERVICE THE UNIT YOURSELF. System and accessories NSX-AJ800 CX-NAJ800 Compact disc stereo cassette receiver SX-NAJ801 Front speakers SX-S85 Satellite speakers Remote control FM antenna AM antennaTo attach the satellite speaker to the pedestal

Page 17

18 En PANORAMA SOUND PLUS AIWAs unique PANORAMA SOUND PLUS system uses Satellite Speakers driven by a separate stereo amplifier circuit to achieve a wide sound stage and clear stereo imaging at the same time. The PANORAMA SOUND PLUS system also supplies midnight listening environment by outputting low level volume sound only from the satellite speakers (AMBIENT 1/2 mode). Press PANORAMA on the unit repeatedly to select one of the following modes. SATELLIT mode : Place a pair of the satellite speakers outside the front speakers(see PREP ARA TIONS). The satellite Speakers output the same sound as that from the front speakers with a 9 milli- second delay. You can obtain a clear-cut sound image and listening experience with naturally enhanced spaciousness like concert halls. REAR SP mode : Place a pair of the satellite speakers behind the listening area.You can mount them on the wall (see PREP ARA TIONS). This creates a 4-speaker surround environment. AMBIENT 1 mode : Front speakers are deactivated so sound is outputted only from the satellite speakers. If a pair of the satellite speakers are placed at the bed sides, you can enjoy midnight listening without the inconvenience of headphones. AMBIENT 2 mode : In addition to AMBIENT 1 mode, QSURROUND effect is mixed so you can obtain good stereo imaging even if there is not sufficient distance between the satellite speakers. (QSURROUND is QSOUND corporations property and we are licensed by QSOUND corporation for its use.)To cancel PANORAMA SOUND PLUS Press PANORAMA on the unit or the remote control repeatedly to select OFF. To display the current mode Press PANORAMA on the unit or the remote control once. The mode will be displayed for 4 seconds. To adjust the satellite speaker volume balance (only for SATELLIT or REAR SP mode) Press PANORAMA on the unit repeatedly to select SATELLIT or REAR SP mode and then turn VOLUME within 4 seconds. -The PANORAMA SOUND PLUS mode is canceled automatically when the headphones are plugged in. -T-BASS, BBE or GRAPHIC EQUALIZER cannot be activated in AMBIENT 1/2 mode.
