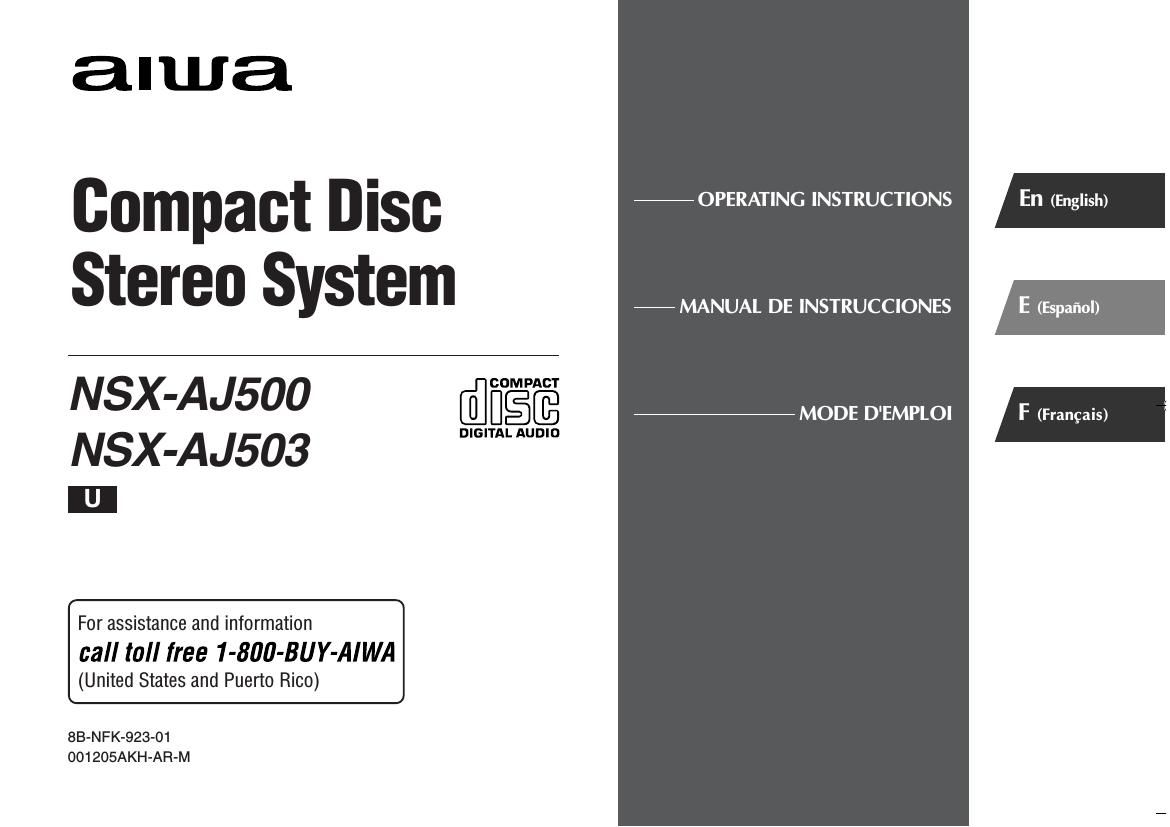

Aiwa NSX AJ500 Owners Manual

Extracted text from Aiwa NSX AJ500 Owners Manual (Ocr-read)


Page 1

2 En PRECAUTIONS WARNING To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture. CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN Explanation of Graphical Symbols: The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated dangerous voltage within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. Read these Operating Instructions carefully and completely before operating the unit. All precautions on this booklet and on the unit should be strictly followed. Keep the Operating Instructions for future reference. Installation 1 Water and moisture - Do not use this unit near water, such as near a bathtub, washbowl, swimming pool, or the like. 2 Heat - Do not use this unit near sources of heat, including heating vents, stoves, or other appliances that generate heat. It also should not be placed in temperatures less than 5°C (41°F) or greater than 35°C (95°F). 3 Mounting surface - Place the unit on a flat, even surface. 4 Ventilation - The unit should be situated with adequate space around it so that proper heat ventilation is assured. Allow 10 cm (4 in.) clearance from the rear and the top of the unit, and 5 cm (2 in.) from each side. - Do not place the unit on a bed, rug, or similar surface that may block the ventilation openings. - Do not install the unit in a bookcase, cabinet, or airtight rack where ventilation may be impeded. 5 Objects and liquid entry - Take care that objects or liquids do not get inside the unit through the ventilation openings. 6 Carts and stands - When placed or mounted on a stand or cart, the unit should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the unit or cart to overturn or fall. 7 Condensation - Moisture may form on the CD pickup lens when: - The unit is moved from a cold spot to a warm spot - The heating system has just been turned on - The unit is used in a very humid room - The unit is cooled by an air conditioner When this unit has condensation inside, it may not function normally. Should this occur, leave the unit for a few hours, then try to operate again. 8 Wall or ceiling mounting - The unit should not be mounted on a wall or ceiling, unless specified in the Operating Instructions.Electric Power 1 Power sources - Connect this unit only to power sources specified in the Operating Instructions, and as marked on the unit. 2 Polarization - As a safety feature, some units are equipped with polarized AC power plugs which can only be inserted one way into a power outlet. If it is difficult or impossible to insert the AC power plug into an outlet, turn the plug over and try again. If it still does not easily insert into the outlet, please call a qualified service technician to service or replace the outlet. To avoid defeating the safety feature of the polarized plug, do not force it into a power outlet. 3 AC power cord - When disconnecting the AC power cord, pull it out by the AC power plug. Do not pull the cord itself. - Never handle the AC power plug with wet hands, as this could result in fire or shock. - Power cords should be firmly secured to avoid being severely bent, pinched, or walked upon. Pay particular attention to the cord from the unit to the power outlet. - Avoid overloading AC outlets and extension cords beyond their capacity, as this could result in fire or shock. 4 Extension cord - To help prevent electric shock, do not use a polarized AC power plug with an extension cord, receptacle, or other outlet unless the polarized plug can be completely inserted to prevent exposure of the blades of the plug. 5 When not in use - Unplug the AC power cord from the power outlet if the unit will not be used for several months or more. When the cord is plugged in, a small amount of current continues to flow to the unit, even when the power is turned off.

Page 2

3 En TABLE OF CONTENTS PRECAUTIONS .................................... 2 PREPARATIONS ................................... 4 PARTS AND CONTROLS ......................... 5 ADJUSTMENTS BEFORE OPERATIONS ........ 8 CD OPERATIONS ................................ 10 RADIO OPERATIONS ........................... 12 TAPE OPERATIONS ............................. 14 SOUND ADJUSTMENTS ........................ 17 TIMER OPERATIONS ........................... 18 REFERENCE ..................................... 20 System and accessories NSX-AJ500 CX-NAJ500 Compact disc stereo cassette receiver SX-NAJ502 Front speakers NSX-AJ503 CX-NAJ503 Compact disc stereo cassette receiver SX-NAJ502 Front speakers SX-R145 Surround speakers Remote control FM antenna AM antenna OWNER'S RECORD Record the model number and serial number of your set (found at the rear of your set) below. Refer to them when contacting your Aiwa dealer. Model No. _____________________________ Serial No. _____________________________ Damage Requiring Service Have the units serviced by a qualified service technician if: - The AC power cord or plug has been damaged - Foreign objects or liquid have gotten inside the unit - The unit has been exposed to rain or water - The unit does not seem to operate normally - The unit exhibits a marked change in performance - The unit has been dropped, or the cabinet has been damaged DO NOT ATTEMPT TO SERVICE THE UNIT YOURSELF. Outdoor Antenna 1 Power lines - When connecting an outdoor antenna, make sure it is located away from power lines. 2 Outdoor antenna grounding - Be sure the antenna system is properly grounded to provide protection against unexpected voltage surges or static electricity build-up. Article 810 of the National Electrical Code, ANSI/NFPA 70, provides information on proper grounding of the mast, supporting structure, and the lead-in wire to the antenna discharge unit, as well as the size of the grounding unit, connection to grounding terminals, and requirements for grounding terminals themselves. Antenna Grounding According to the National Electrical Code GROUND CLAMP GROUND CLAMPSANTENNA DISCHARGE UNIT (NEC SECTION 810-20) GROUNDING CONDUCTORS (NEC SECTION 810-21) ELECTRIC SERVICE EQUIPMENTANTENNA LEAD IN WIRE POWER SERVICE GROUNDING ELECTRODE SYSTEM (NEC ART 250 PART H) NEC-NATIONAL ELECTRICAL CODE Maintenance Clean the unit only as recommended in the Operating Instructions.

Page 22

61 F PLATINE CASSETTE Format des pistes 4 pistes, deux canaux stéréo Réponse en fréquence 50 Hz -“ 15 kHz Système denregistrement Polarisation AC Têtes DECK 1 : lecture x 1 DECK 2 : enregistrement/lecture x 1, effacement x 1 LECTEUR DE CD Laser Laser à semiconducteur (λ = 780 nm) Conversion D/A 1 bit double Rapport signal/bruit 85 dB (1 kHz, 0 dB) Distorsion harmonique 0,05 % (1 kHz, 0 dB) DONNÉES GÉNÉRALES Alimentation 120 V CA, 60 Hz CX-NAJ500: Consommation 80 W Consommation électrique Mode ECO activé : 0,6 W en mode de veille Mode ECO désactivé : 20 W Dimensions (L x H x P) 260 x 326 x 340 mm Poids 6,7 kg CX-NAJ503: Consommation 105 W Consommation électrique Mode ECO activé : 0,6 W en mode de veille Mode ECO désactivé : 20 W Dimensions (L x H x P) 260 x 326 x 340 mm Poids 7,3 kg Caractéristiques techniques APP AREIL PRINCIP AL CX-NAJ500/CX-NAJ503 TUNER Gamme de syntonisation FM 87,5 MHz à 108 MHz Sensibilité utile FM (IHF) 13,2 dBf Sorties dantenne FM 75 ohms (non équilibrés) Gamme de syntonisation AM 530 kHz à 1710 kHz (pas de 10 kHz) 531 kHz à 1602 kHz (pas de 9 kHz) Sensibilité utile AM 350μV/m Antenne AM Antenne cadre AMPLIFICATEUR CX-NAJ500: Puissance de sortie 80 W + 80 W (50 Hz -“ 20 kHz, T.H.D. moins de 1%, 6 ohms) 100 W + 100 W (1kHz, T.H.D. moins de 10 %, 6 ohms) Distorsion harmonique totale 0,08 % (40 W, 1 kHz, 6 ohms, DIN AUDIO) CX-NAJ503: Puissance de sortie 70 W + 70 W (50 Hz -“ 20 kHz, T.H.D. moins de 1%, 6 ohms) 95 W + 95 W (1kHz, T.H.D. moins de 10 %, 6 ohms) Distorsion harmonique totale 0,08 % (35 W, 1 kHz, 6 ohms, DIN AUDIO) Entrée VIDEO/AUX : 500 mV Sorties SPEAKERS : 6 ohms ou plus SURROUND SPEAKERS (pour le modèle CX-NAJ503 uniquement) : 8 ohms à 16 ohms. PHONES : 32 ohms ou plus HAUT -PARLEURS A VANT SX-NAJ502 Système de haut-parleurs 3 voies, bass reflex (à blindage magnétique) Composants des haut-parleurs Woofer (graves): cône de 160 mm Tweeter (aigus): cône de 60 mm Super tweeter (super aigus): céramique de 20 mm Impédance 6 ohms Dimensions (L x H x P) 230 x 324 x 253 mm Poids 3,5 kg HAUT -PARLEURS DAMBIANCE SURROUND SX-R145 (pour le modèle NSX-AJ503 uniquement) Système de haut-parleurs 1 voie, bass reflex Haut-parleurs Large bande : cône de 80 mm Impédance 8 ohms Dimensions (LxHxP) 100x132x116mm Poids 0,5 kg Accessoires : vis pour un montage mural (2) Les caractéristiques techniques et laspect extérieur sont susceptibles de modification sans avis préalable. COPYRIGHT Reportez-vous aux lois du pays dans lequel lappareil est utilisé pour le copyright concernant les enregistrements à partir de CD, de stations de radio, de cassettes. SYSTÈME BBE Le mot " BBE " et le " symbole BBE " sont des marques déposées de BBE Sound, Inc. Sous licence accordée par BBE Sound Inc.
