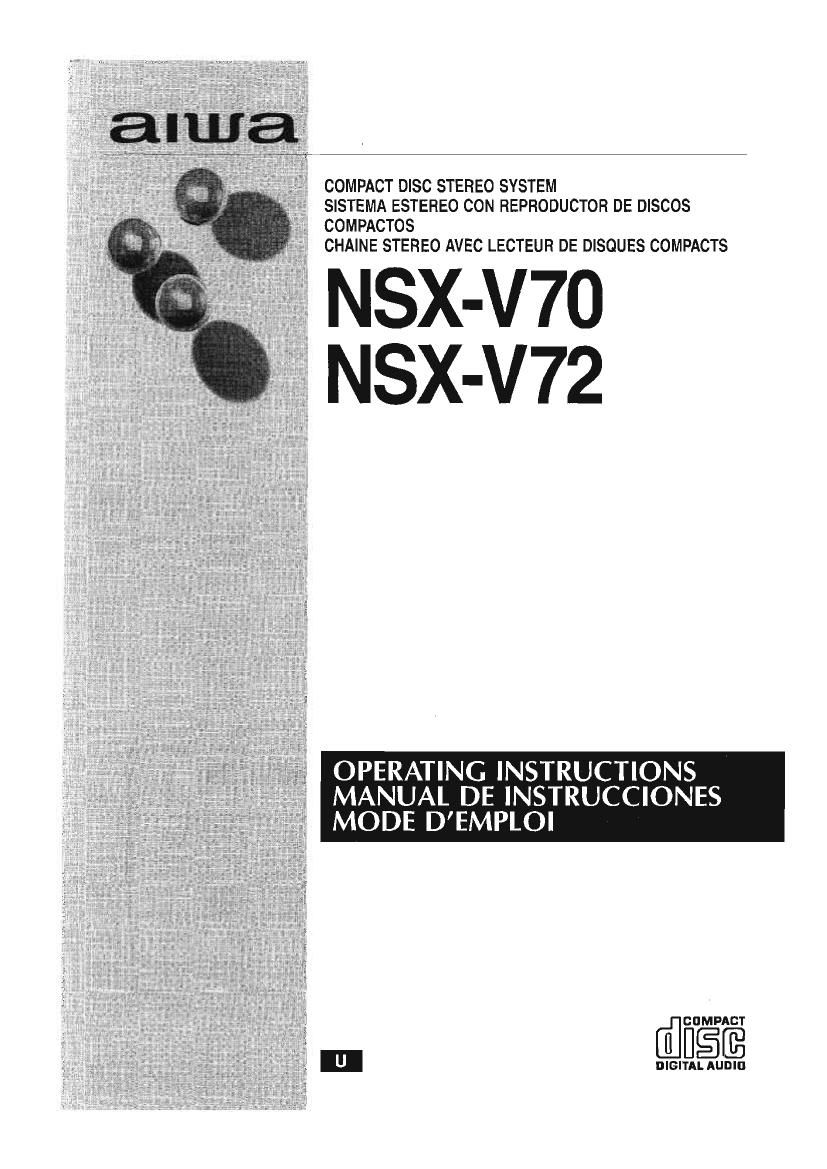

, COMPACT DISC STEREO SYSTEM
' . SISTEMA ESTEREO CON REPRODUCTOR DE DISCOS
‘ COMPACTOS
CHAINE STEREO AVEC LECTEUR DE DISQUES COMPACTS

OPERATING INSTRUCTIONS
‘ v MANUAL DE INSTRUCCIONES
, MODE D’EMPLOI

DIGITAL AUDIO

a flaw

Page 2

Welcome to Me 24% 7251-770/
W72

Congratulations on your purchase of an Aiwa Stereo System.
To optimize the performance of this system, please take the u'me
to read through these Operating Instructions and become familiar
with the operating procedures.

About your system

Your system NSX-V70/NSX-V72 is composed of the units @-©
and supplied with the accessories @-® as follows. —t u

® CX-NV70/CX-NV72 Compact disc stereo cassette receiver
(2) SX-NV7O (L,Fl) Front speakers

@ Surround speakers SX-R220

@ Remote control

© FM antenna

(9 AM antenna

® Operating Instructions, etc.

About this manual —. E]

This manual contains illustrations 0) and instructions in three
languages @-®.

6] Illustration

® English

® Spanish

@ French

About the illustrations

Capital letters, bold face numbers, smaller numbers and lower
case letters in the instructions correspond to the letters and
numbers in the illustration column.

For example, the “—t E!" following “About this manual" above
is a reference to E] of the illustration.

OWNER‘S RECORD

For your convenience, record the model number and serial
number (you will find them on the rear of your set) in the space
provided below. Please refer to them when you contact your
AIWA dealer in case of difficulty,

Model No. CX-NV70/CX-NV72 Serial No.

Model No. SX-NV7O Serial (Lot) No.

WARNING

TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, DO NOT EXPOSE THIS APPLIANCE TO
RAIN OR MOISTURE.

CAUTION
RISK OF ELECTRIC SHOCK
Do NOT OPEN

"CAUTION:TO REDUCE THE RISK OF

ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.”

Explanation of Graphical Symbols:

The lightningtlash wrth arrowhead symbol, within
an equilateral triangle, is intendedto alertthe user
to Ihe presence of uninsulated “dangerous volt-
age" within the product’s enclosure that may be 01
sufficient magnitude to constitute a risk of electric
shock to persons.

The exclamation point within an equilateral tri-
angle is intended to alert the userto the presence
of important operating and maintenance (servic-
ing) instructions in the literature accompanying
the appliance.

Page 20

TUNING
K4 DOWN U‘P PH

CZ:

REPEAT

C)

MONO TUNER

, RADIO RECE

MANUAL TUNING

1 Press the TUNER/BAND button to select the band
repeatedly.
It the power is turned off, the previously tuned station will be
played (Direct Play Function).

[FM—rAM],

2 Press the H4 DOWN or >>l UP button to select
a station.
Each time the button is pressed, the frequency changes.
When a station is received, “TUNE” is displayed for 2 seconds.
During FM stereo reception, "min is displayed,

To search for a station quickly (Auto Search)

Keep the K4 DOWN or >>l UP button pressed until the tuner

starls searching for a station. After tuning in to a station, the

search stops,

To stop the Auto Search manually, press the K4 DOWN or DH

UP button,

- The Auto Search may not stop at stations with very weak
signals.

When an FM stereo broadcast contains noise

Press the MONO TUNER button to display “MONO" on the
display. —. fl

Noise is reduced, although reception is monaural.

To restore stereo reception, press the button so that MONO
disappears.

To change the AM tuning interval

The default setting of the AM tuning interval is 10 kHz/step. ll
you use this unit in an area where the frequency allocation system
is 9 kHz/step, change the tuning interval as follows,

Press the POWER button while pressing the TUNER/BAND
button.

To reset the interval, repeat this procedure.

NOTE

- When the AM tuning interval is changed, all preset stations
(see page 22) are cleared, The preset stations have to be set
again.

Page 32

APE PLA AGK '

BASIC OPERATIONS

MUSIC SENSOR

If there is a 4—second or longer blank between each track, the
search for the beginning of the current or next track during
playback can be easily made,

When the > of the <> button is illuminated, press the »
button to move to the next track or the « button to move to the
beginning of the current track,

When the 4 of the 4» button is illuminated, press the «
button to move to the next track, or the » button to move to
the beginning of the current track.

The search function uses a music sensor that may not be able
to detect tracks for tapes with:

- blanks of less than 4 seconds between tracks,

- noisy blanks.

- long passages of low-end sound.

- low overall recording levels.

CONTINUOUS PLAY

Alter playback on one deck finishes, the tape in the other deck
will start to play without interruption.

1 Insert tapes into decks 1 and 2.

2 Press the TAPE/DECK1/2 button to select the
deck to be played back first.

3 Press the REV MODE button to select 2).

4 Press the 4» button to start playback.
Playback continues until the l button is pressed.

About cassette tapes

0 To prevent accidental erasure, break oh the plastic tabs on
the cassette tape after recording with a screwdriver or other
pointed tool. —. fl
@ Side Al® Tab tor side A
To record on the tape again, cover the tab openings with
cellophane tape, etc. (On Cr02 tapes, take care not to cover
the Or02 tape detection slot ©.)

-120-minute or longer tapes are extremely thin and easily
deformed or damaged. They are not recommended.

- Take up any slack in the tape with a pencil or Similar tool before
use. Slack tape may break or jam in the mechanism.
_.

I3

DOLBY NR system

The Dolby Noise Reduction system reduces tape hiss noise.
For optimum performance when playing back a tape recorded
with the DOLBY NR system, turn on the DOLBY NR system.
