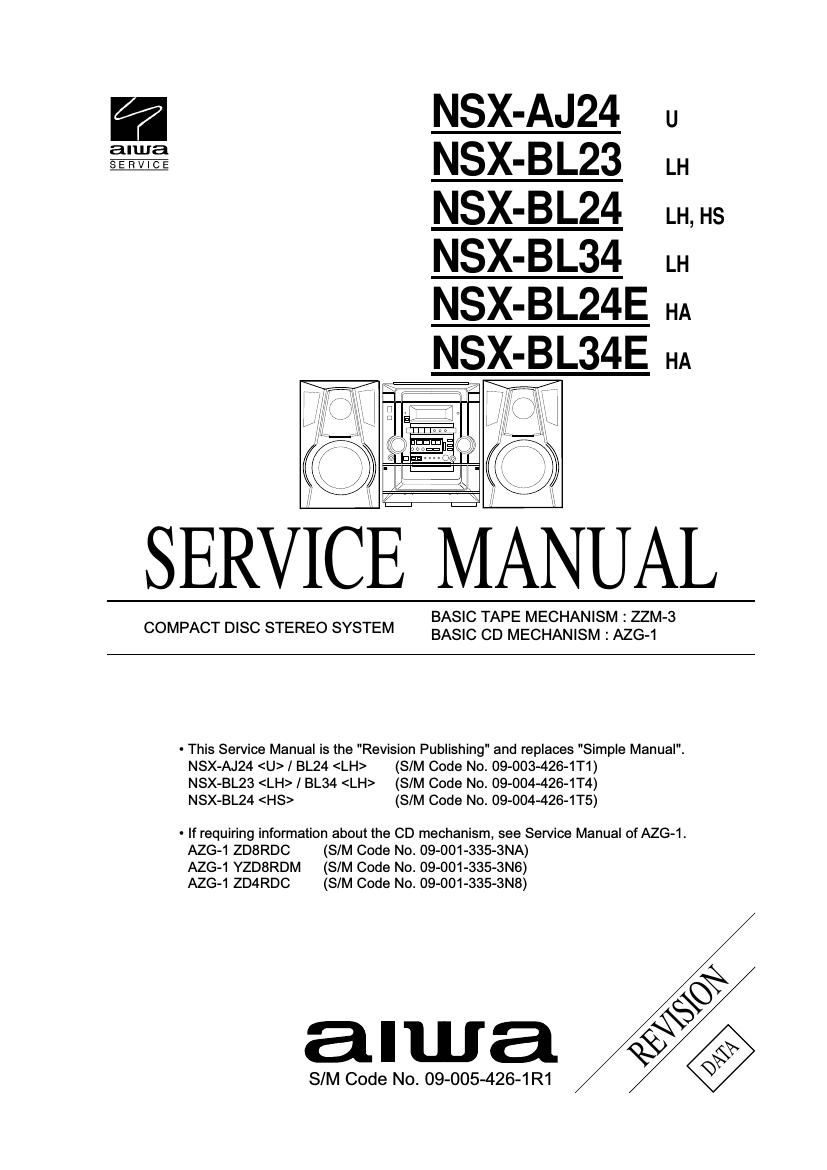

Aiwa NS XBL24E Service Manual

This is the 42 pages manual for Aiwa NS XBL24E Service Manual.
Read or download the pdf for free. If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.

Page: 1 / 42

Extracted text from Aiwa NS XBL24E Service Manual (Ocr-read)

Page 1

-� 2 -� SYSTEM COMBINATION TABLE NSX-�AJ24 RC-�ZAS02 SYSTEMCD CASSEIVERREMOTE CONTROLLER SPEAKER SX-�NAJ25 SX-�R140 NSX-�BL23 NSX-�BL24 NSX-�BL34 NSX-�BL24E NSX-�BL34ETAPE MECHANISMCD MECHANISM CX-�NAJ24 CX-�NBL23 CX-�NBL24 CX-�NBL34 CX-�NBL24E CX-�NBL34ESX-�NBL25 SX-�NBL42 SX-�NBL25 SX-�NBL42ZZM-�3 YPR1NC ZZM-�3 YPR1NC ZZM-�3 YPR1NMAZG-�1 ZD8RDC AZG-�1 ZD8RDC AZG-�1 YZD8RDM AZG-�1 ZD4RDC

Page 2

-� 3 -� Power requirements U:120 V AC, 60 Hz HS: 220 V AC, 60 Hz LH, HA: 120 V/220 230 V/240 V AC Switchable, 50/60 Hz CX-NAJ24 : Power consumption 75 W Power consumption 13 W with power economizing mode off in standby mode 0.9 W with power economizing mode on Dimensions (W x H x D) 260 x 328 x 329 mm (10 1/4 x 13 x 13 in.) Weight 6.4 kg (14 lbs 2 oz.) CX-NBL23/CX-NBL24 , CX-NBL24E : Power consumption 80 W Power consumption 13 W with power economizing mode off in standby mode 0.9 W with power economizing mode on Dimensions (W x H x D) 260 x 328 x 329 mm Weight 6.3 kg CX-NBL34 , CX-NBL34E : Power consumption 125 W Power consumption 17 W with power economizing mode off in standby mode 0.9 W with power economizing mode on Dimensions (W x H x D) 260 x 328 x 329 mm Weight 7.1 kg CX-NBL24 : Power consumption 70 W Power consumption 13 W with power economizing mode off in standby mode 0.9 W with power economizing mode on Dimensions (W x H x D) 260 x 328 x 329 mm Weight 6.3 kg Speaker system SX-NAJ25 Speaker system SX-NBL25 Speaker system SX-NBL42 Speaker system 3 way, bass reflex (magnetic shield type) Speaker units Woofer: 140 mm (5 5/8 in.) cone type Tweeter: 60 mm (2 3/8 in.) cone type Super tweeter: 20 mm ( 13/16 in.) ceramic type Impedance 6 ohms Sensitivity 87 dB/W/m Dimensions (W x H x D) SX-NAJ25/SX-NBL25: 202 x 324 x 219 mm (8 x 12 7/8 x 8 5/8 in.) SX-NBL42: 220 x 324 x 230 mm Weight SX-NAJ25/SX-NBL25: 3.8 kg (8 lbs 6 oz.) SX-NBL42 : 4.0 kg SPECIFICATIONS Main unit Tuning range 87.5 MHz to 108 MHz Usable sensitivity (IHF) 13.2 dBf Antenna terminals 75 ohms (unbalanced) Tuning range 530 kHz to 1710 kHz (10 kHz step) 531 kHz to 1602 kHz (9 kHz step) Usable sensitivity 350μV/m Antenna Loop antenna CX-NAJ24 : Power output 50 W + 50 W (50 Hz 20 kHz, T.H.D. less than 1 %, 6 ohms) 62 W + 62 W (1 kHz, T.H.D. less than 10 %, 6 ohms) Total harmonic distortion 0.08 % (25 W, 1 kHz, 6 ohms, DIN AUDIO) CX-NBL23/CX-NBL24 , CX-NBL24E : Power output Rated: 40 W + 40 W (6 ohms, T.H.D. 1 %, 1 kHz) Reference: 50 W + 50 W (6 ohms, T.H.D. 10 %, 1 kHz). Total harmonic distortion 0.05 % (25 W, 1 kHz, 6 ohms, DIN AUDIO) CX-NBL34 , CX-NBL34E : Power output Rated: 65 W + 65 W (6 ohms, T.H.D. 1 %, 1 kHz) Reference: 80 W + 80 W (6 ohms, T.H.D. 10 %, 1 kHz). Total harmonic distortion 0.05 % (40 W, 1 kHz, 6 ohms, DIN AUDIO) CX-NBL24 : Power output Rated: 24 W + 24 W (6 ohms, T.H.D. 1 %, 1 kHz) Reference: 30 W + 30 W (6 ohms, T.H.D. 10 %, 1 kHz). Total harmonic distortion 0.08 % (15 W, 1 kHz, 6 ohms, DIN AUDIO) Inputs VIDEO/AUX: 500 mV Outputs SPEAKERS: accepts speakers of 6 ohms or more SURROUND SPEAKERS : accepts speakers of 8 ohms to 16 ohms PHONES (stereo jack): accepts headphones of 32 ohms or more Track format 4 tracks, 2 channels stereo Frequency response 50 Hz 15 kHz Recording system AC bias Heads DECK 1: Playback head x 1 DECK 2: Recording/playback head x 1, erase head x 1 Laser Semiconductor laser (λ =780 nm) D/A converter 1 bit dual Signal-to-noise ratio 85 dB (1 kHz, 0 dB) Harmonic distortion 0.05 % (1 kHz, 0 dB) Design and specifications are subject to change without notice. The word "BBE"and the "BBE symbol" are trademarks of BBE Sound, Inc. Under license from BBE Sound,Inc.

Page 7

-� 8 -� DESCRIPTION REF. NO. KANRI NO. PART NO.DESCRIPTION REF. NO. KANRI NO. PART NO. C318 87-010-546-080 CAP,ELECT 0.33-50V C326 87-010-198-080 CAP,CHIP 0.022 C327 87-012-368-080 C-CAP,S 0.1-50 F C360 87-010-401-080 CAP,ELECT 1-50V C399 87-012-140-080 CAP,470P C401 87-010-544-080 CAP,ELECT 0.1-50V C402 87-010-544-080 CAP,ELECT 0.1-50V C403 87-010-321-080 CHIP CAPACITOR,82P(J) C404 87-010-321-080 CHIP CAPACITOR,82P(J) C405 87-010-197-080 CAP,CHIP 0.01 DM C406 87-010-197-080 CAP,CHIP 0.01 DM C407 87-010-197-080 CAP,CHIP 0.01 DM C408 87-010-197-080 CAP,CHIP 0.01 DM C409 87-010-182-080 C-CAP,S 2200P-50 B C410 87-010-182-080 C-CAP,S 2200P-50 B C411 87-010-405-080 CAP,ELECT 10-50V C412 87-010-405-080 CAP,ELECT 10-50V C452 87-010-382-080 CAP,ELECT 22-25V C453 87-010-183-080 C-CAP,S 2700P-50 B C454 87-010-183-080 C-CAP,S 2700P-50 B C455 87-010-183-080 C-CAP,S 2700P-50 B C456 87-010-197-080 CAP,CHIP 0.01 DM C460 87-010-196-080 CHIP CAPACITOR,0.1-25 C461 87-012-158-080 C-CAP,S 390P-50 CH C462 87-012-158-080 C-CAP,S 390P-50 CH C605 87-010-184-080 C-CAP,S 3300P-50 KB<24U,34LH,34EHA> C605 87-010-179-080 C-CAP,S 1200P<23LH,24LH,24HS,24EHA> C606 87-010-184-080 C-CAP,S 3300P-50 KB<24U,34LH,34EHA> C606 87-010-179-080 C-CAP,S 1200P<23LH,24LH,24HS,24EHA> C609 87-010-213-080 C-CAP,S 0.015-25 B C610 87-010-213-080 C-CAP,S 0.015-25 B C611 87-010-545-080 CAP,ELECT 0.22-50V C612 87-010-545-080 CAP,ELECT 0.22-50V C613 87-010-545-080 CAP,ELECT 0.22-50V C614 87-010-545-080 CAP,ELECT 0.22-50V C615 87-010-154-080 CAP,CHIP 10P C616 87-010-221-080 CAP,ELECT 470-10V C617 87-010-221-080 CAP,ELECT 470-10V C618 87-010-405-080 CAP,ELECT 10-50V C630 87-016-669-080 C-CAP,S 0.1-25 K B C631 87-010-185-080 C-CAP,S 3900P-50 B C632 87-010-185-080 C-CAP,S 3900P-50 B C633 87-016-369-080 C-CAP,S 0.033-25 B K C634 87-016-369-080 C-CAP,S 0.033-25 B K C669 87-010-322-080 C-CAP,S 100P-50 CH C670 87-010-322-080 C-CAP,S 100P-50 CH C671 87-010-196-080 CHIP CAPACITOR,0.1-25<24HS> C672 87-010-196-080 CHIP CAPACITOR,0.1-25<24HS> C673 87-010-182-080 C-CAP,S 2200P-50KB<24HS> C677 87-010-197-080 CAP,CHIP 0.01 DM C771 87-010-263-080 CAP,ELECT 100-10V C772 87-010-197-080 CAP,CHIP 0.01 DM C782 87-010-197-080 CAP,CHIP 0.01 DM C783 87-010-197-080 CAP,CHIP 0.01 DM C784 87-010-197-080 CAP,CHIP 0.01 DM C785 87-010-197-080 CAP,CHIP 0.01 DM C786 87-010-197-080 CAP,CHIP 0.01 DM C788 87-010-149-080 C-CAP,S 5P-50 CH C789 87-A10-801-080 C-CAP,S 0.022-16 JB CM<24HS> C789 87-A12-052-080 C-CAP,S 0.033-25 JB C790 87-A10-801-080 C-CAP,S 0.022-16 JB CM<24HS> C790 87-A12-052-080 C-CAP,S 0.033-25 JB C791 87-010-196-080 CHIP CAPACITOR,0.1-25 C792 87-010-197-080 CAP,CHIP 0.01 DM C793 87-010-404-080 CAP,ELECT 4.7-50V C795 87-010-197-080 CAP,CHIP 0.01 DM C796 87-010-197-080 CAP,CHIP 0.01 DM C797 87-010-405-080 CAP,ELECT 10-50V C798 87-010-197-080 CAP,CHIP 0.01 DM C799 87-010-407-080 CAP,ELECT 33-50V C800 87-012-369-080 C-CAP,S 0.047-50F C801 87-010-403-080 CAP,ELECT 3.3-50V C802 87-010-194-080 CAP,CHIP 0.047 C803 87-010-198-080 CAP,CHIP 0.022 C804 87-010-263-080 CAP,ELECT 100-10V C807 87-010-400-080 CAP,ELECT 0.47-50V C808 87-010-401-080 CAP,ELECT 1-50V C809 87-010-401-080 CAP,ELECT 1-50V C810 87-010-196-080 CHIP CAPACITOR,0.1-25 C814 87-010-197-080 CAP,CHIP 0.01 DM C815 87-010-400-080 CAP,ELECT 0.47-50V C816 87-010-400-080 CAP,ELECT 0.47-50V C821 87-010-405-080 CAP,ELECT 10-50V C823 87-010-177-080 C-CAP,S 820P-50 J SL C824 87-010-405-080 CAP,ELECT 10-50V C825 87-010-596-080 CAP,S 0.047-16 C842 87-010-197-080 CAP,CHIP 0.01 DM C844 87-010-197-080 CAP,CHIP 0.01 DM C850 87-010-260-080 CAP,ELECT 47-25V C851 87-010-197-080 CAP,CHIP 0.01 DM C852 87-010-197-080 CAP,CHIP 0.01 DM C853 87-010-197-080 CAP,CHIP 0.01 DM C858 87-010-196-080 CHIP CAPACITOR,0.1-25 C859 87-010-196-080 CHIP CAPACITOR,0.1-25 C860 87-010-197-080 CAP,CHIP 0.01 DM C959 87-010-196-080 CHIP CAPACITOR,0.1-25 C960 87-010-196-080 CHIP CAPACITOR,0.1-25 C961 87-010-152-080 C-CAP,S 8P-50 D CH GRM C963 87-015-785-080 CHIP CAPACITOR,0.1FZ-25Z C971 87-010-381-080 CAP,ELECT 330-16V C972 87-010-404-080 CAP,ELECT 4.7-50V C973 87-010-197-080 CAP,CHIP 0.01 DM C974 87-010-197-080 CAP,CHIP 0.01 DM C979 87-010-322-080 C-CAP,S 100P-50 CH C981 87-010-260-080 CAP,ELECT 47-25V C982 87-010-196-080 CHIP CAPACITOR,0.1-25 C983 87-010-197-080 CAP,CHIP 0.01 DM C984 87-010-197-080 CAP,CHIP 0.01 DM C987 87-010-197-080 CAP,CHIP 0.01 DM C991 87-010-312-080 C-CAP,S 15P-50 CH C992 87-010-312-080 C-CAP,S 15P-50 CH C993 87-010-178-080 CHIP CAP,1000P C995 87-010-178-080 CHIP CAP,1000P C997 87-010-196-080 CHIP CAPACITOR,0.1-25 C998 87-010-260-080 CAP,ELECT 47-25V C999 87-A11-155-080 CAP,TC U 0.01-16 Z F CF831 87-008-261-010 FLTR,CF SFE10.7MA5 CF832 87-008-261-010 FLTR,CF SFE10.7MA5 CN301 87-A60-620-010 CONN,3P V 2MM JMT CN351 87-A60-625-010 CONN,8P V 2MM JMT CN601 87-099-719-010 CONN,30P TYK-B(X) CN602 87-A60-131-010 CONN,6P V FE CNA1 8A-NF8-653-010 CONN ASSY,9P TID-A(480) FFC602 88-906-251-110 FF-CABLE,6P 1.25 FFE831 A8-8ZA-191-030 8ZA-1 YFEUNM<23LH> FFE831 A8-8ZA-193-070 8ZA-1 YFEUNC J202 87-A60-488-010 JACK,DIA6.3 BLK ST W/SW KM16AT J203 87-A60-238-010 TERMINAL,SP 4P (MSC) J205 87-A60-881-010 JACK,PIN 2P MSP 242V05 PBSN<24U> J602 87-A60-881-010 JACK,PIN 2P MSP 242V05 PBSN J831 87-A60-202-010 TERMINAL,ANT 4P MSP-154V-02 L101 87-A50-610-010 COIL,1UH K(MDEC) L102 87-A50-610-010 COIL,1UH K(MDEC) L451 87-007-342-010 COIL,OSC 85K BIAS L801 87-A50-540-010 COIL,FM DET(TOK)<24U,24LH> L801 87-A50-608-010 COIL,FM DET-N(TOK) L802 87-A91-551-010 FLTR,PCFJZH-450 L(TOK) L811 87-005-847-080 COIL,2.2UH(CECS) L832 87-005-847-080 COIL,2.2UH(CECS) L951 8A-NF8-667-010 COIL,AM PACK 4(TOK)

Page 13

-� 14 -� SCHEMATIC DIAGRAM -� 1 (MAIN : 1 / 2 )

Page 30

-� 31 -� 30 82-NF7-210-110 GUIDE,FL(*) 31 8A-NF8-007-010 PANEL,LEFT V-2 32 8A-NF8-005-010 PANEL,TOP 33 8A-NF8-006-010 WINDOW,TOP 34 8A-NF8-206-010 HLDR,PWB M 35 84-ZG1-245-210 CAP,OPTICAL 36 8A-NF0-062-010 CABI,REAR LHSC 24<24LHSC> 36 8A-NF0-061-010 CABI,REAR USC<24USC> 37 88-906-251-110 FF-CABLE,6P 1.25 38 8A-NF8-205-010 HLDR,IC<24LHSC> 38 86-NF6-211-010 HLDR,IC T1.6<24USC> 39 8A-NF9-211-010 HLDR,PWB PT HI 40 87-NF4-221-010 HLDR,CABLE 41 87-A80-092-010 AC CORD ASSY,E BLK SUN FAI<24LHSC> 41 87-A80-110-010 AC CORD ASSY,U SPT-2W<24USC> 42 87-085-185-010 BUSHING, AC CORD (E)<24LHSC> 42 87-A91-422-010 BUSHING,AC CORD(U)<24USC> 43 8A-NF8-008-010 PANEL,RIGHT V-2 44 8Z-NB8-240-010 COVER, PL A 87-067-703-010 TAPPING SCREW, BVT2+3-10 B 87-NF4-224-010 S-SCREW,IT3B+3-8 CU C 87-067-581-010 TAPPING SCREW, BVT2+3-15 D 87-067-689-010 TAPPING SCREW, BVTT+3-8 E 87-723-096-410 QT2+3-10W/O SLOT BL F 87-067-641-010 UTT2+3-8(W/O SLOT)BL G 87-078-191-010 S-SCREW,IT+4-10 H 87-721-096-410 QT2+3-10 GLD I 87-721-097-410 QT2+3-12 GLD MECHANICAL PARTS LIST 1 / 1 (NSX-�AJ24) , (NSX-�BL24) DESCRIPTION REF. NO. KANRI NO. PART NO.DESCRIPTION REF. NO. KANRI NO. PART NO. Basic color symbol Color Basic color symbol Color Basic color symbol Color B Black C Cream D Orange G Green H Gray L Blue LT Transparent Blue N Gold P Pink R Red S Silver ST Titan Silver T Brown V Violet W White WT Transparent White Y Yellow YT Transparent Yellow LM Metallic Blue LL Light Blue GT Transparent Green LD Dark Blue DT Transparent Orange GM Metallic Green YM Metallic Yellow DM Metallic Orange COLOR NAME TABLE 1 8A-NF0-007-010 WINDOW,CASS 2 2 8A-NF0-006-010 WINDOW,CASS 1 3 8A-NF0-004-010 BOX,CASS 2 4 8A-NF0-003-010 BOX,CASS 1 5 8A-NF8-208-010 SPR-T,EJECT 2 6 8A-NF8-207-010 SPR-T,EJECT 1 7 8A-NF0-016-010 KNOB,RTRY JOG 8 81-532-080-010 LABEL, CASS. COMPT 9 8A-NF0-056-010 LENS,REMOCON 10 8A-NF0-016-010 KNOB,RTRY VOL 11 8A-NF0-005-010 WINDOW,DISP U 12 8A-NF0-038-010 WINDOW,CD 13 8A-NF0-014-010 PANEL,TRAY 14 87-NF4-217-110 HLDR,LOCK 2 15 87-NF4-216-010 HLDR,LOCK 1 16 86-NF9-224-010 SPR-C,LOCK 17 82-NF5-229-010 PLATE,LOCK 18 8A-NF0-025-010 KEY,ENTER 19 8A-NF8-209-010 OIL-DMPR,120 20 8A-NF0-018-010 KEY,SYNC 21 8A-NF0-019-010 KEY,CD 22 8A-NF0-010-010 KEY,ASSY OPE 1 WAY 23 8A-NF0-009-010 KEY,FUN 24 8A-NF0-021-010 REFLECTOR,ECO 25 8A-NF0-008-010 KEY,POWER 26 8A-NF0-026-010 CABI,FR LH 24<24LHSC> 26 8A-NF0-001-010 CABI,FR U<24USC> 27 88-913-301-110 FF-CABLE,13P-1.25 28 88-911-101-110 FF-CABLE,11P 1.25 29 8A-NF0-201-010 GUIDE,OPE 1 WAY !!
