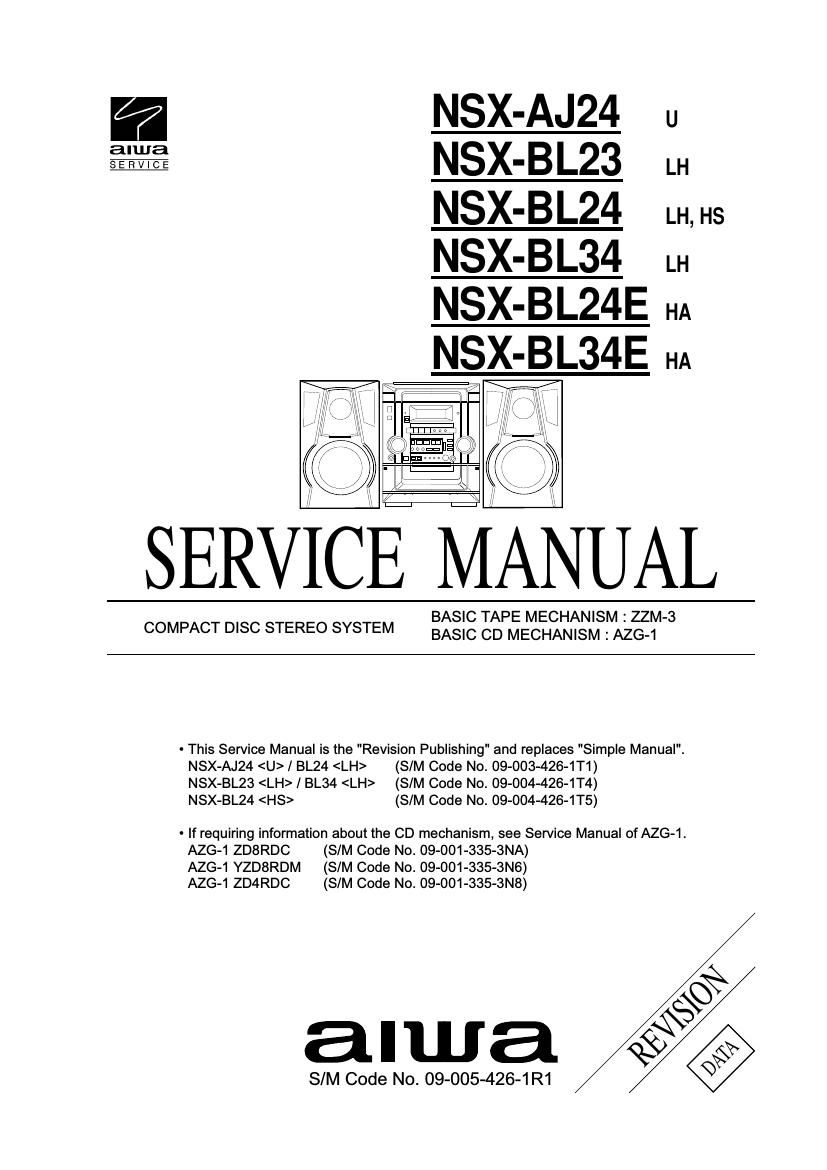

Page: 1 / 42
Aiwa NS XBL24 Service Manual

Extracted text from Aiwa NS XBL24 Service Manual (Ocr-read)


Page 1

– 2 – SYSTEM COMBINATION TABLE NSX–AJ24 RC–ZAS02 SYSTEMCD CASSEIVERREMOTE CONTROLLER SPEAKER SX–NAJ25 SX–R140 NSX–BL23 NSX–BL24 NSX–BL34 NSX–BL24E NSX–BL34ETAPE MECHANISMCD MECHANISM CX–NAJ24 CX–NBL23 CX–NBL24 CX–NBL34 CX–NBL24E CX–NBL34ESX–NBL25 SX–NBL42 SX–NBL25 SX–NBL42ZZM–3 YPR1NC ZZM–3 YPR1NC ZZM–3 YPR1NMAZG–1 ZD8RDC AZG–1 ZD8RDC AZG–1 YZD8RDM AZG–1 ZD4RDC

Page 2

– 3 – Power requirements U:120 V AC, 60 Hz HS: 220 V AC, 60 Hz LH, HA: 120 V/220 230 V/240 V AC Switchable, 50/60 Hz CX-NAJ24 : Power consumption 75 W Power consumption 13 W with power economizing mode off in standby mode 0.9 W with power economizing mode on Dimensions (W x H x D) 260 x 328 x 329 mm (10 1/4 x 13 x 13 in.) Weight 6.4 kg (14 lbs 2 oz.) CX-NBL23/CX-NBL24 , CX-NBL24E : Power consumption 80 W Power consumption 13 W with power economizing mode off in standby mode 0.9 W with power economizing mode on Dimensions (W x H x D) 260 x 328 x 329 mm Weight 6.3 kg CX-NBL34 , CX-NBL34E : Power consumption 125 W Power consumption 17 W with power economizing mode off in standby mode 0.9 W with power economizing mode on Dimensions (W x H x D) 260 x 328 x 329 mm Weight 7.1 kg CX-NBL24 : Power consumption 70 W Power consumption 13 W with power economizing mode off in standby mode 0.9 W with power economizing mode on Dimensions (W x H x D) 260 x 328 x 329 mm Weight 6.3 kg Speaker system SX-NAJ25 Speaker system SX-NBL25 Speaker system SX-NBL42 Speaker system 3 way, bass reflex (magnetic shield type) Speaker units Woofer: 140 mm (5 5/8 in.) cone type Tweeter: 60 mm (2 3/8 in.) cone type Super tweeter: 20 mm ( 13/16 in.) ceramic type Impedance 6 ohms Sensitivity 87 dB/W/m Dimensions (W x H x D) SX-NAJ25/SX-NBL25: 202 x 324 x 219 mm (8 x 12 7/8 x 8 5/8 in.) SX-NBL42: 220 x 324 x 230 mm Weight SX-NAJ25/SX-NBL25: 3.8 kg (8 lbs 6 oz.) SX-NBL42 : 4.0 kg SPECIFICATIONS Main unit Tuning range 87.5 MHz to 108 MHz Usable sensitivity (IHF) 13.2 dBf Antenna terminals 75 ohms (unbalanced) Tuning range 530 kHz to 1710 kHz (10 kHz step) 531 kHz to 1602 kHz (9 kHz step) Usable sensitivity 350μV/m Antenna Loop antenna CX-NAJ24 : Power output 50 W + 50 W (50 Hz 20 kHz, T.H.D. less than 1 %, 6 ohms) 62 W + 62 W (1 kHz, T.H.D. less than 10 %, 6 ohms) Total harmonic distortion 0.08 % (25 W, 1 kHz, 6 ohms, DIN AUDIO) CX-NBL23/CX-NBL24 , CX-NBL24E : Power output Rated: 40 W + 40 W (6 ohms, T.H.D. 1 %, 1 kHz) Reference: 50 W + 50 W (6 ohms, T.H.D. 10 %, 1 kHz). Total harmonic distortion 0.05 % (25 W, 1 kHz, 6 ohms, DIN AUDIO) CX-NBL34 , CX-NBL34E : Power output Rated: 65 W + 65 W (6 ohms, T.H.D. 1 %, 1 kHz) Reference: 80 W + 80 W (6 ohms, T.H.D. 10 %, 1 kHz). Total harmonic distortion 0.05 % (40 W, 1 kHz, 6 ohms, DIN AUDIO) CX-NBL24 : Power output Rated: 24 W + 24 W (6 ohms, T.H.D. 1 %, 1 kHz) Reference: 30 W + 30 W (6 ohms, T.H.D. 10 %, 1 kHz). Total harmonic distortion 0.08 % (15 W, 1 kHz, 6 ohms, DIN AUDIO) Inputs VIDEO/AUX: 500 mV Outputs SPEAKERS: accepts speakers of 6 ohms or more SURROUND SPEAKERS : accepts speakers of 8 ohms to 16 ohms PHONES (stereo jack): accepts headphones of 32 ohms or more Track format 4 tracks, 2 channels stereo Frequency response 50 Hz 15 kHz Recording system AC bias Heads DECK 1: Playback head x 1 DECK 2: Recording/playback head x 1, erase head x 1 Laser Semiconductor laser (λ =780 nm) D/A converter 1 bit dual Signal-to-noise ratio 85 dB (1 kHz, 0 dB) Harmonic distortion 0.05 % (1 kHz, 0 dB) Design and specifications are subject to change without notice. The word "BBE"and the "BBE symbol" are trademarks of BBE Sound, Inc. Under license from BBE Sound,Inc.
