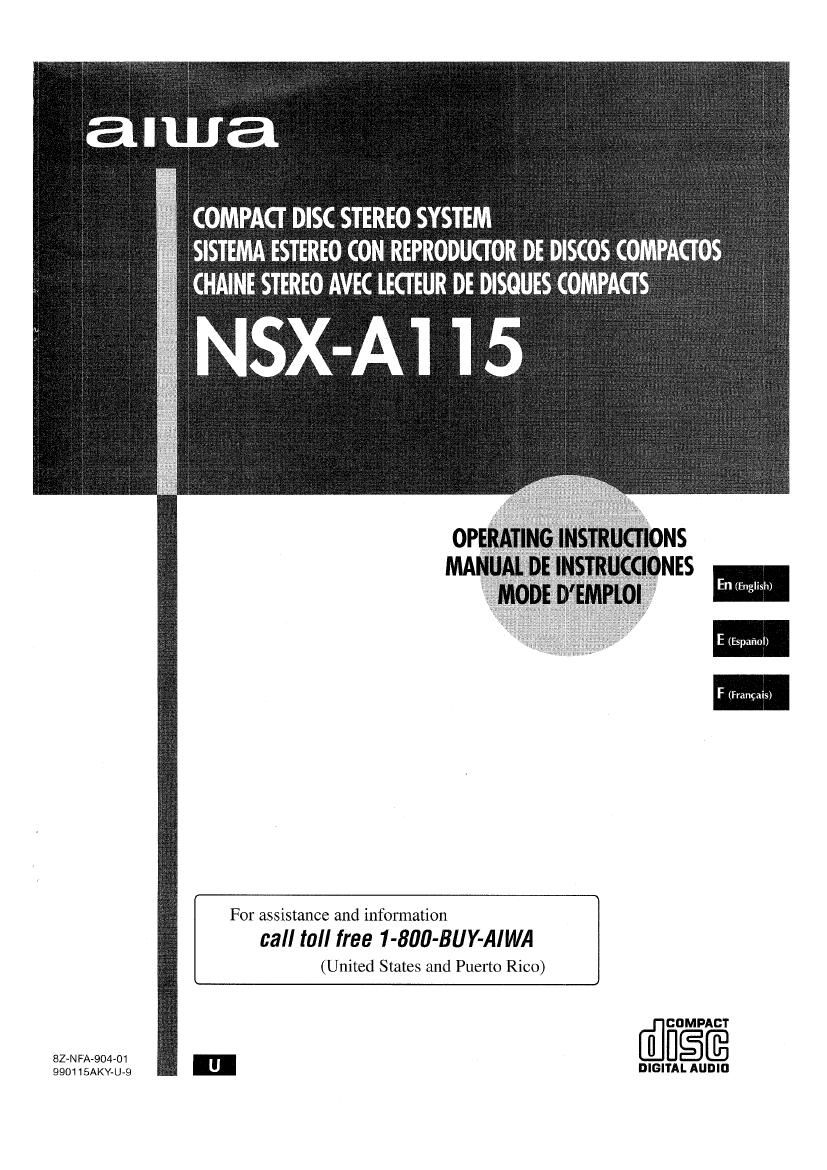

Aiwa NS XA115 Owners Manual

This is the 56 pages manual for Aiwa NS XA115 Owners Manual.
Read or download the pdf for free. If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.

Page: 1 / 56
left right
Aiwa NS XA115 Owners Manual

Extracted text from Aiwa NS XA115 Owners Manual (Ocr-read)


Page 2

— ENGLISH _

CAUTION

RISK OF ELECTRIC SHOCK
DO NOT OPEN

“CAUTION:TO REDUCE THE RISK OF
ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL."

Owner’s record

For your convenience, record the model number and serial
number (you will find them on the rear of your set) in the space
provided below. Please relerto them when you contact your Aiwa
dealer in case of difficulty.

Model No. Serial No. (Lot No.)
CX-NA115

SX‘NAI 15

2 ENGLISH

PRECAUT NS

Read the Operating Instructions carefully and completely before
operating the unit. Be sure to keep the Operating Instructions
for future reference. All warnings and cautions in the Operating
Instructions and on the unit should be strictly followed, as well
as the safety suggestions below.

Installation

1 Water and moisture — Do not use this unit near water, such
as near a bathtub, washbowl, swimming pool, or the like.

2 Heat ——- Do not use this unit near sources of heat, including
heating vents, stoves, or other appliances that generate heat.
It also should not be placed in temperatures less than 5°C
(41°F) or greater than 35°C (95°F).

3 Mounting surface — Place the unit on a flat, even surface.

4 Ventilation — The unit should be situated with adequate
space around it so that proper heat ventilation is assured.
Allow to cm (4 in.) clearance from the rear and the top of the
unit, and 5 cm (2 in.) from each side.

— Do not place the unit on a bed, rug, or similar surface that
may block the ventilation openings,

- Do not install the unit in a bookcase, cabinet, or airtight rack
where ventilation may be impeded.

5 Objects and liquid entry —Take care that objects or liquids
do not get inside the unit through the ventilation openings.

6 Carts and stands ~When placed
or mounted on a stand or cart, the
unit should be moved with care.
Quick stops, excessive force, and
uneven surfaces may cause the
unit or cart to overturn or tall.

7 Condensation ——> Moisture may form on the CD pickup lens
when:

- The unit is moved from a cold spot to a warm spot

- The heating system has just been turned on

- The unit is used in a very humid room

- The unit is cooled by an air conditioner

When this unit has condensation inside, it may not function
normally. Should this occur, leave the unit for a few hours,
then try to operate again.

8 Wall or ceiling mounting ‘The unit should not be mounted
on a wall or ceiling, unless specified in the Operating
instructions.

Electric Power

1 Power sources — Connect this unit only to power sources
specified in the Operating Instructions, and as marked on the
unit.

2 Polarization — As a safety feature, some units are equipped
with polarized AC power plugs which can only be inserted
one way into a power outlet. It it is difficult or impossible to
insert the AC power plug into an outlet, turn the plug over and
try again. if it still does not easily insert into the outlet, please
call a qualified service technician to service or replace the
outlet. To avoid defeating the safety feature ol the polarized
plug, do not force it into a power outlet.

3 AC power cord
- When disconnecting the AC power cord, pull it out by the

AC power plug. Do not pull the cord itself.

- Never handle the AC power plug with wet hands, as this
could result in fire or shock.

- Power cords should be firmly secured to avoid being severely
bent, pinched, or walked upon. Pay particular attention to
the cord from the unit to the power outlet.

- Avoid overloading AC power plugs and extension cords
beyond their capacity, as this could result in tire or shock.

Page 16

0N5

CONNECTING OPTIONAL'EQUIPMENT

--- CD DIGITAL OUT
(OPTICAL)


—- VIDEO/AUX

Refer to the operating instructions of the connected equipment

for details.

- The connecting cords are not supplied. Obtain the necessary
connecting cords.

- Consult your local Aiwa dealer for optional equipment.

VIDEO/AUX JACKS
This unit can input analog sound signals through these jacks.
Use a cable with RCA phono plugs to connect audio equipment
(turntables, LD players, MD players, VCRs, TV, etc.).

Connect the red plug to the VIDEO/AUX Ft jack. and the white
plug to the VIDEO/AUX L jack.

When connecting a turntable
Use an Aiwa turntable equipped with a built-in equalizer amplifier.

CD’DIGITAL our (OPTICAL) JACK

This unit can output CD digital sound signals through this jack.
Use an optical cable to connect digital audio equipment (DAT
deck, MD recorder, etc.).

Remove the dust cap from the CD DIGITAL OUT (OPTICAL)
jack. Then, connect an optical cable plug to the CD DIGITAL

our (OPTICAL) jack.

é?
ALI ’. .. AL) /
(DPT'G II ‘ifi (0"“0

When the CD DIGITAL OUT (OPTICAL) jack is not being
used
Attach the supplied dust cap.

16 ENGLISH

LISTENING TO EXTERNAL SOURCES

To play equipment connected to the VIDEO/AUX lacks proceed
as follows.

1 Press VIDEO/AUX.
“VIDEO" appears on the display.

2 Play the connected equipment.

To change a source name In the display

When VIDEO/AUX is pressed, “VIDEO" is displayed initially. It
can be changed to “VIDEO”, “AUX" or ”TV".

With the power on, press POWER while pressing VIDEO/AUX.
Repeat the procedure to select one of the names.
