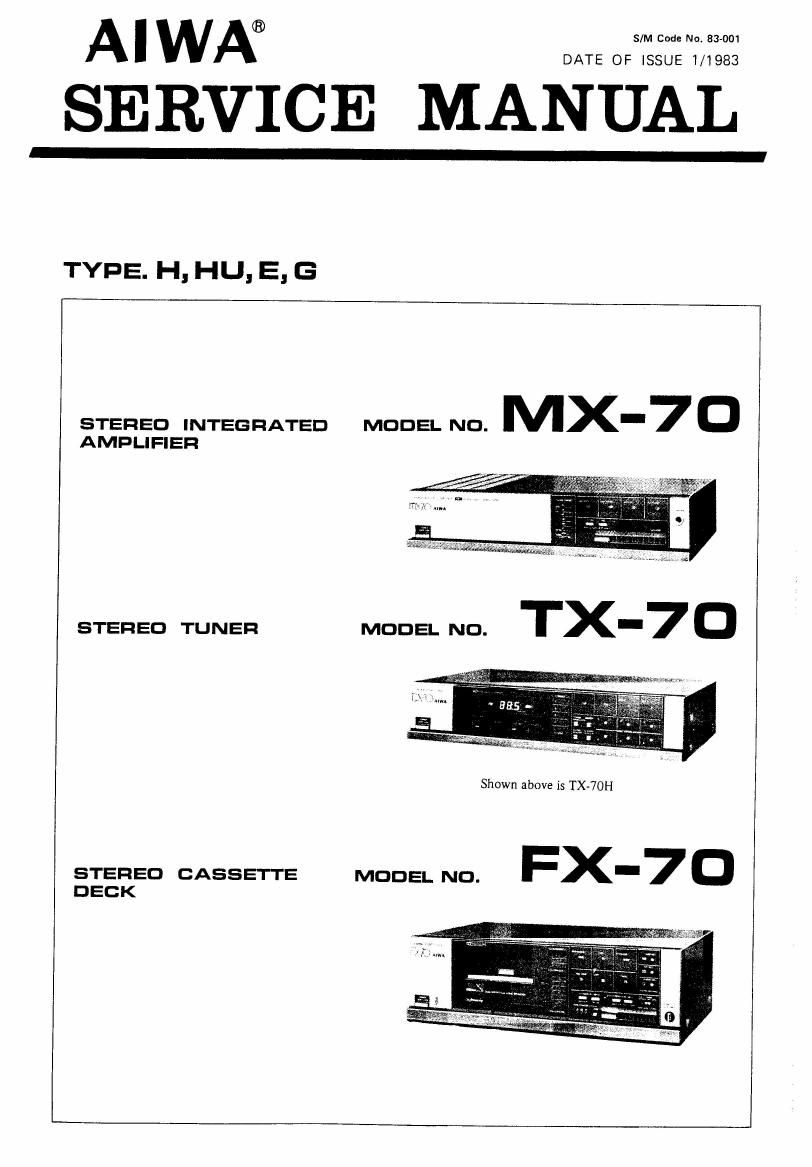

Aiwa MX 70 TX 70 FX 70 Service Manual (1)

This is the 48 pages manual for Aiwa MX 70 TX 70 FX 70 Service Manual (1).
Read or download the pdf for free. If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.

Page: 1 / 48
left right
Aiwa MX 70 TX 70 FX 70 Service Manual (1)

Extracted text from Aiwa MX 70 TX 70 FX 70 Service Manual (1) (Ocr-read)


Page 2

H,HU
MX-70, TX-70 E,G

SPECIFICATIONS = MX-70

Stereo Integrated amplifier
8 ICs, 26 transistors,
40 drodes,13 LEDs

H, HU, E mode)
AC 120/220/240V
switchable, 50/60 Hz

G model
AC 240V, 50/60 Hz
H, HU model
65W
E, G model
160W
330(W) x 71(H) x 200(D) mm
(12-7/8" x 2-5/8”x 7 7/8")
3.65 kg (8.04lbs.)

Type:
Semiconductors:

Power source:

Power consumption:

Dimensions:

Weight:

< Power amplifier >
Effective output power: H,HU models

45W + 45W (89, EIAJ 5%

lkHz)
E, G model
30W + 30W (851,T.H.D.0.05%,
40 HZ ~ 20 kHz)
< FTC Rule >
35 Watts per channel, Min.
RMS at 8 ohms, from 30 Hz
~ 20 kHz, with no more than
0.2% Total Harmonic Distortion.
Less than 0.03% (lkHz, 30W)
30 Hz to 50,000 Hz (Less than 0.5%)
[Both channels driven, 8 n]

40 Hz to 70,000 Hz lig‘SdB)

Total harmonic distortion:
Output bandwidth:

Frequency response:

SPECIFICATIONS =TX-70

< GENERAL >
Semiconductors: H, HU models
8 le, 5 FETs, 21 transistors,
38 diodes, 9 LE Ds,
E model
8 ICs, 5 FETs, 26 translators,
35 diodes, 9 LEDs
(5 model
8 le, 5 FETs, 20 transistors,
37 diodes. 9 LEDs
H,HU,E models
AC 120V/220 ~ 240V
Switchable, 50/60 Hz
G model
AC 240V, 50/60 Hz
10W

Power source:

Power consumption:

Dimensions: 330(W) x 71 (H) x 200(0) mm
(13" x 2-3/ " x 7-7/8")
Weight: 2.1 kg (4.63 lbs.)

< FM TUNER SECTION >
Frequency ranges: 87.5 ~ 108.0 MHz
Intermediate frequency: 107 MHz
IHF sensitivity: 8 t 2 dB (at 87.5, 98.0,1080 MHz)
(THD 3%)
50 dB quieting sensitivity: Less than 40 dB (at 98.0 MHZ)
Image frequency interference ratio:

More than 60 dB (at 98.0 MHz)
Intermediate frequency interference ratio:

More than 80 dB (at 98.0 MHz)

SN ratio: (MONO)
(Weighted) More than 70 dB (98.0 MHz)
(STEP) E0)

More than 63 dB (98.0 MHz)
Total harmonic distortion: (MONO)
(Input level 60 (13) Less than 0.3% (at 98.0 MHz)
(STEREO)
Less than 0.4% (at 98.0 MHI)
More than 48 dB (at 98.0 :18)

AM suppression ratio:
30 t 10 dB (at 98.0 MHZ)

Muting response:

Less than AUX 2mV
Less than 40

Residual noise
Damping factor:
(1 kHz 8 P.)

< Preamplifier >
Signal to noise ratio:
(Weighted)

PHONO (MM) More than 79 dB
TUNER, AUX More than 87 dB
TAPE More than 87 dB
(IHF A curve, short circuit)

Tone controls: BASS 100 Hz —10.0 t 1.2 dB
+11.7 : 1.2 dB
TREBLE 10 kHI -8.0 e 1.0 dB
+7.4 t (.2 dB
D.S.L: 50 Hz +165 dB i 2 dB

$0.7 dB (20 Hz to 20,000 Hz)

Channel separation: More than 40 dB

lnputjacks: PHONO (MM) 3 mV/47 kn
(Sensitivitv/ TUNER 15C) mV/47 kn
input impedance): TAPE I50 mV/47 kn
MIC I mV/S kn
Outputjacks: TAPE 150 mV/47 kn
(Level/output impedance): HEADPHONES I mV/IW, 8 a
SPEAKERS 8 X7.

0 The specifications and external appearance of this set are subject
to change without prior notioe.

Effective selectivity: More than 60 dB (at 98.0 MHz)

(at 400 Hz)
Capture ratio: Less than 2.5 dB (at 98.0 MHZ)
30 Hz ~15 kHz (o :‘deI
More than 35 dB (at 1 kHz)

Less than 30 :13 dB (at 98.0 MHZ)

Frequency response:
Separation:

Auto stop level:

< AM TUNER SECTION >

Frequency ranges: MW (AM) 522' ~ 1611 kHz
LW 144 ~ 353 kHz
(E model only)
Intermediate frequency: 450 kHz
Sensitivity: MW (AM) Less than 57 dB
(S/N 20 dB, bar antenna) (at 603 kHz)
Less than 55 dB (at 999,
1404 kHz)
LW Less than 65 dB

(at155, 200, 290 kHz)
(E model only)
Image frequency interference ratio:

MW (AM) More than 40 dB
(at 999 kHz)
LW More than 45 dB

(at 200 kHz) (E model only)
Intermediate frequency interference ratio:

MW (AM) More than 30 dB
(at 999 kHz)

Selectivity: MW (AM) More than 40 d8
(:9 kHz) (at 999 kHz)

Total harmonic distortion: MW (AM) Less than 1.0% (at 999 kHz)

AGC characteristic: MW (AM) 52 1 10 dB (at 999 kHz)
SN ratio: MW (AM) More than 48 dB
(74 dB input)
Auto stop level: MW (AM) 60 z 10 dB
LW 72 I 8 dB (E model only)

o Specifications and external appearance are subject to change
without due to product inprvement,
