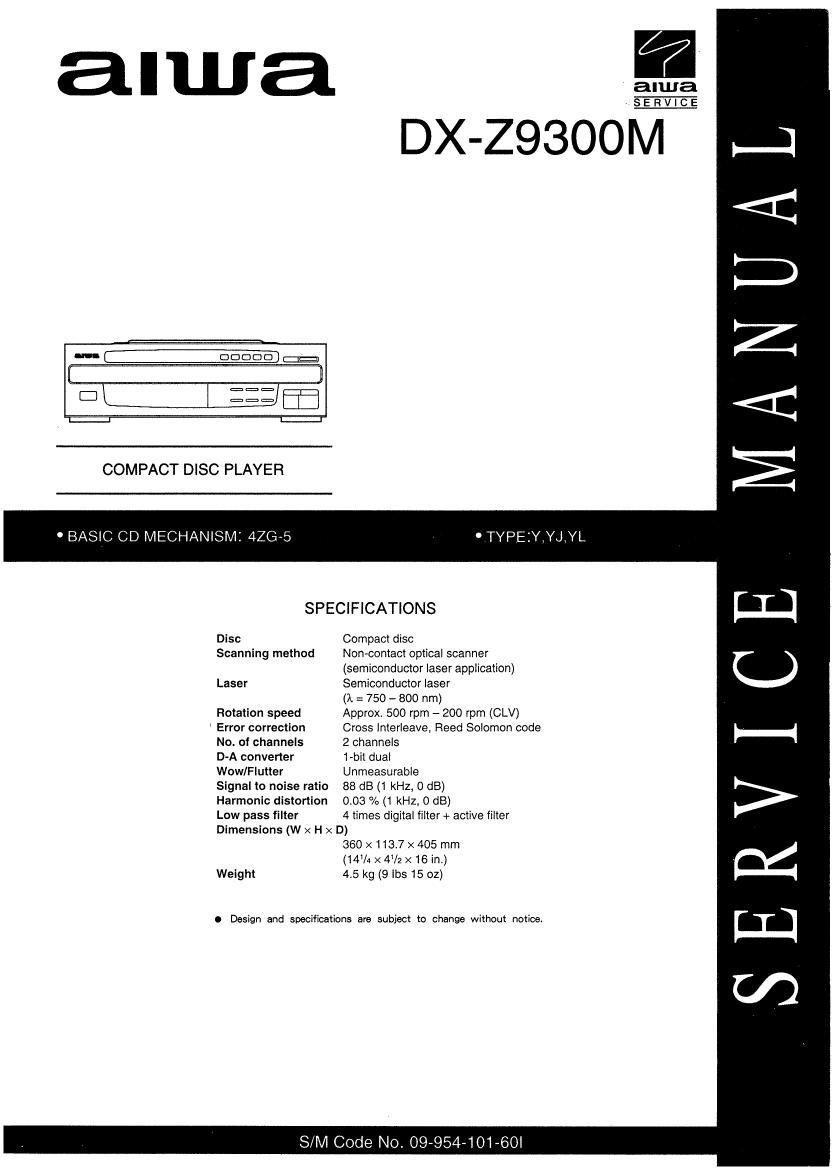

Aiwa DX Z9300M Service Manual

This is the 29 pages manual for Aiwa DX Z9300M Service Manual.
Read or download the pdf for free. If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.

Page: 1 / 29
left right
Aiwa DX Z9300M Service Manual

Extracted text from Aiwa DX Z9300M Service Manual (Ocr-read)


Page 2

CAUTION WHEN SERVICING

DX-ZS300 do no have a power transformer and recive ther power supplies from the cassettereceiver and
amplifier through a 11—pin flat cable.

If the cassette receiver and available. follow the procedure below.

Connect the Multi—power supply (LPS-9088) in the manner below.

~FL201 does not light as AC power for FL201

is not supplied.

Connection diagram when using multi power supply (LPS—9088).

~Connect to J1 of the LPS—9088 using multiconversion harness.

Connection diagram of multi—conversion harness

<—
MX -— ZQSOOM

—>
Multi - power supply

©©OII§

Short bar
Jumper cable

Ground cable of pin plug

Power output terminal
Relay terminal

Pin jack

LPS - 9088

Power terminals

+4.7V -13V +13V

Upper Upper UDDer
stage stage stage

CN303

P—ON
AC-COM
AC—1
AC—2

————> OUTPUT (Lch)

> OUTPUT (Lch)

GND (Signal system)

<— + 4.7V
GND (Power supply)
<— — 13V
+— + 13V

Upper
stage

External equipment
(amplifire, etc.)

OUT
PUT
L R

Upper Upper
stage stage

Page 4

PROTECTION OF EYES FROM LASER BEAM DURING SERVICING

This set employs laser. Therefore. he sure to follow carefully
the instructlons below when servicing‘

WARNING”

WHEN SERVICING, DO NOT APPROACH THE LASER EXIT -
WITH THE EYE TOO CLOSELY. IN CASE IT IS NECESSARY
TO CONFIRM LASER BEAM EMISSION. BE SURE TO
OBSERVE FROM A DISTANCE OF MORE THAN 300m
FROM THE SURFACE OF THE OBJECTIVE LENS ON THE
OPTICAL PICK-UP BLOCK.

l Caution: Invisible laser radiation when
open and interlocks defeated avoid expo—
sure to beam

I Advarsel: Usynlig Iaserstéling ved abning,
nar sikkerhedsaibrydere er ude at tunktlon.
Undga udsaattelse for strallng.

VAROITUSI

Lalteen Kaynemlnen muulla kuin téssé kéyttoohleessa malnit-
ulla tavalla saattaa allistaa kayt-taién lurvallisuusluokan 1 ylit-
tavélle nékyméittdmélle lasersateilylle.

VARNINGI

Om apparaten anvénds pa annat sétt an vad som specificeras
l denna bruksanvislng, kan anvéndaren utsélttas for osynling
laserstralning, sorn overskrider grénsen tor laserklass 1.

Precaution to replace Optical block
(KSS—ZIOA)

ground body and workbench. and use care
the clothes do not touch the diode.

Body or clothes electrostatic potential could
ruin laser diode in the optical block. Be sure

1) After the connection. remove solder shown

in figure below.

PICK-UP Assy P.C.B

VJ

CAUTION

Use of controls or adjustments or performance of procedures
other than those specified herein may result in hazardous radi-
ation exposure.

A‘I'I'ENTION

L’utilisation de commandes, réglages ou procedures autres que
ceux spécitiés pout entrainer une dengereuse exposition aux
radiations.

ADVARSELI
Usynlig laserstéling ved abnlng, nar slkkerhedsafbrydereer ude
at tunktlon. Undga udsaettelse for stréling.

This Compact Disc player ls classified as 3 CLASS 1 LASER
product.
The CLASS 1 LASER PRODUCT label is located on the rear
exterior.

LASER PRODUCT
LASER PRODUKT

LASER LAITE
LASER APPARAT

CD PICKUP Assy

Page 16

IC DESCRIPTION

IC, CX D251 80
Pin No. Pin Name I/O Description

1 SCOR 0 1H when the subcode sync SO or $1 is detected. (Not used)
2 SBSO O SUBP ~ W serial output. (Not used)
3 EXCK I Clock input for SBSO read out. (Not used)
4 SQSO O SUBQ 80-bit serial output.
5 SQCK I Clock input for SQSO read out.
6 MUTE I H to mute. L to cancel. (Connected to GND)
7 SENS 0 SENS signal output to CPU. (IC 201)
8 XRST I System reset L to reset.
9 DATA I Serial data input from CPU. (IC 201)
10 XLAT I Latch input from CPU (IC 201). Latching serial data at fall down.
11 CLOK I Clock input from CPU (IC 201) to transfer serial data.
12 VSS - GND.
13 SEIN I SENS input from SSP (CXA1782BQ).
14 CNIN I Numbers of track jump are counted and input.
15 DATO 0 Serial data output to SSP (CXA178213Q).
16 XLTO 0 Serial data latched output to SSP (CXA17823Q). Latched at fall down edge.
17 CLKO O Clock input from SSP (CXA17SZBQ) to transfer serial data.
18 TEST2 I TEST. (Connected to +5V)

19~21 SPOB~D I Input from INSIDE LIMII‘ switch (SW1).
22 XLON O Mute control output. (Not used)
23 FOK I Focus 0K input pin. Used for SENS output and servo auto sequencer.
24 MON 0 Spindle motor ONIOFF control output.
25 MDP 0 Spindle motor servo control output.
26 MDS O Spindle motor servo control output. (Not used)
27 LOCK O GFS is sampled by 460Hz. H output when GFS is H. L output when GFS is L for 8

consecutive times.

18 TESTl I TEST. (Connected to GND)
19 F110 0 Filter output to master PLL. (Slave = digital PLL)
30 FILI I Filter input to master PLL.
31 PCO 0 Charge-pump output to master PLL.
32 VDD - Power supply input. (+5V)
33 AVSSl - GND.
34 CLTV I VCO control voltage input to master PLL.
35 AVDDI « Power supply input (+5V)
36 RF I EFM signal input
37 BIAS I Constant current input to asymmetry correction circuit.
38 AYSI I Comparator voltage input to asymmetry correction circuit.
39 AYSO 0 EFM full swing output, (L = VSS, H = VDD)
40 ASYE I L: asymmetry correction OFF. H: asymmetry correction ON. (Connected to +5V)
41 WCDK 0 D/A interface, word clock (2Fs) for 48-bit slot. (Not used)
