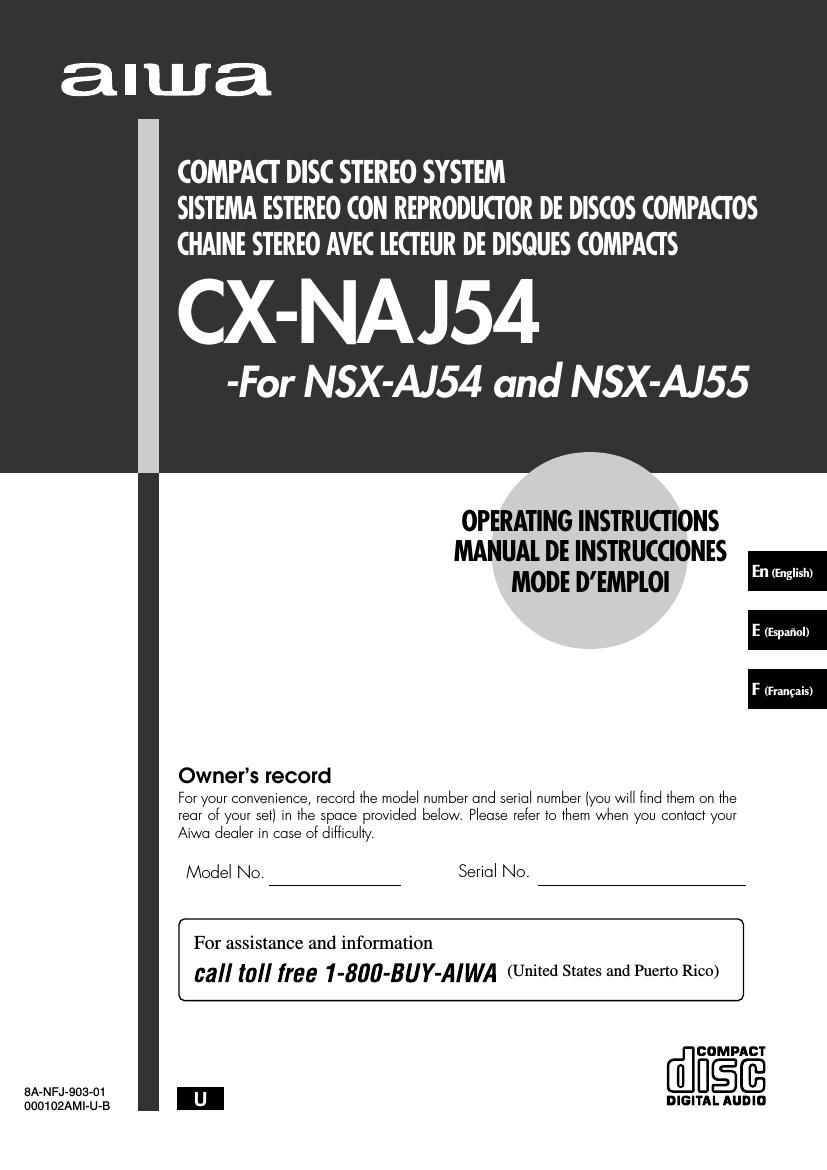

Aiwa CX NAJ54 Owners Manual

This is the 68 pages manual for Aiwa CX NAJ54 Owners Manual.
Read or download the pdf for free. If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.

Page: 1 / 68
left right
Aiwa CX NAJ54 Owners Manual

Extracted text from Aiwa CX NAJ54 Owners Manual (Ocr-read)


Page 1

2 ENGLISH ENGLISH WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. -śCAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.-ťCAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN Explanation of Graphical Symbols: The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated -śdangerous voltage-ť within the product-™s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. NOTE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Par t 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. CAUTION Modifications or adjustments to this product, which are not expressly approved by the manufacturer, may void the user-™s right or authority to operate this product. PRECAUTIONS Read the Operating Instructions carefully and completely before operating the unit. Be sure to keep the Operating Instructions for future reference. All warnings and cautions in the Operating Instructions and on the unit should be strictly followed, as well as the safety suggestions below. Installation 1 Water and moisture - Do not use this unit near water, such as near a bathtub, washbowl, swimming pool, or the like. 2 Heat - Do not use this unit near sources of heat, including heating vents, stoves, or other appliances that generate heat. It also should not be placed in temperatures less than 5°C (41°F) or greater than 35°C (95°F). 3 Mounting surface - Place the unit on a flat, even surface. 4 Ventilation - The unit should be situated with adequate space around it so that proper heat ventilation is assured. Allow 10 cm (4 in.) clearance from the rear and the top of the unit, and 5 cm (2 in.) from each side. - Do not place the unit on a bed, rug, or similar surface that may block the ventilation openings. - Do not install the unit in a bookcase, cabinet, or airtight rack where ventilation may be impeded. 5 Objects and liquid entry - Take care that objects or liquids do not get inside the unit through the ventilation openings. 6 Carts and stands - When placed or mounted on a stand or cart, the unit should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the unit or cart to overturn or fall. 7 Condensation - Moisture may form on the CD pickup lens when: - The unit is moved from a cold spot to a warm spot - The heating system has just been turned on - The unit is used in a very humid room - The unit is cooled by an air conditioner When this unit has condensation inside, it may not function normally. Should this occur, leave the unit for a few hours, then try to operate again. 8 Wall or ceiling mounting - The unit should not be mounted on a wall or ceiling, unless specified in the Operating Instructions. Electric P ower 1 Power sources - Connect this unit only to power sources specified in the Operating Instructions, and as marked on the unit. 2 Polarization - As a safety feature, some units are equipped with polarized AC power plugs which can only be inserted one way into a power outlet. If it is difficult or impossible to insert the AC power plug into an outlet, turn the plug over and try again. If it still does not easily insert into the outlet, please call a qualified service technician to service or replace the outlet. To avoid defeating the safety feature of the polarized plug, do not force it into a power outlet. 3 AC power cord - When disconnecting the AC power cord, pull it out by the AC power plug. Do not pull the cord itself. - Never handle the AC power plug with wet hands, as this could result in fire or shock. - Power cords should be firmly secured to avoid being severely bent, pinched, or walked upon. Pay particular attention to the cord from the unit to the power outlet. - Avoid overloading AC outlets and extension cords beyond their capacity, as this could result in fire or shock.

Page 2

En ENGLISH 3 4 Extension cord - To help prevent electric shock, do not use a polarized AC power plug with an extension cord, receptacle, or other outlet unless the polarized plug can be completely inserted to prevent exposure of the blades of the plug. 5 When not in use - Unplug the AC power cord from the power outlet if the unit will not be used for several months or more. When the cord is plugged in, a small amount of current continues to flow to the unit, even when the power is turned off. Outdoor Antenna 1 Power lines - When connecting an outdoor antenna, make sure it is located away from power lines. 2 Outdoor antenna grounding - Be sure the antenna system is properly grounded to provide protection against unexpected voltage surges or static electricity build-up. Article 810 of the National Electrical Code, ANSI/NFPA 70, provides information on proper grounding of the mast, supporting structure, and the lead-in wire to the antenna discharge unit, as well as the size of the grounding unit, connection to grounding terminals, and requirements for grounding terminals themselves. Maintenance Clean the unit only as recommended in the Operating Instructions. Dama ge Requiring Ser vice Have the units serviced by a qualified service technician if: - The AC power cord or plug has been damaged - Foreign objects or liquid have gotten inside the unit - The unit has been exposed to rain or water - The unit does not seem to operate normally - The unit exhibits a marked change in performance - The unit has been dropped, or the cabinet has been damaged DO NO T A TTEMPT TO SER VICE THE UNIT YOURSELF . TABLE OF CONTENTS PRECAUTIONS ................................................................... 2 PREPARATIONS CONNECTIONS ................................................................. 4 REMOTE CONTROL ........................................................... 6 BEFORE OPERATION ........................................................ 6 SETTING THE CLOCK ........................................................ 7 SOUND AUDIO ADJUSTMENTS .................................................... 8 GRAPHIC EQUALIZER ....................................................... 8 RADIO RECEPTION MANUAL TUNING ............................................................... 9 PRESETTING STATIONS ................................................ 10 TAPE PLAYBACK BASIC OPERATIONS ...................................................... 11 CD PLAYING BASIC OPERATIONS ...................................................... 12 PROGRAMMED PLAY ..................................................... 13 RECORDING BASIC RECORDING ........................................................ 14 DUBBING A TAPE MANUALLY ....................................... 15 DUBBING THE WHOLE TAPE ......................................... 15 AI EDIT RECORDING ...................................................... 16 PROGRAMMED EDIT RECORDING ............................... 17 TIMER SETTING THE SLEEP TIMER ......................................... 18 SETTING THE TIMER ...................................................... 18 OTHER FEATURES DEMO (Demonstration) .................................................. 20 OTHER CONNECTIONS CONNECTING OPTIONAL EQUIPMENT ....................... 21 LISTENING TO EXTERNAL SOURCES ......................... 21 GENERAL CARE AND MAINTENANCE ........................................... 22 TROUBLESHOOTING GUIDE ......................................... 22 SPECIFICATIONS ............................................................ 23 PARTS INDEX ................................................... Back cover FM antenna AM antenna Remote control Check your system and accessories NSX-AJ54 CX-NAJ54 Compact disc stereo cassette receiver SX-WNAJ53 Front speakers NSX-AJ55 CX-NAJ54 Compact disc stereo cassette receiver SX-WNAJ53 Front speakers SX-R275 Surround speakers

Page 4

En ENGLISH 5 PREPARATIONS 4 4 Connect the supplied antennas. Connect the FM antenna to FM 75 -„¦ terminals and the AM antenna to AM LOOP terminals. 5 5 Connect the AC cord to an AC outlet. The DEMO will begin when the AC cord is plugged into an AC outlet for the first time. To deactivate the DEMO, set the clock. -˘ Do not leave objects generating magnetism, such as credit cards, near the speakers, as these objects may be damaged. -˘ Do not bring the FM antenna near metal objects or curtain rails. -˘ Do not bring the AM antenna near other optional equipment, the stereo system itself, the AC cord or speaker cords, since noise will be picked up. -˘ Do not unwind the AM antenna wire. To position the antennas FM feeder antenna: Extend this antenna horizontally in a T-shape and fix its ends to the wall. AM antenna: Position and rotate this antenna to find the best possible reception. To stand the AM antenna on a surface Fix the claw to the slot. CONNECTING AN OUTDOOR ANTENNA For better FM reception, use of an outdoor antenna is recommended. Connect the outdoor antenna to FM 75 -„¦ terminals. To connect other optional equipment  page 21. POSITIONING THE SPEAKERS (only for NSX-AJ55) Position the speakers to make the most of the surround speaker effect. Standard positioning R: Front speaker (Right) L: Front speaker (Left) SL & SR: Surround speakers Place the surround speakers behind the listening area. To mount the surround speakers on the wall Mount each speaker on a spot that can hold its w eight. FM antenna AM antenna

Page 10

En ENGLISH 11 TAPE PLAYBACK RADIO RECEPTION TAPE PLAYBACK BASIC OPERATIONS This unit is designed for optimal playback of Type I (normal) tapes. 1 Press TAPE and press z PUSH EJECT to open the cassette holder. Insert a tape with the exposed side down. Push the cassette holder to close. 2 Press c to start play. Only the side facing out from the unit can be played back. To select a playing deck When tapes are loaded in both decks, press TAPE first to select a deck. The selected deck number is displayed. To stop play, press s. To pause play (deck 2 only), press a. To resume play, press again. To fast forward or rewind, press f or g. Then press s to stop the tape. To start play when the power is off (Direct Play Function) Press TAPE. The power is turned on and play of the inserted tape begins. To set the tape counter to 0000 Press s CLEAR in stop mode. The counter is also set to 0000 when the cassette holder is opened. When tapes are loaded in both decks After playback on deck 1 finishes, the tape in the deck 2 will start to play without interruption and will stop at the end of the tape. (Continuous play) Type II (High position) tapes can also be played back in this unit. When playing back a Type II tape, turn MULTI JOG to display -śSOFT-ť in the display. This will set the optimum playback sound for Type II tapes. However, -śSOFT-ť playback will be canceled if any graphic equalizer is selected (page 8), the unit is switched to a different audio source, the cassette holder is open, or when the power is turned off. Selected deck number Tape counter

Page 18

En ENGLISH 19 TIMER 5 Adjust the volume. The source sound will play at the volume level set in this step when the power is turned on by the timer. If the volume level is set to 17 or higher, however, it will automatically be set to 16 when the power is turned on. 6 Prepare the source. To listen to a CD, load the disc to be played first on tray 1. To listen to a tape, insert the tape into deck 1 or 2. To listen to the radio, select the band and tune in to a station. 7 Press POWER to turn off the power. When the timer-on time is reached, the unit turns on and begins play with the selected source. You can change the source that was selected in step 1 by pressing one of the function buttons before pressing ENTER or a in step 3. To check the timer setting Press TIMER. The timer-on time, the selected source, and the duration for the timer-activated period will be displayed for 4 seconds. To change any of the previous setting Carry out from step 1. However, if you do not change the timer-on time, in step 3 just press ENTER twice and continue from step 4. To cancel the timer standby mode temporarily Press TIMER repeatedly so that 5 disappears. To restore the timer standby mode, press again to display 5. Using the unit while the timer is set You can use the unit normally after setting the timer. Before turning off the power, carry out step 5 and 6. -˘Timer playback and timer recording will not begin unless the power is turned off. -˘Connected equipment cannot be turned on and off by the built- in timer of this unit. Use an external timer. TIMER RECORDING Timer recording is applicable for TUNER and VIDEO/AUX (with an external timer) sources only. Press either TUNER BAND or VIDEO/AUX to select a source, then press TIMER repeatedly until 5 flashes on the display. Within 6 seconds, carry out the steps of -śSETTING THE TIMER-ť from step 3 and insert the tape to be recorded on into deck 2 after step 6. -˘If the timer recording is done with the economizing mode (page 6) set to -śECO ON-ť or -śECO AUTO-ť and the power turns off, the dimmer mode will be set to dimmest and the volume level will be 0 (minimum level) the next time the power is turned on. -˘You cannot use the timer function to record from a CD or tape. -˘You can check the timer setting by pressing TIMER even while the power is off. In this case, if you press ENTER or a within 4 seconds after pressing TIMER, you can enter the timer setting mode and change the previous setting.

Page 51

FRANÇAIS 7 F PREPARATIONS 1 Appuyer sur ECO. -śECO MODE-ť est affichĂ©. 2 Appuyer sur ENTER dans les quatre secondes. Le statut courant du mode Ă©conomie d-™Ă©nergie est affichĂ©. 3 Tourner MULTI JOG dans les quatre secondes pour sĂ©lectionner un des modes d-™Ă©conomie d-™Ă©nergie. Exemple:Quand -śECO ON-ť est sĂ©lectionnĂ© 4 Appuyer sur ENTER dans les quatre secondes. Si l-™horloge n-™est pas rĂ©glĂ©e, l-™appareil ne s-™Ă©teint pas. Au lieu de cela, le mode DEMO dĂ©marre quand l-™alimentation est coupĂ©e. MODE VARIATEUR Pour changer la luminositĂ© de l-™affichage 1Appuyer sur ECO Ă  plusieurs reprises jusqu'Ă  ce que -śDIM MODE-ť soit affichĂ©. 2Dans les quatre secondes, appuyer sur ENTER. 3Dans les quatre secondes, tourner MULTI JOG pour sĂ©lectionner un des modes de luminositĂ© changĂ©s de manière cyclique comme indiquĂ© plus bas. 4Dans les quatre secondes, appuyer sur ENTER. DIM-OFF DIMMER 1 DIMMER 2 DIMMER 3 Le mode -śDIM-OFF-ť donne la luminositĂ© maximale et le mode -śDIMMER 3-ť donne la luminositĂ© minimale. En mode -śDIMMER 3-ť, l-™analyseur de spectre, la fenĂŞtre du sommet de l-™appareil et l-™Ă©clairage des touches s-™Ă©teignent. FENETRE CLIGNOTANTE La fenĂŞtre situĂ©e au sommet de l-™appareil s-™allume ou clignote quand l-™appareil est sous tension. Pour Ă©teindre l-™Ă©clairage de la fenĂŞtre supĂ©rieure, appuyer sur s tout en appuyant sur CD. Pour rallumer l-™Ă©clairage, rĂ©pĂ©ter cette opĂ©ration. REGLAGE DE L-™HORLOGE 1 Appuyer sur CLOCK. Quand on utilise la tĂ©lĂ©commande, appuyer sur CLOCK tout en appuyant sur SHIFT. L-™horloge est affichĂ©e. (Le signe -ś:-ť entre les heures et les minutes clignote.) 2 Dans les quatre secondes, tourner MULTI JOG pour spĂ©cifier les heures et les minutes. La rotation de MULTI JOG change Ă  la fois les heures et les minutes. On peut aussi utiliser f ou g au lieu de MULTI JOG. L e fait de tenir ces touches enfoncĂ©es fait varier l-™heure rapidement. 3 Appuyer sur ENTER ou a. L-™horloge dĂ©marre Ă  00 seconde. Pour rĂ©tablir un rĂ©glage initial de l-™horlogePour rĂ©tablir le rĂ©glage initial de l-™horloge, appuyer sur CLOCK avant de terminer l-™Ă©tape 3. Ceci annule tout nouveau rĂ©glage. Pour faire apparaĂ®tre l-™horloge quand un autre affichage est en service Appuyer sur CLOCK. L-™heure est affichĂ©e pendant quatre secondes puis l-™affichage initial rĂ©apparaĂ®t. Toutefois, l-™heure ne peut pas ĂŞtre affichĂ©e pendant l-™enregistrement. Pour passer au format de 24 heuresAppuyer sur CLOCK puis appuyer sur s dans les quatre secondes. Pour rĂ©tablir le format de 12 heures, procĂ©der de la mĂŞme manière. Dans le format de 12 heures, -śAM 12:00-ť signifie minuit et -śPM 12:00-ť signifie midi. Si l-™affichage de l-™horloge clignoteSi l-™affichage de l-™horloge clignote, cela signifie que l-™horloge s-™est arrĂŞtĂ©e du fait d-™une interruption d-™alimentation ou du fait que le cordon secteur a Ă©tĂ© dĂ©branchĂ©. L-™heure courante doit ĂŞtre rĂ©glĂ©e de nouveau. Si le mode Ă©conomie d-™Ă©nergie (page 6) est en service, l-™appareil s-™Ă©teint quand l-™alimentation est coupĂ©e. Pour faire apparaĂ®tre l-™horloge, appuyer sur CLOCK; l-™heure est alors affichĂ©e pendant quatre secondes.
