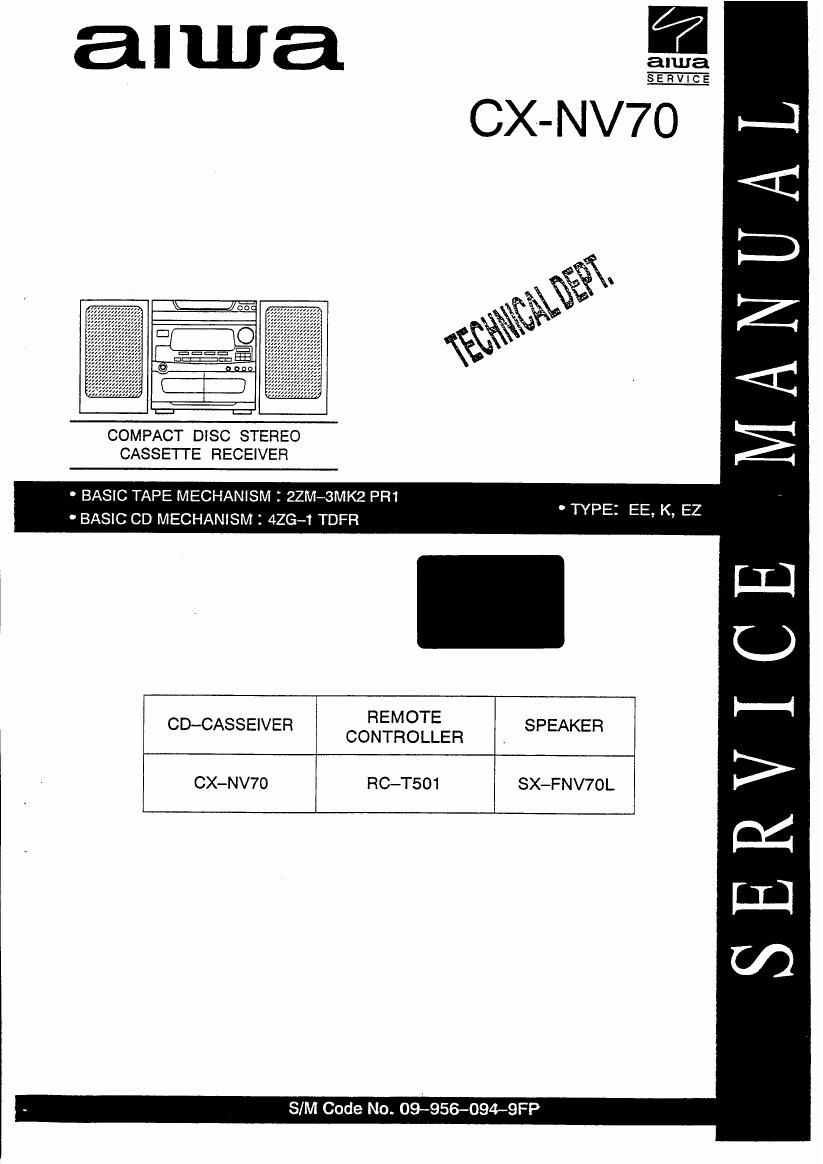

Aiwa cx nv70

This is the 50 pages manual for aiwa cx nv70.
Read or download the pdf for free. If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.

Page: 1 / 50
left right
aiwa cx nv70

Extracted text from aiwa cx nv70 (Ocr-read)


Page 2

i
I
I.

Tuning range

Usable saneltivltyfll-lF)
Antenna terminals

Tuning range

Usable sensitivity
Antenna


Tuning range
Usable sensitivity
Antenna


Power output

Total Ham-Ionic distortion
Inputs
Outputs

«assem- deck section>
Track tonnat
Frequency response

Slmal-to—nolse ratio

Recording system
Heads

SPECIFICATIONS

87.5 MHz to 108 MHz
17.2 dBf
75 ohms (unbalanced)

531 kHz to 1602 kHz (9 kHz step)
530 kHz .to 171 0 kHz (10 kHz step)
350 uV/m

Loop antenna

144 kHz to 290 kHz
1400 uV/I'n
Loop antenna

Rated 70 W + 70 W (6 ohms.
T.H.D. 1 as, 1 kHz/DIN 45500)
Reference: 85 W + 85 W (6 ohms,
T.H.D. 1o 96. 1 kHz / DIN «5324)
DIN MUSIC POWER

100 W + 100 W

0.1 16 (30 W. 1 kHz. 6 ohms, DIN-
AUDIO)

VIDEO/AUX: 150 mV adjustable
MIC 1, MIC 2: 1 mV (10 kohrns)
LINE OUT: 200 mV

SUPER WOOFEFI: 2.45 V
SPEAKERS: accepts speakers of
6 ohms or more

SURROUND SPEAKERS:
accepts speakers of 16 ohms or
more

PHONES (stereo jack): accepts
headphones of 32 ohms or more

4 tracks. 2 channels stereo

CrO2 tape: 50 Hz—16000 Hz
Normal tape: 50 Hz—15000 Hz

60 dB (Dolby 3 NR ON. Croz tape
peak level)

AC bias

Deck 1: Playback head x 1

Deck 2: Recording/playbacid
erase head x 1


Laser Semiconductor laser (A =780 nrn)
D-A converter 1 bit dual
Slgnai-to-nolse ratio 85 dB (1 kHz. 0 dB)
Harmonic distortion 0.03% (1 kHz. 0 dB)
Wow and flutter Unmeasurable

Ceblnettype a way. bass reflex with surround
speaker (Magnetism sealed type)
Speaker Wooten
140 mm (55/,in‘) cone type
Tweeter:
80 mm (3‘/. in.) cone type
Super tweeter:
50 mm (2 In.) ceramic type
Surround speaker,
so mm (3‘/. in.) cone type
impedance Front speaker: 6 ohms

Surround speaker: 16 ohms
Output sound pressure level 87 dB/WIm
DimensionaMxHxD) 206x302x265mm

(8‘lI x 12 x 10‘]2 in.)

Weight 4.0 kg (3 lbs 13 oz.)

Power requirements 230 V AC, 50 Hz
Power consumption 400 W

Dimensions 01 main unit 260 x 307.8 x 337 mm
(w x H x D) (10". x12‘/. x 133/, in.)
Weight of main unlt 7.8 kg (17 lbs. :1 oz.)

- Design and specifications are subject to change without
notice.

. Dolby noise reduction manufactured under license from Dolby
Laboratories Licensing Corporation.
‘DOLBY' and the double-D symbol DU are trademarks of Dolby
Laboratories Licensing Corporation.

- The word '33? and the ‘BBE symbol” are trademarks 01 ESE
Sound, inc.
Under license from 835 Sound, inc.
