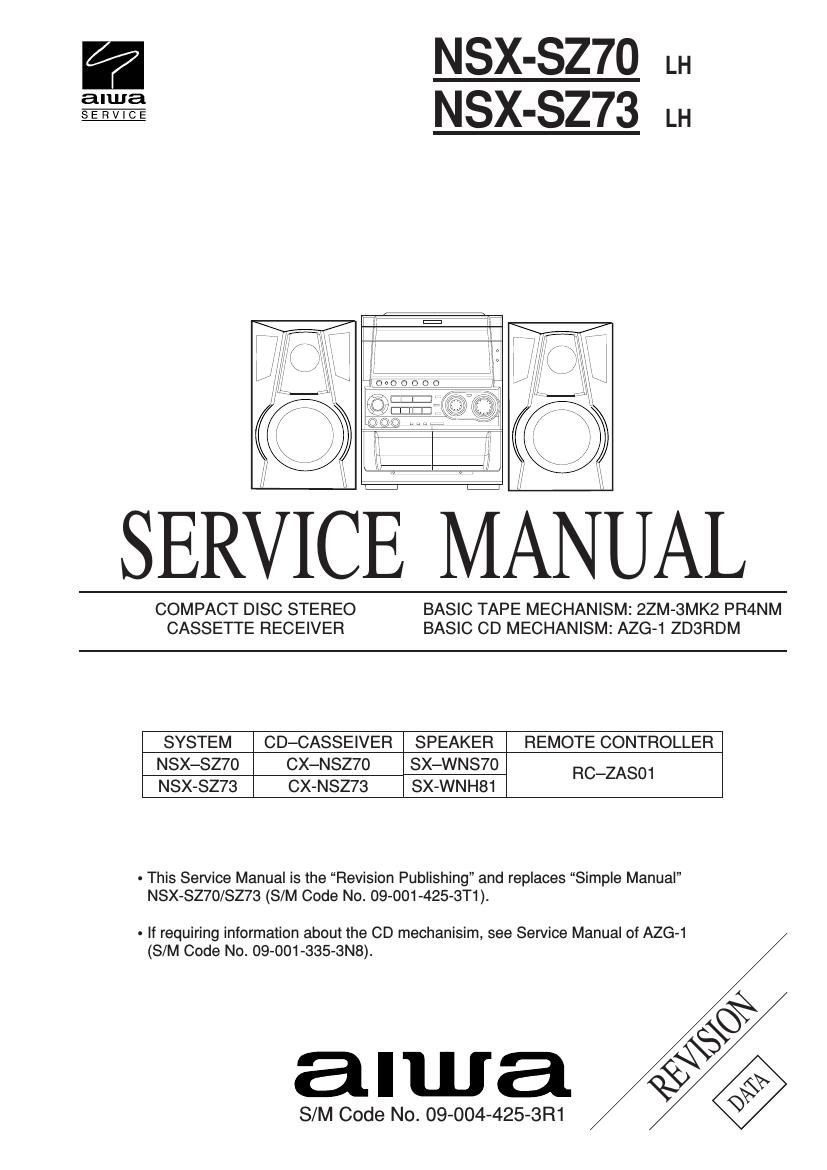

aiwa cx nsz70lh

Extracted text from aiwa cx nsz70lh (Ocr-read)


Page 1

SPECIFICATIONS ACCESSORIES / PACKAGE LIST KANRI NO. REF. NO.DESCRIPTION PART NO. Tuning range87.5 MHz to 108 MHz Usable sensitivity(IHF)13.2 dBf Antenna terminals75 ohms (unbalanced) Tuning range530 kHz to 1710 kHz (10 kHz step) 531 kHz to 1602 kHz (9 kHz step) Usable sensitivity350 uV/m AntennaLoop antenna Mid-high frequency amplifier Power outputRated: 32 W + 32 W (8 ohms, T.H.D. 1 %,1 kHz) Reference: 40 W + 40 W (8 ohms, T.H.D. 10 %,1 kHz) Total harmonic distortion0.1 % (15 W, 1 kHz, 8 ohms, DIN AUDIO) Low frequency amplifier Power outputRated: 96 W + 96 W (6 ohms, T.H.D. 1 %, 135 Hz) Reference: 120 W + 120 W (6 ohms, T.H.D. 10 %,135 Hz) Total harmonic distortion0.1 % (50 W,135 Hz,6 ohms, DIN AUDIO) InputsVIDEO/AUX : 300 mV (adjustable) MD: 316 mV (adjustable) MIC: 1.8 mV (10 kohms) OutputsSPEAKERS HIGH FREQ : accept speakers of 8 ohms or more SPEAKERS LOW FREQ : accept speakers of 6 ohms or more SURROUND SPEAKERS : accept speakers of 8 to 16 ohms LINE OUT: 210 mV PHONES (stereo jack) : accepts headphones of 32 ohms or more Track format4 tracks, 2 channels stereo Frequency responseCrO2 tape: 50 Hz -“ 16000 Hz Normal tape: 50 Hz -“ 15000 Hz Recording systemAC bias HeadsDeck 1: Playback head x 1 Deck 2: Recording/Playback head x 1, erase head x 1 LaserSemiconductor laser (λ =780 nm) D-A converter1 bit dual Signal-to-noise ratio85 dB (1 kHz, 0 dB) Harmonic distortion0.05 % (1 kHz, 0 dB) Wow and flutterUnmeasurable(NSX-SZ70) Speaker system3 way, Built-in subwoofer(magnetic shielded type Speaker unitsSubwoofer : 160 mm cone type Full range: 100 mm cone type Super Tweeter : 20 mm ceramic type Impedance6 ohms / 8 ohms Sensitivity87 dB/W/m Dimensions (W x H x D)240 x 324 x 281 mm Weight5.0 kg (NSX-SZ73) Speaker system3 way, Built-in subwoofer(magnetic shielded type Speaker unitsSubwoofer : 200 mm cone type Full range: 120 mm cone type Super Tweeter : 20 mm ceramic type Impedance6 ohms / 8 ohms Sensitivity87 dB/W/m Dimensions (W x H x D)240 x 324 x 285 mm Weight5.7 kg Power requirements120 V/220-230 V/240 V switchable, 50/60Hz Power consumption200W Power consumption inIf the power-economizing mode is standby modeECO OFF: 21 W If the power-economizing mode is ECO ON or ECO AUTO: 0.9 W Dimensions (W x H x D)260 x 330 x 395mm Weight9.5 kg -ą Design and specifications are subject to change without notice. -ą The word "BBE"and the "BBE symbol" are trademarks of BBE Sound, Inc. Under license from BBE Sound,Inc. - 2 - 1 8A-NF7-902-010 IB,LH(ESP)M 2 8A-NF7-912-010 IB,LH(ESP)M 73 3 87-006-225-010 AM LOOP ANT NC2 4 87-043-115-010 ANT,FEEDER FM 5 87-A91-017-010 PLUG,CONVERSION JT-0476 6 8Z-NF8-702-010 RC UNIT,RC-ZAS01 !

Page 2

- 3 - CLASS 1 LASER PRODUCT KLASSE 1 LASER PRODUKT LUOKAN 1 LASER LAITE KLASS 1 LASER APPARAT This set employs laser. Therefore, be sure to follow carefully the instructions below when servicing. WARNING!! WHEN SERVICING, DO NOT APPROACH THE LASER EXIT WITH THE EYE TOO CLOSELY. IN CASE IT IS NECESSARY TO CONFIRM LASER BEAM EMISSION. BE SURE TO OBSERVE FROM A DISTANCE OF MORE THAN 30cm FROM THE SURFACE OF THE OBJEC- TIVE LENS ON THE OPTICAL PICK-UP BLOCK. sCaution: Invisible laser radiation when open and interlocks defeated avoid exposure to beam. sAdvarsel: Usynlig laserstĂ„ling ved Ă„bning, nĂ„r sikkerhedsafbrydere er ude af funktion. UndgĂ„ udsĂŠttelse for strĂ„ling. VAROITUS! Laiteen KĂ€yttĂ€minen muulla kuin tĂ€ssĂ€ kĂ€yttöohjeessa mainitulla tavalla saataa altistaa kĂ€yt-tĂ€jĂ€n turvallisuusluokan 1 ylittĂ€vĂ€lle nĂ€kymĂ€ttömĂ€lle lasersĂ€teilylle. VARNING! Om apparaten anvĂ€nds pĂ„ annat sĂ€tt Ă€n vad som specificeras i denna bruksanvising, kan anvĂ€ndaren utsĂ€ttas för osynling laserstrĂ„lning, som överskrider grĂ€nsen för laserklass 1. PROTECTION OF EYES FROM LASER BEAM DURING SERVICING CAUTION Use of controls or adjustments or performance of proce- dures other than those specified herin may result in hazardous radiation exposure. ATTENTION L-™utillisation de commandes, rĂ©glages ou procĂ©dures autres que ceux spĂ©cifiĂ©s peut entraĂźner une dangereuse exposition aux radiations. ADVARSEL Usynlig laserstĂ„ling ved Ă„bning, nĂ„r sikkerhedsafbrydereer ude af funktion. UndgĂ„ udsĂŠttelse for strĂ„ling. This Compact Disc player is classified as a CLASS 1 LASER product. The CLASS 1 LASER PRODUCT label is located on the rear exterior. Precaution to replace Optical block (KSS-213F) Body or clothes electrostatic potential could ruin laser diode in the optical block. Be sure ground body and workbench, and use care the clothes do not touch the diode. 1) After the connection, remove solder shown in right figure. PICK-UP Assy P.C.B Solder
