Aiwa cx nsz50lh sm

This is the 40 pages manual for aiwa cx nsz50lh sm.
Read or download the pdf for free. If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.

Page: 1 / 40
left right

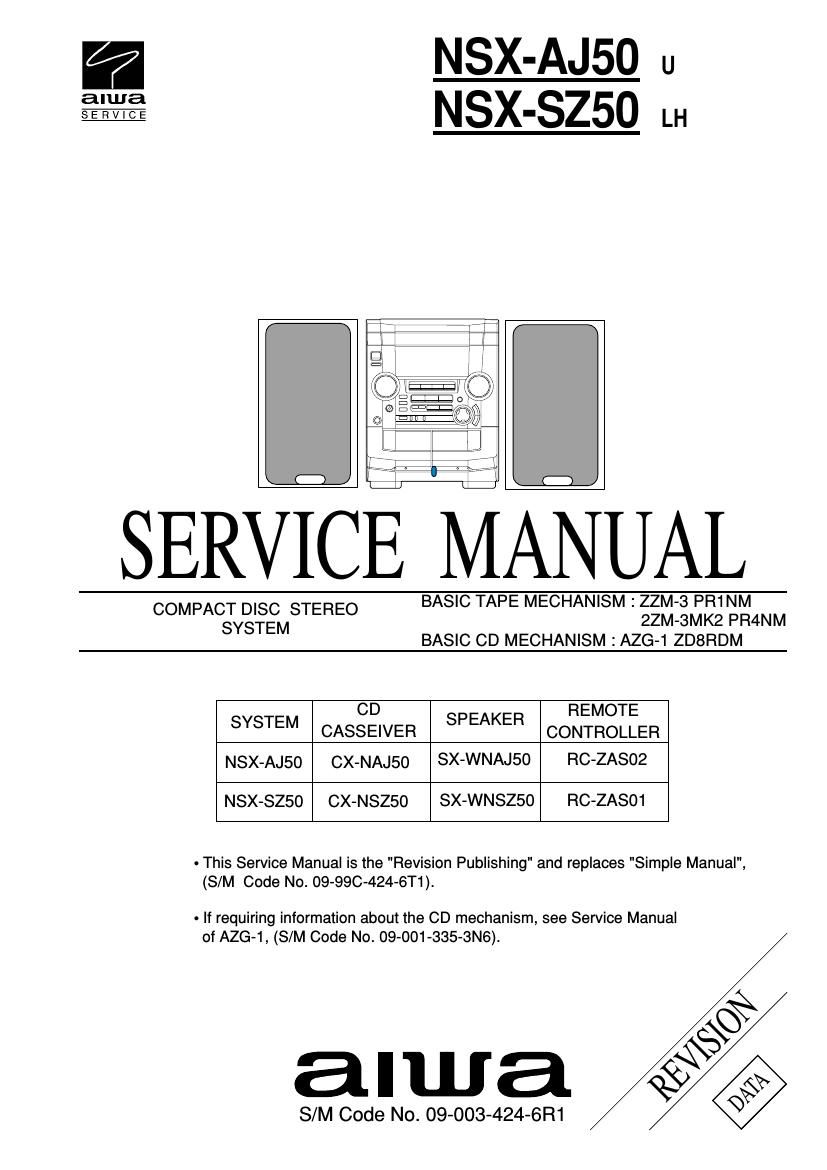

aiwa cx nsz50lh sm

Extracted text from aiwa cx nsz50lh sm (Ocr-read)


Page 2

-ď 3 -ď PROTECTION OF EYES FROM LASER BEAM DURING SERVICING VAROITUS! Laiteen K√§ytt√§minen muulla kuin t√§ss√§ k√§ytt√∂ohjeessa mainit- ulla tavalla saattaa altistaa k√§yt-t√§j√§n turvallisuusluokan 1 ylit- t√§v√§lle n√§kym√§tt√∂m√§lle lasers√§teilylle. VARNING! Om apparaten anv√§nds p√• annat s√§tt √§n vad som specificeras i denna bruksanvising, kan anv√§ndaren uts√§ttas f√∂r osynling laserstr√•lning, som √∂verskrider gr√§nsen f√∂r laserklass 1.Caution: Invisible laser radiation when open and interlocks defeated avoid expo- sure to beam. Advarsel: Usynling laserst√•ling ved √•bning, n√•r sikkerhedsafbrydere er ude af funktion. Undg√• uds√¶ttelse for str√•ling. CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. ATTENTION L'utilisation de commandes, r√©glages ou proc√©dures autres que ceux sp√©cifi√©s peut entra√ģner une dangereuse exposition aux radiations. ADVARSEL! Usynlig laserst√•ling ved √•bning, n√•r sikkerhedsafbrydereer ude af funktion. Undg√• uds√¶ttelse for str√•ling. This Compact Disc player is classified as a CLASS 1 LASER product. The CLASS 1 LASER PRODUCT label is located on the rear exterior. This set employs laser. Therefore, be sure to follow carefully the instructions below when servicing. WARNING! WHEN SERVICING, DO NOT APPROACH THE LASER EXIT WITH THE EYE TOO CLOSELY. IN CASE IT IS NECESSARY TO CONFIRM LASER BEAM EMISSION. BE SURE TO OBSERVE FROM A DISTANCE OF MORE THAN 30cm FROM THE SURFACE OF THE OBJECTIVE LENS ON THE OPTICAL PICK-UP BLOCK. CLASS 1 KLASSE 1 LUOKAN 1 KLASS 1LASER PRODUCT LASER PRODUKT LASER LAITE LASER APPARAT Precaution to replace Optical block (KSM-880CAB) 1) After the connection, remove solder shown in the right figure. Body or clothes electrostatic potential could ruin laser diode in the optical block. Be sure ground body and workbench, and use care the clothes do not touch the diode. solder PICK-UP Assy P.C.B
