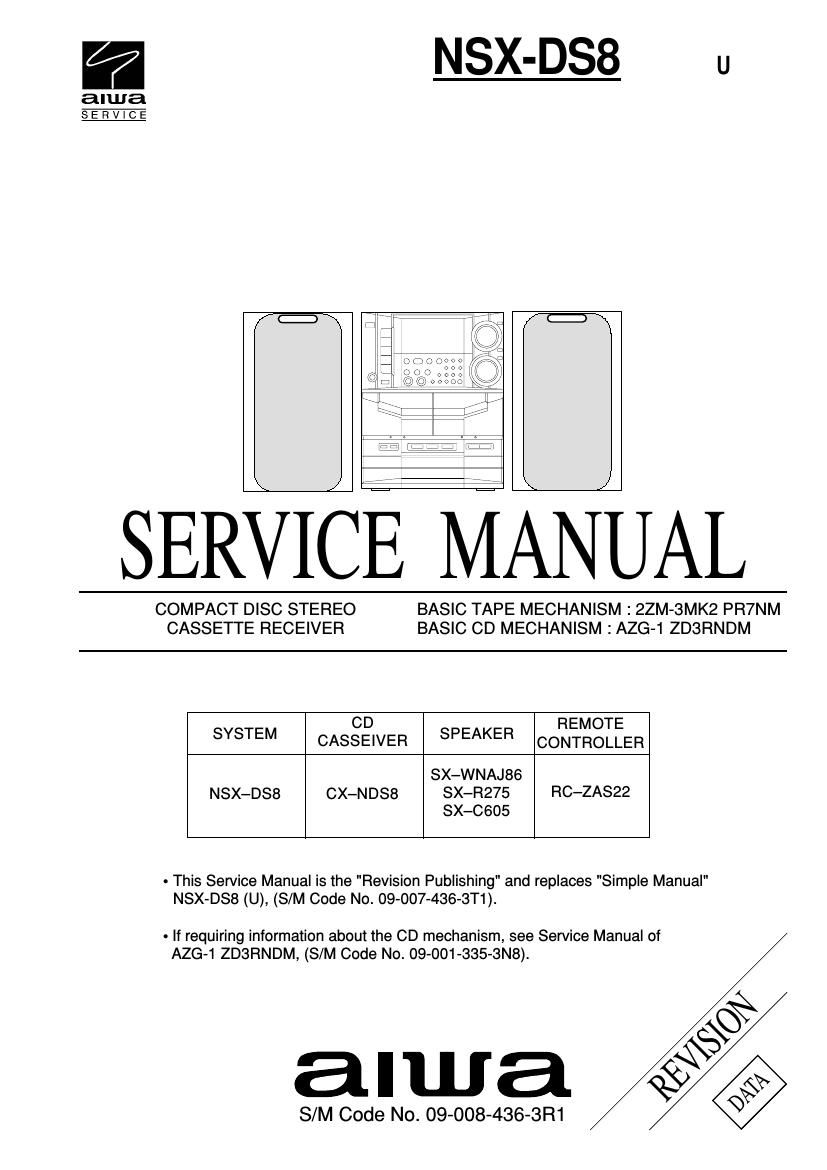

aiwa cx nds8

Extracted text from aiwa cx nds8 (Ocr-read)

Page 1

-“ 2 -“ Tuning range87.5 MHz to 108 MHz Usable sensitivity (IHF)13.2 dBf Antenna terminals75 ohms (unbalanced) Tuning range530 kHz to 1710 kHz (10 kHz step) 531 kHz to 1602 kHz (9 kHz step) Usable sensitivity350 ”V/m AntennaLoop antenna Mid-high frequency amplifier Front Power output30 W + 30 W (200 Hz - 20 kHz, T.H.D. less than 1 %, 8 ohms) Total harmonic distortion0.1 % (25 W, 1 kHz, 8 ohms, DIN AUDIO ) Low frequency amplifier Power output90 W + 90 W (50 Hz - 200 Hz, T.H.D. less than 1 %, 6 ohms) Total harmonic distortion0.1 % (75 W, 120 Hz, 6 ohms, DIN AUDIO) Rear (Surround) 33 W + 33 W (1 kHz, T.H.D. less than 1%, 8 ohms) Center 34 W (1 kHz, T.H.D. less than 1 %, 8 ohms) InputsVIDEO1/DVD/AUX: 316 mV (adjustable) VIDEO2/LD/MD: 316 mV (adjustable) MIC 1, MIC 2: 1 mV (10 kohms) DIGITAL IN: COAXIAL (VIDEO2) OPTICAL (VIDEO1) accept linear PCM signals (32 kHz, 44.1kHz and 48kHz) and Dolby Digital bit stream OutputsSPEAKER LOW FREQ: accept speakers of 6 ohms or more SPEAKER HIGH FREQ: accept speakers of 8 ohms or more SURROUND SPEAKERS: accept speakers of 8 ohms to 16 ohms CENTER SPEAKER: accept speakers of 8 ohms or more SUBWOOFER: 5 V LINE OUT: 210 mV PHONES (stereo jack): accepts headphones of 32 ohms or more Track format4 tracks, 2 channels stereo Frequency responseCrO 2 tape: 50 Hz -“ 16000 Hz NORMAL tape: 50 Hz -“ 15000 Hz Recording systemAC bias HeadsDeck 1: Playback head x 1 Deck 2: Recording/Playback head x 1, erase head x 1 SPECIFICATIONS LaserSemiconductor laser (λ =780 nm) D-A converter1 bit dual Signal-to-noise ratio85 dB (1 kHz, 0 dB) Harmonic distortion0.05 % (1 kHz, 0 dB) Wow and flutterUnmeasurable Power requirements120 V AC, 60 Hz Power consumption225 W Power consumption inIf the power-economizing mode is standby modeECO OFF: 42 W If the power-economizing mode is ECO ON or ECO AUTO: 0.9 W Dimensions (W x H x D)260 x 329 x 389.6 mm (10 1/4 X 13 X 15 3/8 in.) Weight12.5 kg (27 lbs. 9 oz.) Speaker system3 way, built-in subwoofer (magnetic shielded type) Speaker unitsSubwoofer: 200 mm (7 7/8 in.) cone type Full range: 120 mm (4 3/4 in.) cone type Super tweeter: 20 mm ( 13/16 in.) ceramic type Impedance6 ohms/8 ohms Sensitivity87 dB/W/m Dimensions (W x H x D)240 x 324 x 285 mm (9 1/2 X 12 7/8 X 11 1/4 in.) Weight6.0 kg (13 lbs 4 oz.) -ą Design and specifications are subject to change without notice. -ą Manufactured under license from Dolby Laboratories Licensing Corporation. -œDOLBY-, the double-D symbol and "PRO LOGIC" are trademarks of Dolby Laboratories Licensing Corporation. -ą The word "BBE"and the "BBE symbol" are trademarks of BBE Sound, Inc. Under license from BBE Sound,Inc.

Page 2

-“ 3 -“ CLASS 1 LASER PRODUCT KLASSE 1 LASER PRODUKT LUOKAN 1 LASER LAITE KLASS 1 LASER APPARAT This set employs laser. Therefore, be sure to follow carefully the instructions below when servicing. WARNING!! WHEN SERVICING, DO NOT APPROACH THE LASER EXIT WITH THE EYE TOO CLOSELY. IN CASE IT IS NECESSARY TO CONFIRM LASER BEAM EMISSION. BE SURE TO OBSERVE FROM A DISTANCE OF MORE THAN 30cm FROM THE SURFACE OF THE OBJEC- TIVE LENS ON THE OPTICAL PICK-UP BLOCK. sCaution: Invisible laser radiation when open and interlocks defeated avoid exposure to beam. sAdvarsel: Usynlig laserstĂ„ling ved Ă„bning, nĂ„r sikkerhedsafbrydere er ude af funktion. UndgĂ„ udsĂŠttelse for strĂ„ling. VAROITUS! Laiteen KĂ€yttĂ€minen muulla kuin tĂ€ssĂ€ kĂ€yttöohjeessa mainitulla tavalla saataa altistaa kĂ€yt-tĂ€jĂ€n turvallisuusluokan 1 ylittĂ€vĂ€lle nĂ€kymĂ€ttömĂ€lle lasersĂ€teilylle. VARNING! Om apparaten anvĂ€nds pĂ„ annat sĂ€tt Ă€n vad som specificeras i denna bruksanvising, kan anvĂ€ndaren utsĂ€ttas för osynling laserstrĂ„lning, som överskrider grĂ€nsen för laserklass 1. PROTECTION OF EYES FROM LASER BEAM DURING SERVICING CAUTION Use of controls or adjustments or performance of proce- dures other than those specified herin may result in hazardous radiation exposure. ATTENTION L-™utillisation de commandes, rĂ©glages ou procĂ©dures autres que ceux spĂ©cifiĂ©s peut entraĂźner une dangereuse exposition aux radiations. ADVARSEL Usynlig laserstĂ„ling ved Ă„bning, nĂ„r sikkerhedsafbrydereer ude af funktion. UndgĂ„ udsĂŠttelse for strĂ„ling. This Compact Disc player is classified as a CLASS 1 LASER product. The CLASS 1 LASER PRODUCT label is located on the rear exterior. Precaution to replace Optical block (KSS-213F) Body or clothes electrostatic potential could ruin laser diode in the optical block. Be sure ground body and workbench, and use care the clothes do not touch the diode. 1) After the connection, remove solder shown in right figure. PICK-UP Assy P.C.B Solder
