Aiwa cx nd77 cx nt76 nsx d77 nsx t76 nsx t77 mini combo

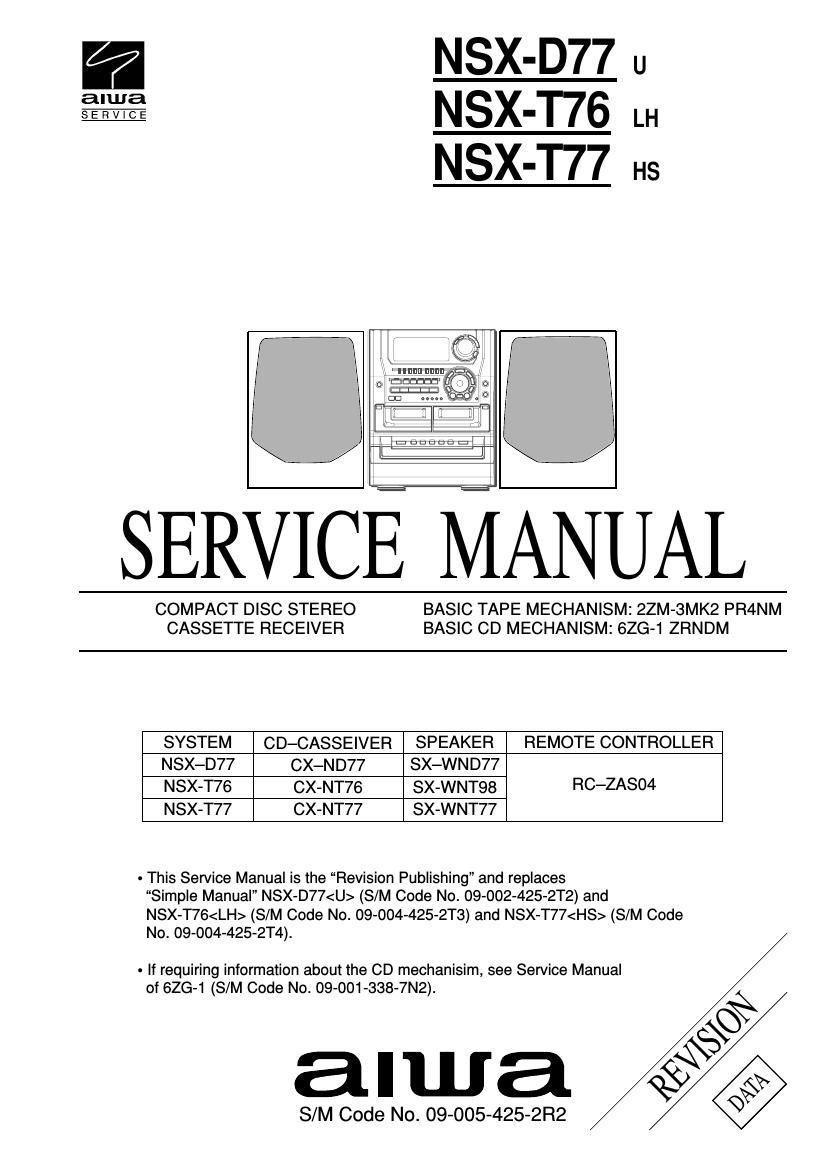

This is the 48 pages manual for aiwa cx nd77 cx nt76 nsx d77 nsx t76 nsx t77 mini combo.
Read or download the pdf for free. If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.

Page: 1 / 48
left right
aiwa cx nd77 cx nt76 nsx d77 nsx t76 nsx t77 mini combo

Extracted text from aiwa cx nd77 cx nt76 nsx d77 nsx t76 nsx t77 mini combo (Ocr-read)


Page 1

SPECIFICATIONS Tuning range87.5 MHz to 108 MHz Usable sensitivity(IHF)13.2 dBf Antenna terminals75 ohms (unbalanced) Tuning range531 kHz to 1602 kHz (9 kHz step) 530 kHz to 1710 kHz (10 kHz step) Usable sensitivity350 uV/m AntennaLoop antenna Mid-high frequency amplifier Power output*40 W + 40 W (200 Hz - 20 kHz, THD less than 1%, 8 ohms) Rated: 44 W + 44 W (8 ohms, THD 1%, 1 kHz) Reference: 55 W + 55 W (8 ohms, THD 10%, 1 kHz) Rated: 56 W + 56 W (8 ohms, THD 1%,1 kHz) Reference: 70 W + 70 W (8 ohms, THD 10%,1 kHz) Total harmonic distortion0.3% (26 W, 1 kHz, 8 ohms, DIN AUDIO) 0.3% (28 W, 1 kHz, 8 ohms, DIN AUDIO) Low frequency amplifier Power output*120 W + 120 W (50 Hz - 200 Hz, THD less than 1%, 6 ohms) Rated: 131 W + 131 W (6 ohms, THD 1%, 75 Hz) Reference: 165 W + 165 W (6 ohms, THD 10%,75 Hz) Rated: 167 W + 167 W (6 ohms, THD 1%, 75 Hz) Reference: 210 W + 210 W (6 ohms, THD 10%, 75 Hz) Total harmonic distortion0.3 % (65 W,75 Hz,6 ohms, DIN AUDIO) 0.3 % (84 W,75 Hz,6 ohms, DIN AUDIO) * without connecting to surround speakers InputsVIDEO/AUX: 300 mV (adjustable) MD: 300 mV (adjustable) MIC 1,MIC 2: 1 mV (10 kohms) OutputsLINE OUT: 150 mV SPEAKERS HIGH FREQ: accept speakers of 8 ohms or more SPEAKERS LOW FREQ: accept speakers of 6 ohms or more SURROUND SPEAKERS: accept speakers of 8 to 16 ohms PHONES (stereo jack): accepts headphones of 32 ohms or more Track format4 tracks, 2 channels stereo Frequency responseCrO2 tape: 50 Hz -“ 16000 Hz Normal tape: 50 Hz -“ 15000 Hz Signal-to-noise-ratio60dB (Dolby B NR ON, CrO2 tape peak level) Recording systemAC bias HeadsDeck 1: Playback head x 1 Deck 2: Recording/Playback head x 1, erase head x 1 LaserSemiconductor laser (λ =780 nm) D-A converter1 bit dual Signal-to-noise ratio83 dB (1 kHz, 0 dB) Harmonic distortion0.05 % (1 kHz, 0 dB) Wow and flutterUnmeasurable Cabinet type4 way, built-in subwoofer (magnetic shielded type) SpeakersSubwoofer: 200 mm ( 7 7/8 in.) cone type Woofer: 120 mm ( 4 3/4 in.) cone type Tweeter: 60 mm ( 2 3/8 in.) cone type Super Tweeter: 20 mm ( 13/16 in.) ceramic type Impedance6 ohms / 8 ohms Output sound pressure level87 dB/W/m Dimensions (W x H x D)260 x 383 x 326 mm (9 7/8 x 15 1/8 x 12 1/4 in. .) Weight7.5 kg (16 lbs 9 oz) Cabinet type4 way, built-in subwoofer SpeakersSubwoofer: 200 mm ( 7 7/8 in.) cone type Mid range: 100 mm ( 3 15/16 in.) cone type Tweeter: 60 mm ( 2 3/8 in.) cone type Super Tweeter: 20 mm ( 13/16 in.) ceramic type Impedance6 ohms / 8 ohms Output sound pressure level87 dB/W/m Dimensions (W x H x D)260 x 463 x 314 mm (10 1/4 x 18 1/4 x 12 3/8 in. .) Weight8.0 kg (17 lbs. 10 oz) Cabinet type4 way, built-in subwoofer (magnetic shielded type) SpeakersSubwoofer: 200 mm ( 7 7/8 in.) cone type Mid range: 100 mm ( 4 in.) cone type Tweeter: 60 mm ( 2 3/8 in.) cone type Super Tweeter: 20 mm ( 13/16 in.) ceramic type Impedance6 ohms / 8 ohms Output sound pressure level87 dB/W/m Dimensions (W x H x D)260 x 463 x 314 mm (10 1/4 x 18 x 12 3/8 in. .) Weight7.0 kg (15 lbs 7 oz) Power requirements120 V AC, 60 Hz, 220 V AC, 60 Hz AC 120 V/220-230 V/240 V, (switchable ) 50/60Hz Power consumption170 W, 245 W, 275 W Dimensions of main unit300 x 382.6 x 396.4mm (11 7/8 x 15 1/8 x 15 5/8in.) Weight of main unit13.2 kg (29 lbs 2 oz) 13.7 kg (30 lbs 3 oz) Standby power consumption If the power-economizing mode is OFF: 35 W, 36 W If the power-economizing mode is ON: 0.9 W -ą Design and specifications are subject to change without notice. -ą Dolby noise reduction manufactured under license from Dolby Laboratories Licensing Corporation. "DOLBY" and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation. -ą The word "BBE"and the "BBE symbol" are trademarks of BBE Sound, Inc. Under license from BBE Sound,Inc. - 2 -

Page 2

- 3 - CLASS 1 LASER PRODUCT KLASSE 1 LASER PRODUKT LUOKAN 1 LASER LAITE KLASS 1 LASER APPARAT This set employs laser. Therefore, be sure to follow carefully the instructions below when servicing. WARNING!! WHEN SERVICING, DO NOT APPROACH THE LASER EXIT WITH THE EYE TOO CLOSELY. IN CASE IT IS NECESSARY TO CONFIRM LASER BEAM EMISSION. BE SURE TO OBSERVE FROM A DISTANCE OF MORE THAN 30cm FROM THE SURFACE OF THE OBJEC- TIVE LENS ON THE OPTICAL PICK-UP BLOCK. sCaution: Invisible laser radiation when open and interlocks defeated avoid exposure to beam. sAdvarsel: Usynlig laserstĂ„ling ved Ă„bning, nĂ„r sikkerhedsafbrydere er ude af funktion. UndgĂ„ udsĂŠttelse for strĂ„ling. VAROITUS! Laiteen KĂ€yttĂ€minen muulla kuin tĂ€ssĂ€ kĂ€yttöohjeessa mainitulla tavalla saataa altistaa kĂ€yt-tĂ€jĂ€n turvallisuusluokan 1 ylittĂ€vĂ€lle nĂ€kymĂ€ttömĂ€lle lasersĂ€teilylle. VARNING! Om apparaten anvĂ€nds pĂ„ annat sĂ€tt Ă€n vad som specificeras i denna bruksanvising, kan anvĂ€ndaren utsĂ€ttas för osynling laserstrĂ„lning, som överskrider grĂ€nsen för laserklass 1. PROTECTION OF EYES FROM LASER BEAM DURING SERVICING CAUTION Use of controls or adjustments or performance of proce- dures other than those specified herin may result in hazardous radiation exposure. ATTENTION L-™utillisation de commandes, rĂ©glages ou procĂ©dures autres que ceux spĂ©cifiĂ©s peut entraĂźner une dangereuse exposition aux radiations. ADVARSEL Usynlig laserstĂ„ling ved Ă„bning, nĂ„r sikkerhedsafbrydereer ude af funktion. UndgĂ„ udsĂŠttelse for strĂ„ling. This Compact Disc player is classified as a CLASS 1 LASER product. The CLASS 1 LASER PRODUCT label is located on the rear exterior. Precaution to replace Optical block (KSS-213F) Body or clothes electrostatic potential could ruin laser diode in the optical block. Be sure ground body and workbench, and use care the clothes do not touch the diode. 1) After the connection, remove solder shown in right figure. PICK-UP Assy P.C.B Solder
