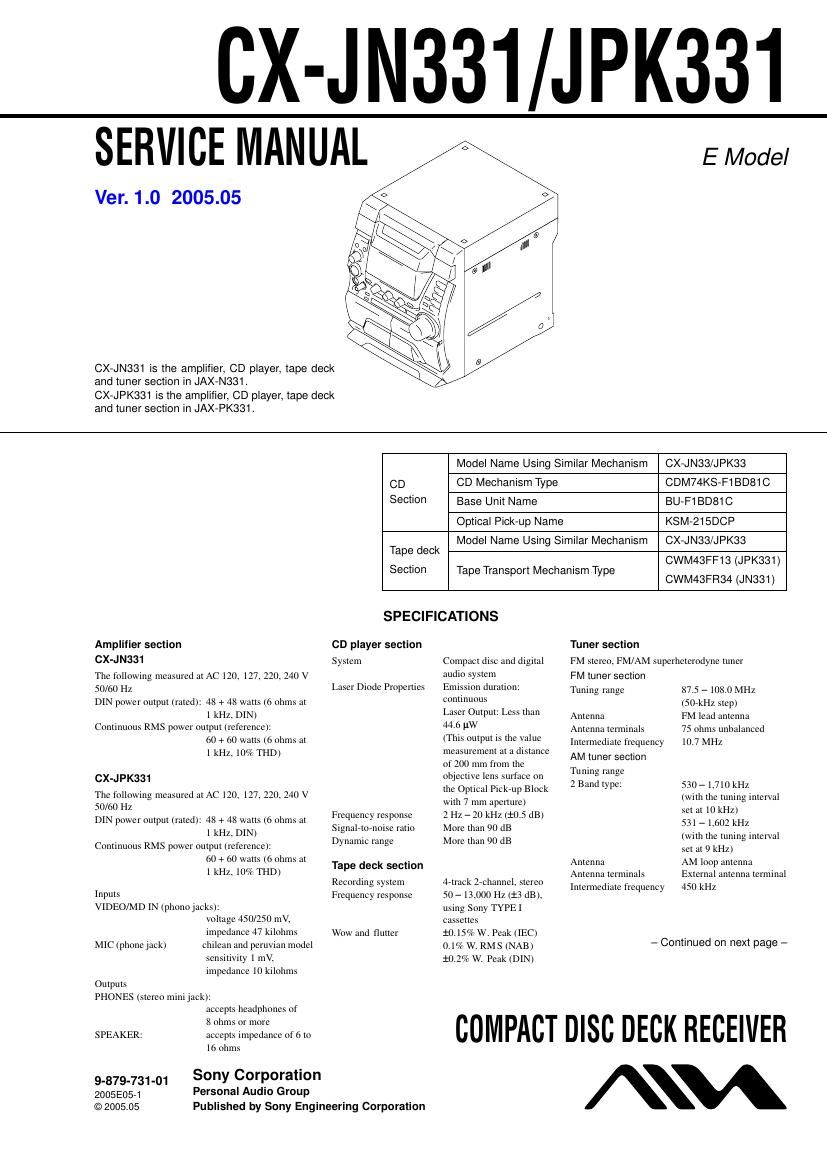

aiwa cx jn331 jpk331

Extracted text from aiwa cx jn331 jpk331 (Ocr-read)


Page 2

CX-JN331/JPK331

General

Power requirements

Mexican models: 127 V AC, (th Hz

Other models: 120 V. 22 0 V or
231% 240 V AC, 50/60 Hz
Adjustable with voltage
selector

Power Consumptlon 110 mm

Dimensions (w/h/dt incl. projecting parts and controls
Amp]tficr/Tuncr/Tapc/CD section:

Approx. 280 x 325 X

425 mm
Mass Approx 8.3 kg

Design turd spectt‘wations are suhicct to change
without notice

Notes on chip component replacement
0 Never reuse a disconnected chip component.
- Notice that the minus side of a tantalum capacitor may be
damaged by heat.

Flexible Circuit Board Repairing
- Keep the temperature of the soldering iron around 270 “C
during repairing.
- Do not touch the soldering iron on the same conductor of the
circuit board (within 3 times).
- Be careful not to apply force on the conductor when soldering
or unsoldering.

CAUTION

Use of controls or adjustments or performance of procedures
other than those specified herein may result in hazardous radiation
exposure.

This appliance is classified as a CLASS 1
LASER product.
This label is located on the rear exterior.

CLASS1 LASER PRODUCT

LUOKAN I LASERLAITE
KLASS l LASEHAPPARAT

SAFETY-RELATED COMPONENT WARNING !!

COMPONENTS IDENTIFIED BY MARK A OR DOTTED LINE
WITH MARK A ON THE SCHEMATIC DIAGRAMS AND IN
THE PARTS LIST ARE CRITICAL TO SAFE OPERATION.
REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE
PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR
IN SUPPLEMENTS PUBLISHED BY SONY.
