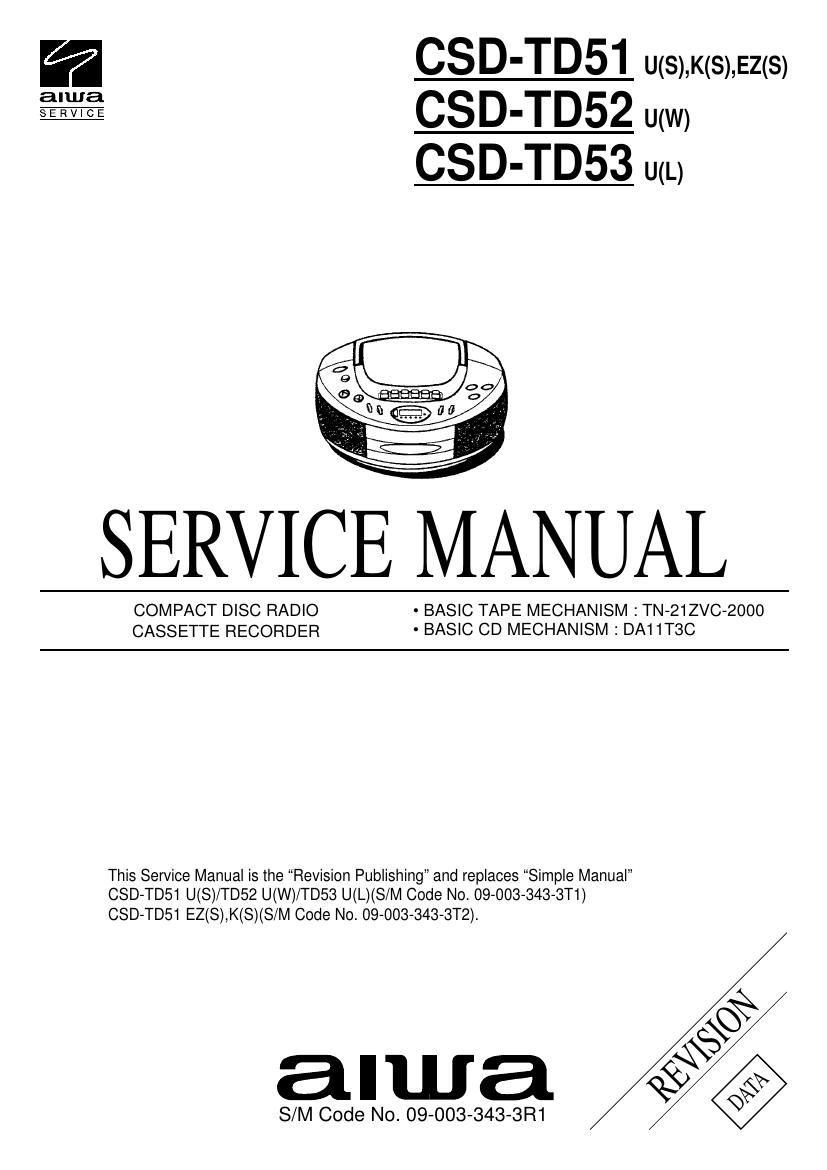

Aiwa CSD TD53 Service Manual

This is the 30 pages manual for Aiwa CSD TD53 Service Manual.
Read or download the pdf for free. If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.

Page: 1 / 30
left right
Aiwa CSD TD53 Service Manual

Extracted text from Aiwa CSD TD53 Service Manual (Ocr-read)


Page 1

2 SPECIFICATIONS ¥ Design and specifications are subject to change without notice . ¥ Design and specifications are subject to change without notice . U MODEL EZ MODEL K MODEL ¥ Design and specifications are subject to change without notice .

Page 2

3 PROTECTION OF EYES FROM LASER BEAM DURING SERVICING VAROITUS! Laiteen KŠyttŠminen muulla kuin tŠssŠ kŠyttšohjeessa mainit- ulla tavalla saattaa altistaa kŠyt-tŠjŠn turvallisuusluokan 1 ylit- tŠvŠlle nŠkymŠttšmŠlle lasersŠteilylle. VARNING! Om apparaten anvŠnds pŒ annat sŠtt Šn vad som specificeras i denna bruksanvising, kan anvŠndaren utsŠttas fšr osynling laserstrŒlning, som šverskrider grŠnsen fšr laserklass 1.Caution: Invisible laser radiation when open and interlocks defeated avoid expo- sure to beam. Advarsel: Usynling laserstŒling ved Œbning, nŒr sikkerhedsafbrydere er ude af funktion. UndgŒ uds¾ttelse for strŒling. CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. ATTENTION L'utilisation de commandes, rŽglages ou procŽdures autres que ceux spŽcifiŽs peut entra”ner une dangereuse exposition aux radiations. ADVARSEL! Usynlig laserstŒling ved Œbning, nŒr sikkerhedsafbrydereer ude af funktion. UndgŒ uds¾ttelse for strŒling. This Compact Disc player is classified as a CLASS 1 LASER product. The CLASS 1 LASER PRODUCT label is located on the rear exterior. This set employs laser. Therefore, be sure to follow carefully the instructions below when servicing. WARNING! WHEN SERVICING, DO NOT APPROACH THE LASER EXIT WITH THE EYE TOO CLOSELY. IN CASE IT IS NECESSARY TO CONFIRM LASER BEAM EMISSION. BE SURE TO OBSERVE FROM A DISTANCE OF MORE THAN 30cm FROM THE SURFACE OF THE OBJECTIVE LENS ON THE OPTICAL PICK-UP BLOCK. CLASS 1 KLASSE 1 LUOKAN 1 KLASS 1LASER PRODUCT LASER PRODUKT LASER LAITE LASER APPARAT Precaution to replace Optical block (SF-P101NR) 1) After the connection, remove solder shown in the right figure. Body or clothes electrostatic potential could ruin laser diode in the optical block. Be sure ground body and workbench, and use care the clothes do not touch the diode. Solder 1 16 TO/FROM CD C.B PICK UP ASSY SF-P101NR

Page 22

Pin No. Pin Name I/O Description 51-54 55 56 57 58 59 60 61 62 63 64-66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 S20- S23 O-CD LED O-TU LED O-TA LED O-ROCK LED O-POP LED O-JAZZ LED Ñ I-CD TEST I-TU TEST COM0-COM2 Ñ VSS2 VDD2 O-CD ON O-TU ON O-P.CONT___________________O-H.DUBB O-MUTE O-MO/ST O-BEAT CONT O-QSOUND O-COIN I-SQOUT O-CQCK Ñ O O O O O O Ñ Ñ Ñ O Ñ Ñ Ñ O O O O O O O O O I O Not connected. LED ON/OFF control output for CD functions. LED ON/OFF control output for TU functions. LED ON/OFF control output for TAPE functions. (Not Connected) LED ON/OFF control output for ROCK. LED ON/OFF control output for POP. LED ON/OFF control output for JAZZ. Not connected. Not connected. Not connected. LCD common output. Not connected. GND. Power supply for microcomputer (+5V). CD PWR control output. TU PWR control output. Power supply control output. Dubbing speed control output. Main mute output. FM mono/stereo output. BEAT switch over output. Q-Sound ON/OFF output. CD command output. CD sub-code Q input. CLK for CD commands/sub-codes. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37-40 41 42 43, 44 45-50 IC, LC867132V-5P07 Pin No. Pin Name I/O Description O-RMC/CE O-DATA O-CLK Ñ O-CLK SFT I-HOLD RST XT1 (IN) XT2 (OUT) VSS1 CF1 (IN) CF2 (OUT) VDD1 I-ST IND I-KEYO I-CD SW I-KEY1 I-MOTOR I-REC I-FM/AM I-TU DO O-BASS LED O-QS LED O-DUBB LED O-INT I-DRF I-WRQ I-REMO S0/PA0 S1/PA1 S2/PA2 S3/PA3 S4/PA4 S5/PA5 S6/PA6 S7/PA7 S8~S11 VDD3 VSS3 S12, S13 S14- S19 O O O Ñ O I I I O Ñ I O Ñ I I I I I I I I O O O O I I I O O O O O O O O O Ñ Ñ O O CD read/write control output and TU CE. Data output to M62495FP. Output CLK to tuner PLL.(Not connected) Not Connected. Clock shift output of the microcomputer. Hold status detection. Microcomputer reset. Connected to 32.768KHZ crystal oscillator. GND. Connected to 6MHZ Ceramic Filter. Power supply for microcomputer (+5V). FM STEREO status input. KEY AD input. CD DOOR SW status detection input. KEY AD input. DECK MECHA MOTOR status input. REC status input. FM, AM status input. (Not connected) Data input from tuner PLL.(Not connected) BASS LED ON/OFF control output. Q-Sound LED ON/OFF control output. LED control output used for high-speed dubbing. INT DIODE MATRIX detection output.(Not connected) CD RF level detection input. CD sub-code Q standby input. Remote control input. LCD segment output. LCD segment output. LCD segment output. LCD segment output. LCD segment output. LCD segment output. LCD segment output. LCD segment output. Power supply for microcomputer (+5V). GND. LCD segment output. LCD segment output. 34 33
