Aiwa CS DFD73 Service Manual

This is the 32 pages manual for Aiwa CS DFD73 Service Manual.
Read or download the pdf for free. If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.

Page: 1 / 32
left right
Aiwa CS DFD73 Service Manual

Extracted text from Aiwa CS DFD73 Service Manual (Ocr-read)

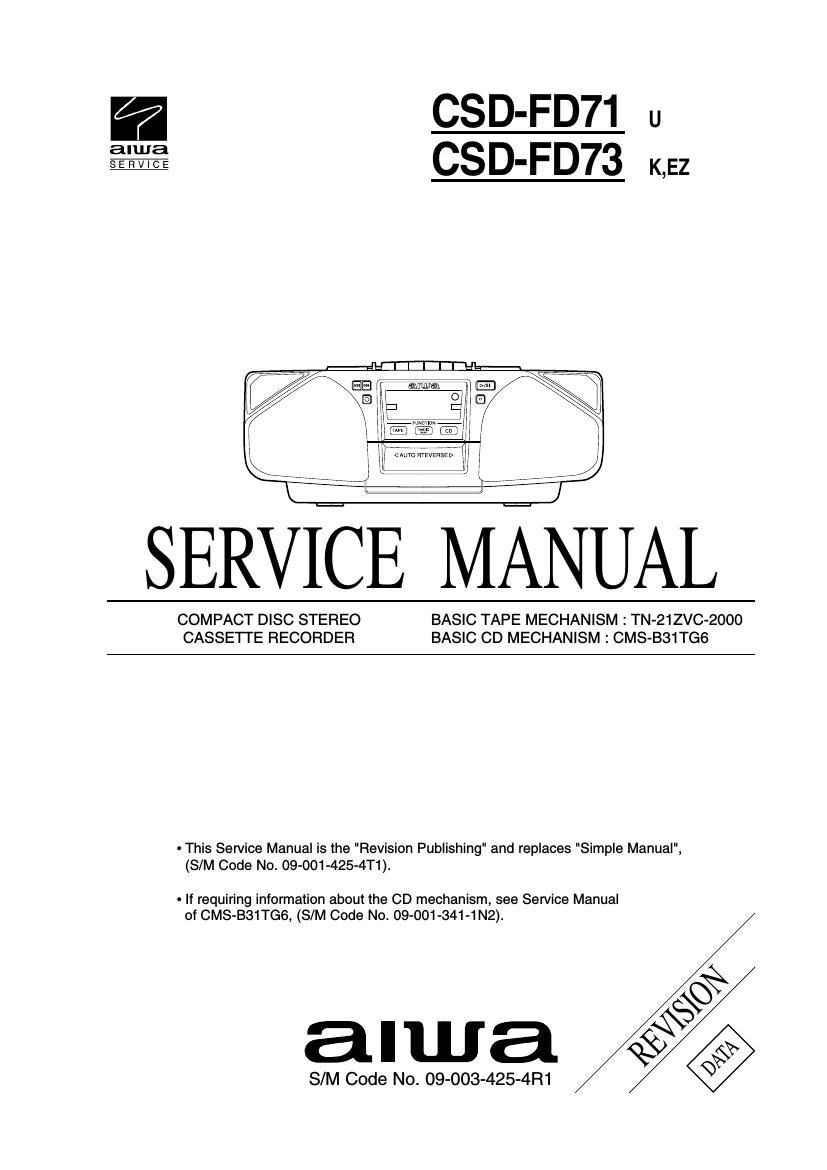

Page 1

Tuner sectionFrequency range FM :87.5 MHz - 108 MHz Antenna : Rod antenna AM :530 / 531 kHz - 1,710 / 1,602 kHz (10/9 kHz/step) Antenna : Ferrite bar antenna MW :531 / 530 kHz - 1,602 / 1,710 kHz (9 / 10 kHz / step) Antenna : Ferrite bar antenna LW :153 - 288 kHz Antenna : Ferrite bar antenna Deck sectionTrack format4 tracks, 2 channels Frequency rangeNormal tape : 50 Hz–12,500 Hz (EIAJ) Recording systemAC bias Erasing systemMagnet erase HeadsRecording / Playback head x 1 / Erasure head x 1 CD player sectionDiscCompact disc Scanning methoddNon-contact optical scanner (semiconductor laser) GeneralSpeaker100 mm cone type (2), 60 mm cone type (2) OutputHeadphones jack (stereo mini-jack) Power outputU : 2.5 W + 2.5 W (EIAJ 7 ohms DC) K, EZ : 5 W + 5 W (DIN MUSIC POWER) 4.5 W + 4.5 W (EIAJ 3.2 ohms, T.H.D. 10%) 3.3 W + 3.3 W (DIN 1% Rated Power) Power requirementsU : DC 12 V using eight R14 (size C) batteries, AC 120 V, 60 Hz K, EZ : DC 12 V using eight R14 (size C) batteries, AC 230 V, 50 Hz Power consumptionU : 12 W K, EZ : 22 W Dimensions (W x H x D)460 (W) x 191.9 (H) x 261.2 (D) mm (18 1/8 X 7 5/8 X 10 3/8 in.) Weight4 kg (8 lbs. 13 oz.) (excluding batteries) • Design and specifications are subject to change without notice. SPECIFICATIONS ACCESSORIES / PACKAGE LIST DESCRIPTION REF. NO. KANRI NO. PART NO. 1 8A-CH4-903-010 IB,U (ESF) B 1 8A-CH4-905-010 IB,K (E) B 1 8A-CH4-906-010 IB,EZ (9L) B 2 87-A80-109-010 AC CORD,HK7281 BLK U 2 87-A80-034-010 AC CORD SET ASSY,K W/F MAY-BG 2 87-A80-036-010 AC CORD SET ASSY,E W/FLTR V 3 87-A90-312-010 PLUG,CONVERSION WTN-1157R1 ! ! ! -2- !

Page 2

PROTECTION OF EYES FROM LASER BEAM DURING SERVICING VAROITUS! Laiteen Käyttäminen muulla kuin tässä käyttöohjeessa mainit- ulla tavalla saattaa altistaa käyt-täjän turvallisuusluokan 1 ylit- tävälle näkymättömälle lasersäteilylle. VARNING! Om apparaten används på annat sätt än vad som specificeras i denna bruksanvising, kan användaren utsättas för osynling laserstrålning, som överskrider gränsen för laserklass 1.Caution: Invisible laser radiation when open and interlocks defeated avoid expo- sure to beam. Advarsel: Usynling laserståling ved åbning, når sikkerhedsafbrydere er ude af funktion. Undgå udsættelse for stråling. CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. ATTENTION L'utilisation de commandes, réglages ou procédures autres que ceux spécifiés peut entraîner une dangereuse exposition aux radiations. ADVARSEL! Usynlig laserståling ved åbning, når sikkerhedsafbrydereer ude af funktion. Undgå udsættelse for stråling. This Compact Disc player is classified as a CLASS 1 LASER product. The CLASS 1 LASER PRODUCT label is located on the rear exterior. This set employs laser. Therefore, be sure to follow carefully the instructions below when servicing. WARNING! WHEN SERVICING, DO NOT APPROACH THE LASER EXIT WITH THE EYE TOO CLOSELY. IN CASE IT IS NECESSARY TO CONFIRM LASER BEAM EMISSION. BE SURE TO OBSERVE FROM A DISTANCE OF MORE THAN 30cm FROM THE SURFACE OF THE OBJECTIVE LENS ON THE OPTICAL PICK-UP BLOCK. CLASS 1 KLASSE 1 LUOKAN 1 KLASS 1LASER PRODUCT LASER PRODUKT LASER LAITE LASER APPARAT Precaution to replace Optical block 1) After the connection, remove solder shown in the right figure. Body or clothes electrostatic potential could ruin laser diode in the optical block. Be sure ground body and workbench, and use care the clothes do not touch the diode. PICK-UP ASSY. P.C.B Solder -3-

Page 27

MECHANICAL EXPLODED VIEW 1 / 1 -28- 35 34 33 32 31 P. C . B 1112 12 AA A A A36 393738 60 CMS-B31TG6 30 28 29 27B B 26 2540 15 16 A A A A A AH 4342 46 C C C C A A 47 48 49 7 50 F F F F F50 45 44 JI P. C . B P. C . B 41 6263 2223 21 16 1519 1820 24 H H P. C . BP. C . B P. C . B 61 98 7 5 1 4 23 6 10 135917 B 12 12135814 A A A 11 B53 53 5452 D DE 55 TN-21ZVC-2000A A G57 56A A 51
