Aiwa CS DEL55 Service Manual

Extracted text from Aiwa CS DEL55 Service Manual (Ocr-read)


Page 1

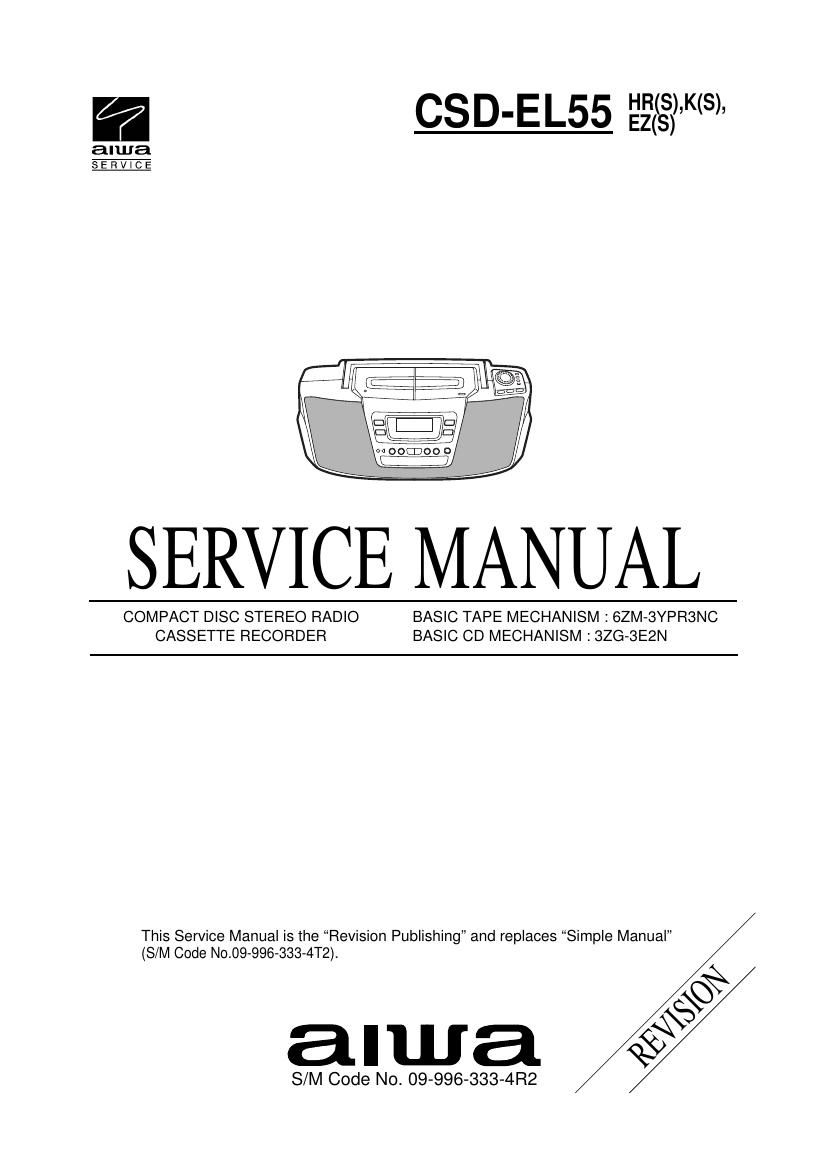

csn- EL5 Km

SERVICE MANUAL

COMPACT DISC STEREO RADIO BASIC TAPE MECHANISM :62M-3YPR3NC
CASSETTE RECORDER BASIC CD MECHANISM :SZG-3E2N

This Service Manual is the -Revision Publishing" and replaces -Simple Manual"
(S/M Code No.09-996-333-4T2).

alwa

S/M Code No. 09-996-333-4R2

Page 2

SPECIFICATIONS

FM Tuner Section

Tuning range 87.5 MHZ to 108 MHz
Antenna Rod antenna

AM (MW) Tuner Section

Tuning range 531 kHz to 1602 kHz (9 kHz step)
530 kHz to 1710 kHz (10 kHz step)

Antenna Ferrite bar antenna

AM (LW) Tuner Section [EZ, K Model]
Tuning range 153 kHz to 288 kHz
Antenna Ferrite bar antenna


Track format 4 track, 2 channels stereo
Frequency response Normal tape: 50 Hz , 12500 Hz
Recording system AC bias
Heads Deck 1: Playback head x 1
Deck 2: Recording/Playback head x 1
Erasure head x 1

Laser Semiconductor laser (A = 780 nm)
DrA converter 1 bit dual

Speakers 100 mm cone type

Output PHONES (stereo miniiack)

Dimensions of main unit (W x H x D)
510x 181 x244 mm

Weight oi main unit 4.6 kg (not including batteries)

ACCESSORIES LIST

[HR Model]
Power output 2.5 W + 2.5 W (10% T.H.D. (79 DC)
2.0 W + 2.0 W (DIN 1% Rated Power)
DC 12 V using eight size C (R14)
batteries

110 , 120 V/220 , 240 V AC,
switchable, 50/60 Hz

Power consumption 18 W

Power requirements

[EZ Model]
Power output 5 W + 5 W (DIN MUSIC POWER)

4.5 W + 4.5 W (10% T.H.D. /3.2 Q DC)
3.3 W + 3.3 W (DIN 1% Rated Power)
DC 12 V using eight size C (R14)
batteries

230 V AC, 50Hz

Power consumption 22 W

Power requirements

[K Model]
Power output 4.5 W + 4.5 W (10% T.H.D. /3.2§2 DC)
3.3 W + 3.3 W (DIN 1% Rated Power)
DC 12 V using eight size C (R14)
batteries

230 V AC, 50Hz

Power consumption 22 W

Power requirements

. Design and specifications are subject to change without notice.

DESCRIPTION'G-IiIJIfiTfiflwfiImi "REFERENCE NAME LISTw EZSIIQ LT < 7-55 Me
If can't understand for Description please kindly refer to "REFERENCE NAME LIST-.

REF NO PART NO. KANRI DESCRIPTION
NO.

EZ-CH1-907-010 IB,H(ECA)FM



HZ-CH1-9OS-010 IBlEZ(9L)FM
8Z-CI-I1-909-010 IBlKIEIFI-kK)
HZ-CK4-962-010 RC UNIT,RC-ZAT04 (VS)
87-050-076-010 AC CORD SET ASSY,E

DNHHH

B

87-099-726-010 PLUG,ADPTR CONV(K)
87-099-789-010 PLUG,ADPTR IR44


BB
