Aiwa CS DED20 Owners Manual

Extracted text from Aiwa CS DED20 Owners Manual (Ocr-read)

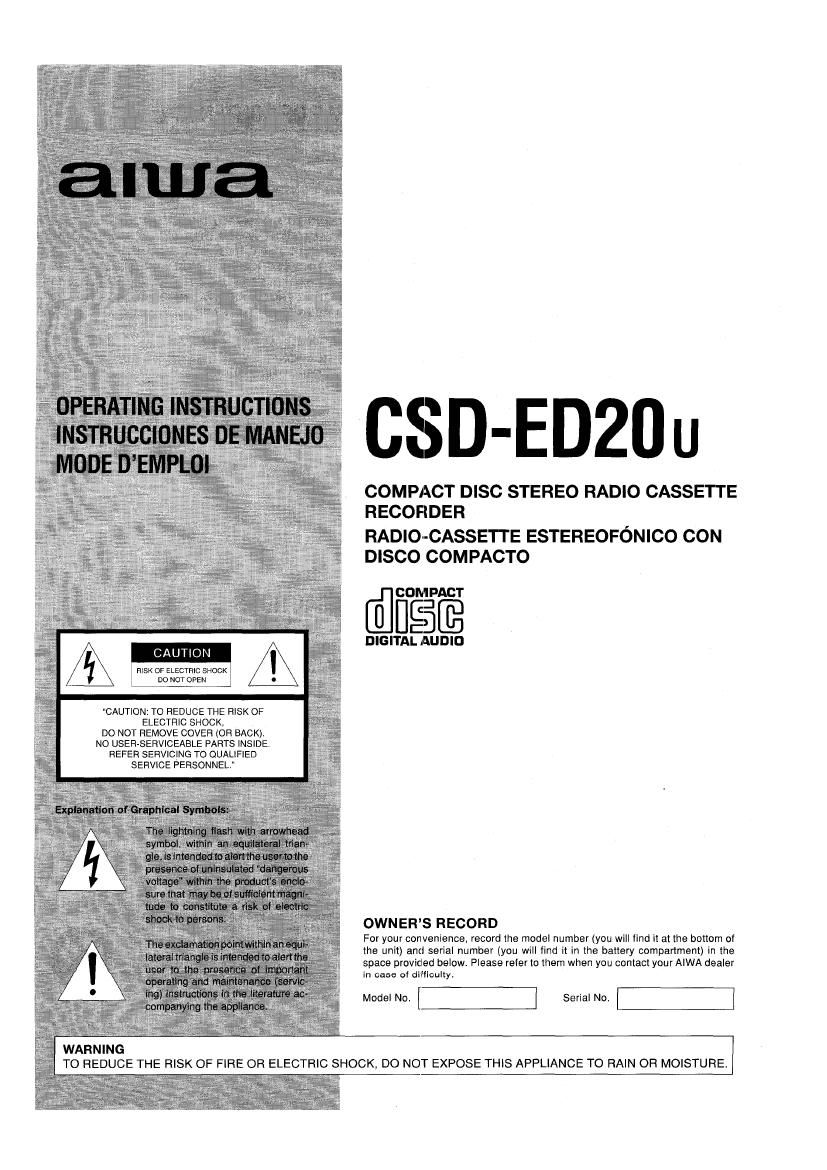

Page 1

CISD-EDZOU

COMPACT DISC STEREO RADIO CASSETTE
RECOFIDER

RADIO-CASSETTE ESTEREOFONICO CON
DISCO COMPACTO

[filfiifi-fi

DIGITAL AUDIO

CAUTION

HISK 0F ELECTRIC SHOCK
DO NOT OPEN

-CAUTION: TO REDUCE THE RISK OF
ELECTRIC SHOCKv
DO NOT REMOVE COVER (0R BACK).
N0 USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL."

OWNER-S RECORD

For your convenience. record the model number (you will flnd it at the bottom of
the unit) and serial number (you will find it in the battery compartment) in the
space provided below Please refer to them when you contact your AIWA dealer
in case or difficulty.

Page 2

NOTE
FOR USE IN THE U.S.A.

This equipment has been tested and found to comply with the

limits for a Class B digital device, pursuant to Pan 15 of the

FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential instal-

lation.

This equipment generates, uses, and can radiate radio fre-

quency energy and, it not installed and used in accordance

with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interfer-

ence will not occur in a particular installation. If this equipment

does cause harmful interference to radio or television recep-

tion, which can be determined byturning the equipment off and

on, the user is encouraged to try to correct the interference by

one or more of the following measures:

Reorient or relocate the receiving antenna.

,. Increase the separation between the equipment and re-
oeiver.

.. Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.

.. Consult the dealer or an experienced radio/TV technician
for help.

CAUTION

Modifications or adjustments to this product, which are not
expressly approved by the manufacturer, may void the user's
right or authority to operate this product.

TABLE OF CONTENTS

PRECAUTIONS ....................................................................... 2
POWER SUPPLY
REMOTE CONTROL

LISTENING TO A COMPACT DISC.
PROGRAMMED PLAY OF A DISC ..
LISTENING TO THE RADIO .
PRESETTING STATIONS .....
PLAYING BACK A TAPE ................
RECORDING FROM A COMPACT DISC.
RECORDING FROM THE RADIO ..........

MAINTENANCE .................................................................... 24
SPECIFICATIONS ................................................................ 26
TROUBLESHOOTING GUIDE ............................................ 26

Please check the laws on copyright relating to recordings from discs.
radio or external tape for the country in which the unit is being used.

PRECAUTIONS

Read the Operating Instructions carefully and completely before oper-
ating the unit. Be sure to keep the Operating Instructions for future
reference. All warnings and cautions in the Operating Instructions and
on the unit should be strictly followed, as well as the safety suggestions
below.

Installation

1 Water and moisture - Do not use this unit near water, such as
near a bathtub, washbowl, swimming pool, or the like.

2 Heat - Do not use this unit near sources of heat, including heating
vents, stoves, or other appliances that generate heat. It also should
not be placed in temperatures less than 5°C (41°F) or greater than
35°C (95°F).

3 Mounting surface - Place the unit on a flat. even surface.

4 Ventilation - The unit should be situated with adequate space
around it so that proper heat ventilation is assured. Allow to cm (4
in.) clearance from the unit.

- Do not place the unit on a bed, rug, or similar surface that may
block the ventilation openings. -

- Do not install the unit in a bookcase, cabinet, or airtight rack
where ventilation may be impeded,

5 Objects and liquid entry - Take care that objects or liquids do not
get Inside the unit through the ventilation openings.

6 Carts and stands-When placed or mounted on
a stand or cart, the unit should be moved with
care.

Quick stops, excessive force, and uneven sur~
faces may cause the unit or cartto overturn orfall.

Page 16

16

VII PLAV/FAUSE/
PRESET

get

RADIO
TAPE . C I CD

FUNCTION

u

STOP/
MEMORV

PRESEITING STATIONS

You can preset up to 15 stations in each band.

1

Select a station. (See page 14.)

2 Keep the I STOP/MEMORY button pressed until -M" is

displayed to store the station.

A station is assigned to a preset number, beginning from 1 in
consecutive order for each band.

@ Preset number
® Frequency

Repeat steps 1 and 2.

The next station will not be stored if a total of 1 5 preset stations have
already been stored for a bend.

To listen to preset stations

..

Press the BAND button to select a band.

Press the b" PLAY/PAUSE/PRESET button repeatedly to select
a preset number.

When operating with the remote oontrol, press the numbered
buttons.

Refer to -To select a track directly- on page 10 for using the
numbered buttons.

To clear a preset station

Select the preset number of the station to be cleared. Then, press the
I STOP/MEMORY button while pressing the DI! PLAY/PAUSE/
PRESET button.

The preset numbers of all other stations in the band with higher
numbers are also decreased by one.
