Aiwa CS DA100 Service Manual 2

This is the 28 pages manual for Aiwa CS DA100 Service Manual 2.
Read or download the pdf for free. If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.

Page: 1 / 28
left right

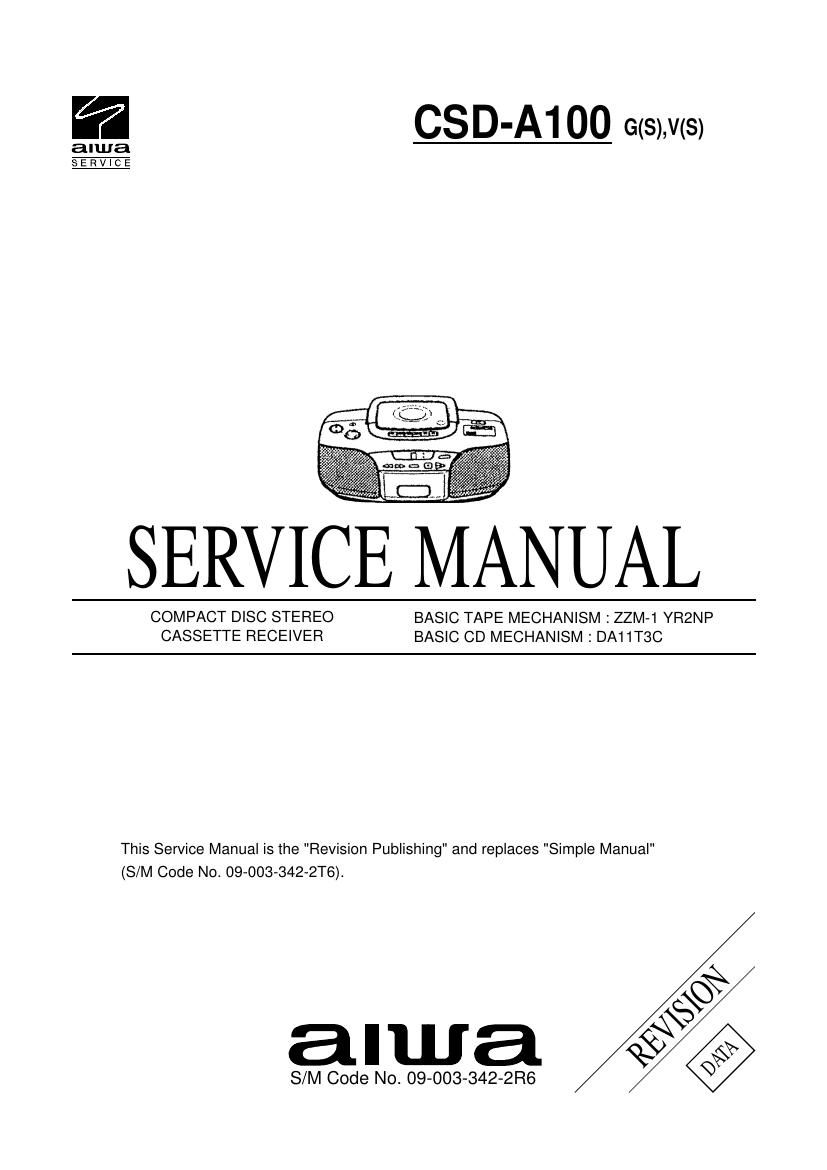

Aiwa CS DA100 Service Manual 2

Extracted text from Aiwa CS DA100 Service Manual 2 (Ocr-read)


Page 1

2 SPECIFICATIONS GSC MODEL VSC MODEL REF. NO PART NO. KANRI DESCRIPTION NO. ACCESSORIES/PACKAGE LIST 1 8A-CDA-904-010 IB,G(E)FM 1 8A-CDA-907-010 IB,V(ER)FM ! 2 87-050-076-010 AC CORD SET ASSY,E! 2 87-A80-144-010 AC CORD SET ASSY,G BLK -Ę Design and specifications are subject to change without notice . Design and specifications are subject to change without notice .

Page 2

3 PROTECTION OF EYES FROM LASER BEAM DURING SERVICING VAROITUS! Laiteen K√§ytt√§minen muulla kuin t√§ss√§ k√§ytt√∂ohjeessa m\ ainit ulla tavalla saattaa altistaa k√§yt t√§j√§n turvallisuusluokan 1 ylit t√§v√§lle n√§kym√§tt√∂m√§lle lasers√§teilylle. VARNING! Om apparaten anv√§nds p√• annat s√§tt √§n vad som specificeras i\ denna bruksanvising, kan anv√§ndaren uts√§ttas f√∂r osynling laserstr√•lning, som √∂verskrider gr√§nsen f√∂r laserklass 1.Caution: Invisible laser radiation when open and interlocks defeated avoid expo sure to beam. Advarsel: Usynling laserst√•ling ved √•bning, n√•r sikkerhedsafbrydere er ude af funktion. Undg√• uds√¶ttelse for str√•ling. CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. ATTENTION L'utilisation de commandes, r√©glages ou proc√©dures autres que ceux sp√©cifi√©s peut entra√ģner une dangereuse exposition aux radiations. ADVARSEL! Usynlig laserst√•ling ved √•bning, n√•r sikkerhedsafbrydereer ude af funktion. Undg√• uds√¶ttelse for str√•ling. This Compact Disc player is classified as a CLASS 1 LASER product. The CLASS 1 LASER PRODUCT label is located on the rear exterior. This set employs laser. Therefore, be sure to follow carefully the instructions below when servicing. WARNING! WHEN SERVICING, DO NOT APPROACH THE LASER EXIT WITH THE EYE TOO CLOSELY. IN CASE IT IS NECESSARY TO CONFIRM LASER BEAM EMISSION. BE SURE TO OBSERVE FROM A DISTANCE OF MORE THAN 30cm FROM THE SURFACE OF THE OBJECTIVE LENS ON THE OPTICAL PICK UP BLOCK. CLASS 1 KLASSE 1 LUOKAN 1 KLASS 1 LASER PRODUCT LASER PRODUKT LASER LAITE LASER APPARAT Precaution to replace Optical block (SF-P101NR) 1) After the connection, remove solder shown in the right figure. Body or clothes electrostatic potential could ruin laser diode in the optical block. Be sure ground body and workbench, and use care the clothes do not touch the diode. Solder 1 16 TO/FROM CD C.B PICK UP ASSYSF-P101NR
