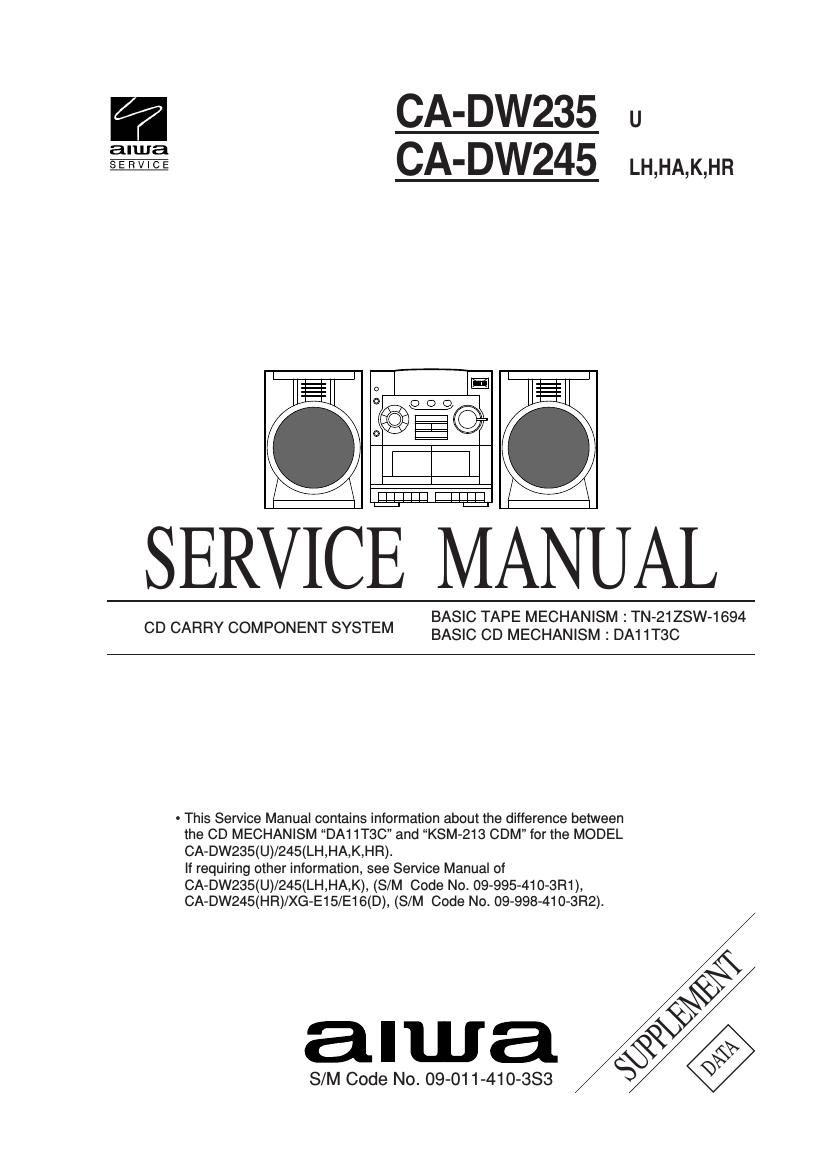

Aiwa CA DW235 Service Manual Supp

Extracted text from Aiwa CA DW235 Service Manual Supp (Ocr-read)


Page 1

-ď 2 -ď CLASS 1 LASER PRODUCT KLASSE 1 LASER PRODUKT LUOKAN 1 LASER LAITE KLASS 1 LASER APPARAT This set employs laser. Therefore, be sure to follow carefully the instructions below when servicing. WARNING!! WHEN SERVICING, DO NOT APPROACH THE LASER EXIT WITH THE EYE TOO CLOSELY. IN CASE IT IS NECESSARY TO CONFIRM LASER BEAM EMISSION. BE SURE TO OBSERVE FROM A DISTANCE OF MORE THAN 30cm FROM THE SURFACE OF THE OBJEC TIVE LENS ON THE OPTICAL PICK UP BLOCK. sCaution: Invisible laser radiation when open and interlocks defeated avoid exposure to beam. s Advarsel: Usynlig laserst√•ling ved √•bning, n√•r sikkerhedsafbrydere er ude af funktion. Undg√• uds√¶ttelse for str√•ling. VAROITUS! Laiteen K√§ytt√§minen muulla kuin t√§ss√§ k√§ytt√∂ohjeessa mainitulla tavalla saataa altistaa k√§yt t√§j√§n turvallisuusluokan 1 ylitt√§v√§lle n√§kym√§tt√∂m√§lle lasers√§teilylle. VARNING! Om apparaten anv√§nds p√• annat s√§tt √§n vad som specificeras i denna bruksanvising, kan anv√§ndaren uts√§ttas f√∂r osynling laserstr√•lning, som √∂verskrider gr√§nsen f√∂r laserklass 1. PROTECTION OF EYES FROM LASER BEAM DURING SERVICING CAUTIONUse of controls or adjustments or performance of proce dures other than those specified herin may result in hazardous radiation exposure. ATTENTION L-ôutillisation de commandes, r√©glages ou proc√©dures autres que ceux sp√©cifi√©s peut entra√ģner une dangereuse exposition aux radiations. ADVARSEL Usynlig laserst√•ling ved √•bning, n√•r sikkerhedsafbrydereer ude af funktion. Undg√• uds√¶ttelse for str√•ling. This Compact Disc player is classified as a CLASS 1 LASER product. The CLASS 1 LASER PRODUCT label is located on the rear exterior. Precaution to replace Optical block (SF-P101NR) Body or clothes electrostatic potential could ruin laser diode in the optical block. Be sure ground body and workbench, and use care the clothes do not touch the diode. 1) After the connection, remove solder shown in right figure. Solder CD PICK-UP ASSY. PWB

Page 2

-ď 3 -ď ELECTRICAL MAIN PARTS LIST KANRI NO. REF. NO. DESCRIPTIONPART NO. CD MOTOR C.B M1 S0-M10-A09-700 MOTOR SLED ASSY PIN3 S2-369-750-000 PLUG,6P SW1 S4-S13-A01-600 SW,LEAF REF NO.CD MECHANISIM KSM-213CDM DA11T3C C422 C423 C424 C439 R412 R413 R420 R431 R432 R434 R445 R447 R448 2700P 0.068M 0.018M NO MOUNT 68K 39K 47K 560K 560K JUMPER 3.9K 10K 56K 3300P 0.047M 0.22M 1000P 220K 15K 15K 270K 270K 47K 18K 15K NO MOUNT KANRI NO. REF. NO. DESCRIPTIONPART NO. MECHANICAL PARTS LIST 1 / 1 66 87-A91-369-010 SW,AC SL 2 2 2 SDKGA41700<*EXP U,K> ADD 8Z-CT9-064-010 PANEL,CD SANYO ADD 8Z-CT6-214-010 RING,CHUCK ADD 86-CT9-217-010 HLDR,CHUCK A (S) ADD 87-651-075-210 VT1+2.6-10 ADD 87-751-094-410 VT2+3-6 W/O SLOT ADD 87-751-095-410 VT2+3-8 W/O SLOT ADD 87-721-095-410 QT2+3-8 W/O SLOT ADD 87-751-097-410 VT2+3-12 W/O SLOT ADD 87-651-100-410 VT1+3-16 ADD 87-651-104-410 VT1+3-30 ADD 87-571-033-410 VIT+2-4 ADD 87-261-072-410 V+2.6-5 * NOTE : = COLOR NAME TABLEBasic color symbol Color Basic color symbol Color Basic color symbol Color B Black C Cream D Orange G Green H Gray L Blue LT Transparent Blue N Gold P Pink R Red S Silver ST Titan Silver T Brown V Violet W White WT Transparent White Y Yellow YT Transparent Yellow LM Metallic Blue LL Light Blue GT Transparent Green LD Dark Blue DT Transparent Orange GM Metallic Green YM Metallic Yellow DM Metallic Orange PT Transparent Pink LA Aqua Blue GL Light Green !
