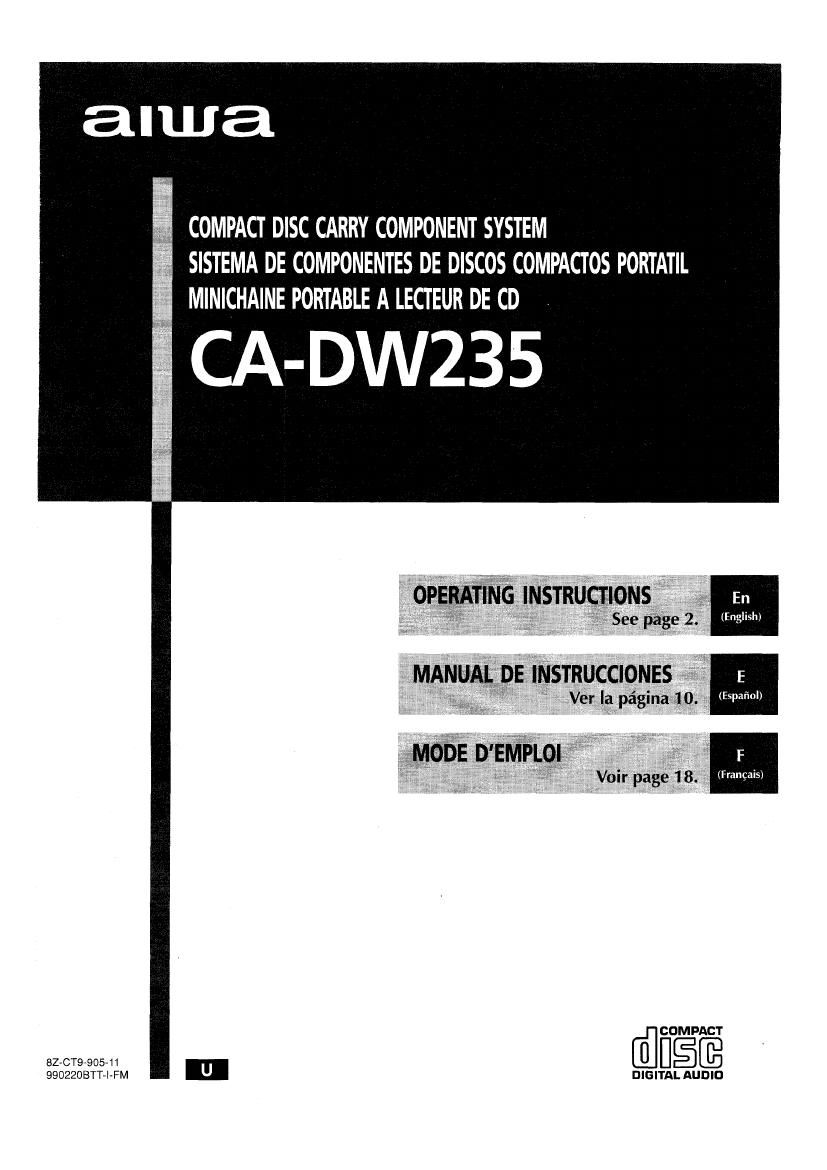

Page 1

COMPACT DISC CARRY COMPONENT SYSTEM
SISTEMA DE COMPONENTES DE DISCOS COMPACTOS PORTATIL
MINICHAINE PORTABLE A LECT EUR DE CD

CA-DW235

COMPACT

u @153

99022OBTT-T~FM DIGITAL AUDIO

Page 2

WARNING

TO REDUCE THE RISK OF FIRE OR
ELECTRIC SHOCK, DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR MOISTURE.

RISK OF ELECTRIC SHOCK -
D0 Nor OPEN

-CAUTION: TO REDUCE THE RISK OF
ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING T0 QUALIFIED
SERVICE PERSONNEL.-

Explanation of Graphical Symbols:

The lightning flash with arrowhead symbol, within
an equilateral triangle, is intendedto alertthe user
to the presence of uninsulated -dangerous volt-
age- within the product's enclosure that may be of
sufficient magnitude to constitute a risk of electric

shock to persons.

The exclamation point within an equilateral trian-
gle is intended to alert the userto the presence of
important operating and maintenance (servicing)
instructions in the literature accompanying the

appliance.

OWNER-S RECORD

For your convenience, record the model number (you will find it at the
bottom of the unit) and serial number (you will find It in the battery
compartment) in the space provided below. Please referto them when

you contact your AIWA dealer in case of ditliculty.

Precautions

Read the Operating Instructions carefully and completely
before operating the unit. Be sure to keep the Operating

Instructions for future reference. All warnings and cautions in

the Operating Instructions and on the unit should be strictly
followed, as well as the safety suggestions below.

Installation

1 Water and moisture - Do not use this unit near water,
such as near a bathtub, washbowl, kitchen sink, laundry
tub, in a wet basement, swimming pool, or the like.

2 Heat - Do not use this unit near sources of heat, including

heating vents, stoves, or other appliances that generate
heat.

It also should not be placed in temperatures less than 5°C

(41°F) or greater than 35°C (95°F).

3 Mounting surface - Place the unit on a flat, even surface.

4 Ventilation - The unit should be situated with adequate
space around it so that proper heat ventilation is assured.
Allow 10 cm (4 in.) clearance from the rear and the top of
the unit and 5 cm (2 in.) from each side.

- Do not place the unit on a bed, rug, or similar surface
that may block the ventilation openings.

- Do not install the unit in a bookcase, cabinet, or airtight
rack where ventilation may be impeded.

2 ENGLISH

Obiecls and liquid entry - Take care that objects or
liquids do not get inside the unit through the ventilation
openings.

Carts and stands - When placed or

mounted on a stand or cart, the unit should

be moved with care.

Quick stops, excessive force. and uneven

surfaces may cause the unit or canto

overturn or fall.

Condensation - Moisture may form on the CD pickup
lens when:

- The unit ls moved from a cold spot to a warm spot

- The heating system has just been turned on

- The unit is used in a very humid room

- The unit is cooled by an air conditioner

When this unit has condensation inside, it may not
function normally. Should this occur, leave the unit for a
few hours, then try to operate again.

Wall or ceiling mounting - The unit should not be
mounted on a wallor ceiling, unless specified in the
Operating Instructions.

Electric Power

1

Power sources - Use on batteries or AC house current,
as specified in the Operating Instructions and marked on
the unit.

Polarization - As a safety feature, some units are

equipped with polarized AC power plugs which can only

be Inserted one way into a power outlet. If it is difficult or
impossible to insert the AC power plug into an outlet, turn
the plug over and try again. If it still does not easily insert
into the outlet, please call a qualified service technician to
service or replace the outlet. To avoid defeating the

safety feature of the polarized plug, do not force it into a

power outlet.

Ac power cord

- When disconnecting the AC power cord, pull it out by
the AC power plug. Do not pull the cord itself.

- Never handle the AC power plug with wet hands, as this
could result in fire or shock.

- Power cords should be firmly secured to avoid being
bent, pinched, or walked upon. Pay particular attention
to the cord from the unit to the power socket.

- Avoid overloading AC power plugs and extension cords
beyond their capacity, as this could result in fire or
shock.

Extension cord - To help prevent electric shock, do not

use a polarized AC power plug with an extension cord,

receptacle, or other outlet unless the polarized plug can
be completely inserted to prevent exposure of the blades
of the plug.

When not in use - Unplug the AC power cord from the

AC outlet or remove all the batteries if the unit will not be

used for several months or more. When the cord is

plugged in, a small amount of current continues to flow to
the unit, even when the power is turned off.

Maintenance

Clean the unit only as recommended in the Operating
Instructions.

Damage Requiring Service
Have the units serviced by a qualified service technician if:

The AC power cord or plug has been damaged
Foreign objects or liquid have got inside the unit
The unit has been exposed to rain or water

The unit does not seem to operate normally

The unit exhibits a marked change in perlormance
The unit has been dropped, or the cabinet has been
damaged
0 NOT A PT T

RVI E E NITYO R ELF.

Page 4

POWER/
(9 STANDBY

FlEPEAT/
FM MODE/OSC

STOP/ MEMORY

n on OPERATION

1 Press CD.
The power is turned on and the CD button lights up.
2 Press PUSH OPEN to open the disc
compartment. Place a disc with the printed
side up and close the disc compartment.

p PUSH OPEN

Total number of tracks and total playing time are
displayed

3 Press >/ll PLAY/PAUSE to start play.
The number of the track being played and elapsed
playing time are displayed.

I STOP/MEMORY - Stops play.

>/II PLAY/PAUSE - Pauses play. To resume play, press
again.

I44.>>| SKIP/SEARCH - Searches for a particular point
during playback, Keep I44 or >>I pressed and then
release it.

- Skips to the beginning of a track. Press I44 or >>I
repeatedly.

REPEAT/FM MODE/08C
- Repeats a single track or all tracks. Select as follows.
C 1: A single track is played repeatedly.

Select a track with I44 or >>l.
(I: All tracks are played repeatedly.

To start play when the power is off, press CD. The
power is turned on and play of the loaded disc begins
(Direct Play Function).

If you load a disc while the CD button flashes in step 2,
play starts without pressing >/II.

After listening, press POWER/d) STANDBY to turn the
power otl.

NOTE

- Do not use irregular shape CDs (example: heart-shaped,
octagonal ones).
It may result in malfunctions.

- Do not place more than one disc in the disc
compartment.

0 Do not try to open the disc compartment during play.

- Do not touch the lens. Doing so may cause malfunctions.

4 ENGLISH

Up to 30 tracks can be programmed from the disc.

1 In stop mode, keep I STOP/MEMORY pressed
untll "M- flashes In the display.

2 Press I44 or >>l to select a track, then press
I STOP/MEMORY to store it.

Track number

Program med number

3 Repeat step 2 to program other tracks.
4 Press >/II to start play.

To check the program. press I44 or >>I in stop mode.
To clear the program, press I once In stop mode so that
-M" disappears in the display.

To change the programmed tracks, clear the program and
repeat all the steps again.
