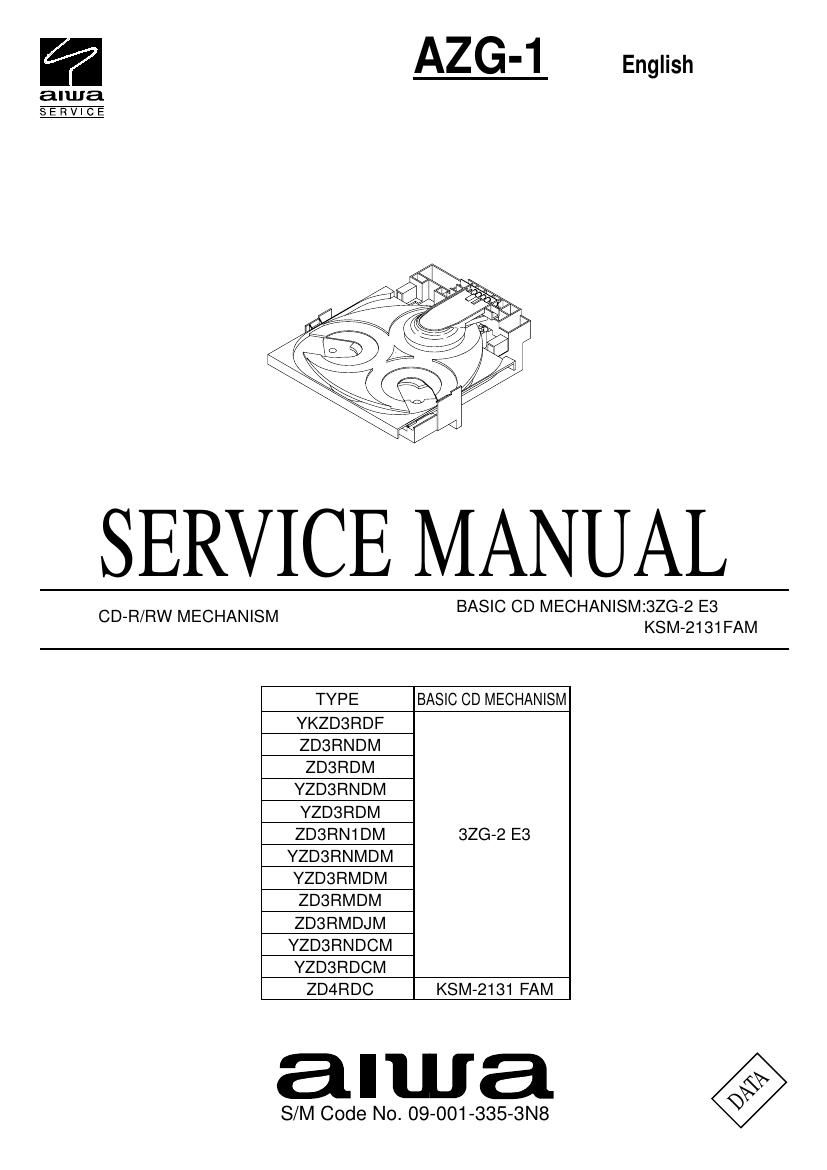

Aiwa AZG 1 Service Manual

This is the 20 pages manual for Aiwa AZG 1 Service Manual.
Read or download the pdf for free. If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.

Page: 1 / 20
left right
Aiwa AZG 1 Service Manual

Extracted text from Aiwa AZG 1 Service Manual (Ocr-read)


Page 2

PROTECTION OF EYES FROM LASER BEAM DURING SERVICING

This set employs laser. Therefore, he sure to follow carefully the
instructions below when servicing.

WARNING!

WHEN SERVICING, DO NOT APPROACH THE LASER EXIT
WITH THE EYE TOO CLOSELY. IN CASE IT IS NECESSARY TO
CONFIRM LASER BEAM EMISSION. BE SURE TO OBSERVE
FROM A DISTANCE OF MORE THAN 30cm FROM THE
SURFACE OF THE OBJECTIVE LENS ON THE OPTICAL
PICK-UP BLOCK.

I Caution: Invisible laser radiation when
open and interlocks defeated avoid expo—
sure to beam.

I Advarsel:Usynling laserstaling ved abning,
nar sikkerhedsafbrydere er ude at funktion.
Undga udsattelse for straling.

VAROITUS!

Laiteen Kayttaminen muulla kuin "ssa kayttoohjeessa mainit-
ulla tavalla saattaa altistaa kayt-tajan turvallisuusluokan 1 ylit-
tavalle nakymattomalle lasersateilylle.

VARNING!

Om apparaten anvands pa annat satt an vad som specificeras i
denna bruksanvising, kan anvandaren utsattas for osynling
laserstralning, som overskrider gransen for laserklass 1.

Precaution to replace Optical block
(KSS—213F)

Body or clothes electrostatic potential could ruin
laser diode in the optical block. Be sure ground
body and workbench, and use care the clothes
do not touch the diode.

1) After the connection, remove solder shown in
the right figure.

CAUTION

Use of controls or adjustments or performance of procedures
other than those specified herein may result in hazardous
radiation exposure.

ATTENTION

L'utilisation de commandos, régiages on procedures autres que
ceux spe’cifiés peut entrainer une dangereuse exposition aux
radiations.

ADVARSEL!
Usynlig laserstaling ved abning, nar sikkerhedsafbrydereer ude
af funktion. Undga udsaettelse for straling.

This Compact Disc player is classified as a CLASS 1 LASER
product.
The CLASS 1 LASER PRODUCT label is located on the rear
exterior.

CLASS 1 LASER PRODUCT
KLASSE 1 LASER PRODUKT

LUOKAN 1 LASER LAITE
KLASS 1 LASER APPARAT

PICK-UP Assy P.C,B

Solder
